4 buttons button bits 36mm 32mm rock drill bits

Click on the image to view the original image

Product：	views：84 buttons button bits 36mm 32mm rock drill bits
Branch：	LH
Type：	Core Drill Bit
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:46

Product Details

Product Introduction

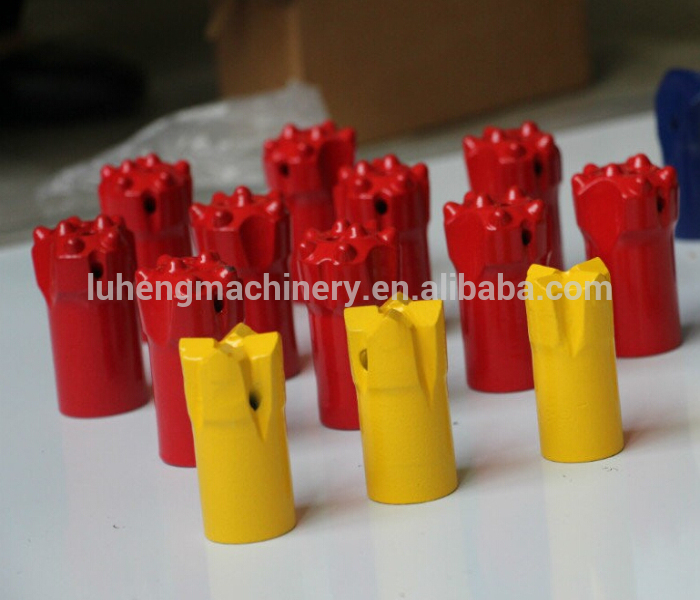

1.With carbide buttons hot pressed on bits bodies, Tapered Button Bits have a very good drilling performance and long life time. Different diameters and taper degrees are available to suit different

applications in mining, quarrying etc. We can supply long skirt and short skirt Tapered Button Bits.

2.Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much

longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the

users.

3.Tapered equipment affords drillers the ability to change drilling bits whilst still using the same

drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper

sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will

prevent the bit from spinning.

4 • Suitable for small hole range

• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

Technology Parameters

Specification of mining chisel drilling bit:

Description	Diameter	Length	Weight
Taper Angle a=4°, 6°, 7°, 11°, 12° Socket inside Diameter. d=15, 19, 22, 25	mm	mm	kg
	20	65	0.15
	22	65	0.15
	25	69	0.15
	28	60	0.2
	30	55 88	0.2
	32	55 64 71 80	0.25
	34	71 80	0.29
	36	74	0.35
	38	74	0.4
	40	74	0.42
	42	74	0.42
	45	74	0.42

Cross Type Bit, 7 ° , 11° , 12°
	Length (mm)	Chisel Size (H x W) mm	Weight (Kg)
1	30	12x12x8	0.29
2	32	12x12x8	0.31
3	33	12x12x8	0.33
4	34	12x12x8	0.34
5	35	12x12x8	0.36
6	36	13x12x8	0.37
7	38	14x12x8	0.43
8	40	15x12x8	0.47
9	41	15x12x8	0.49
10	42	15x12x8	0.51
11	43	15x12x8	0.53
12	45	17x14x8	0.58
13	48	17x14x8	0.67
14	50	19x14x8	0.72
15	55	20x16x10	0.92
16	60	20x16x10	1.19
