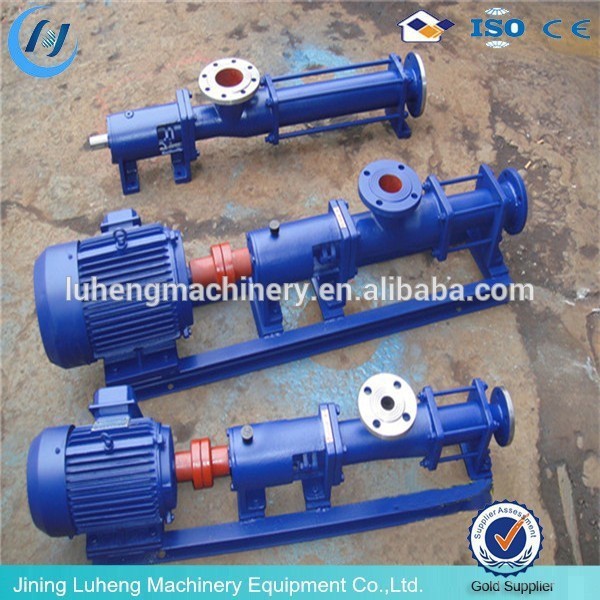

Cheap Price Large Capacity Multifunctional G Series Micro Single Screw Pump
Hoizontal type screw pump
Product Introduction
Three Screw Pump Application
It applies to deliver lubricating medium,such as oil ,bitumen, with the viscosity of 3-760cSt at temperature below 350°C
The pump’s working pressure range from 0.6Mpa to 2.5Mpa
Flow rate range from 0.6m3 /h to123 m3 /h.
The are mainly suited to fuel delivering, hydraulic engineering, shiping engineering, petrochemical and other industry fields.
Standar seal:Mechanical seal,packing seal is available
Direction:CW seem from motor side
Three Screw Pump Feature
(1) Medium is delivered continuously without agitation and pulsation.
(2) Small vibration and low noise.
(3) High pressure and high efficiency.
(4) Simple structure and easy assemble
(5) Small volume and light weight
(6) Wearable and long life
Technology Parameters
| Working Principle: | Three Screw (One main, two driven screws) |
| Main applications: | Heavy Oil, bitumen |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 200°C(392°F)/350°C(662°F),Heat insulation |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 2.5X103C.S.T/3X106C.S.T(Heat insulation) |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 200mm(8inch)-in/150mm(6inch)-out |
| Maximum discharge-side pressure: | 6MPa(60bar) |
| Flow rate range: | 0.2-94m3/h(0.88-413.6US.GPM) |

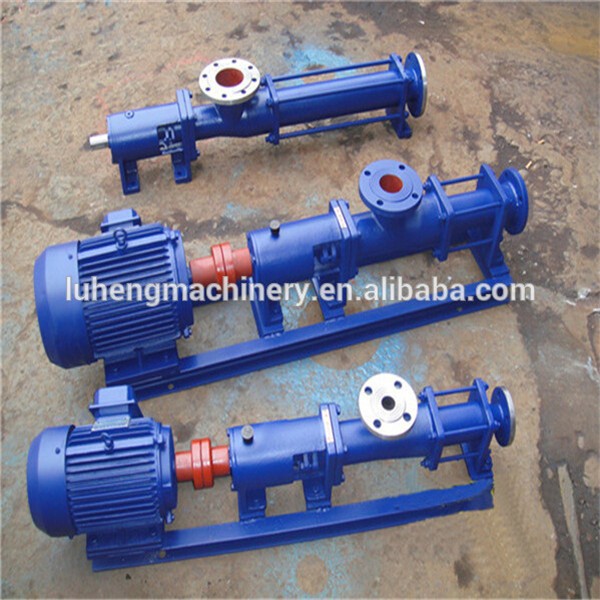

The real details photo
