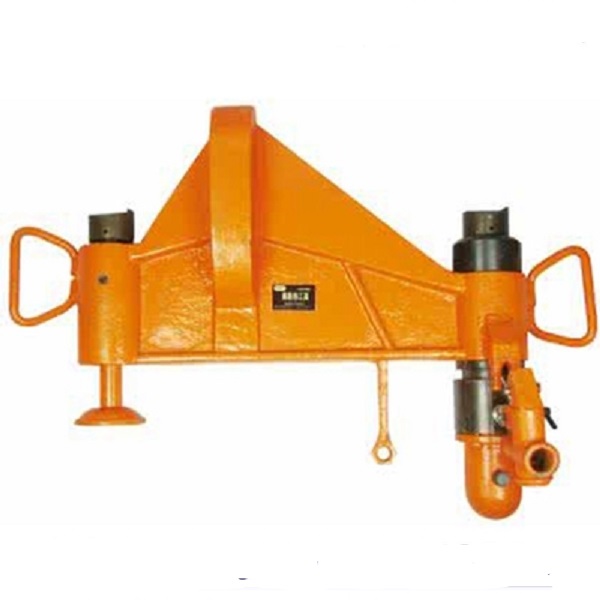

KWCY-300/600 Reasonable Priced Hydraulic Rail Bending Machine
Product Introduction
Hydraulic bend machine is a dedicated to laying railway line in tunnel mining slope level elevation changes at the scene of the track-laying for below 50 kg/m or light rail vertical bending or adjustment. Hydraulic rail bending machine designed by the principle of hydraulic transmission and leverage, using static pressure on curved track rail horizontal and vertical curve or straight rail operations.
Technology Parameters
| model | KWPY-300 | KWPY-600 |
| range of application | 18 to 24 kg/m | 30-50 kg/m |
| largest straight rail capacity | 56 tons of force | 75 tons of force |
| Hydraulic oil pressure rating system | 660 kg/cm2 | 660 kg/cm2 |
| Plunger pump diameter* stroke | 16 mm x35 mm | 16 mm x 35 mm |
Diameter of oil tank | 60mm | 70mm |
| Piston stroke | 70mm | 70mm |
| Handle effect torque | 480 Newton. M | 480 Newton. M |
The real details photo
