high quality Gas Pressure Welding Machine for Railway made in China
Best energy of Gas Pressure Welding Machine for Railway made in China
Product Introduction
Rail movable air pressure welding equipment is mainly used in rail welding, the equipment for the holding type push convex, crimping machine for the rail bottom position, guarantee the rail head flat laymen, the machine equipped with upsetting control valves, pressure reducing delay operation possible. Compared with similar products, the equipment with unique design, reasonable design, simple operation, etc. Technology Parameters
1.press | ||
max. working stroke | 100mm | |
max.rated working pressure | 35Mpa | |
max. working pressure | 40Mpa | |
deburing unit max.working stroke | 120mm | |
deburring unit max.working pressure | 45MPa | |
deburring unit max.deburring force | 452kN | |
press weight | 230kg | |
press dimention | 1320*635*330mm | |
2. hydraulic pump station | ||
motor voltage | 380V | |
motor rpm | 1440r/min | |
pump flow | ≥4L/min | |
oil tank capacity | 20L | |

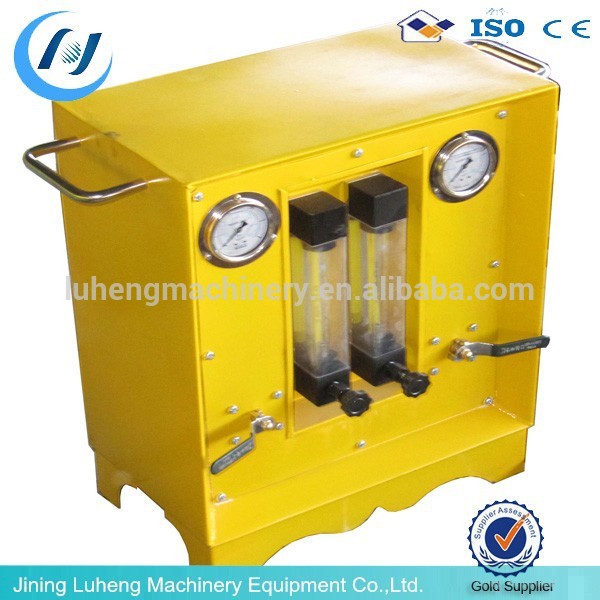

3. water pump | ||
type | YSB(AOB)-25 | |
voltage | 380V | |
flow | 25L/min | |

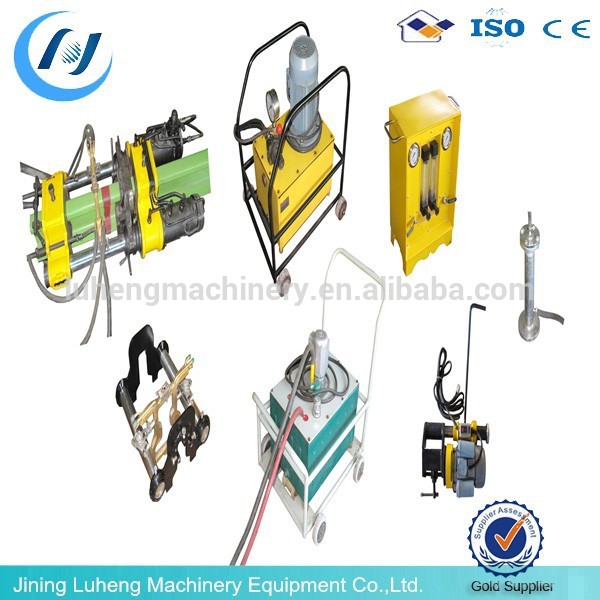

The real details photo
