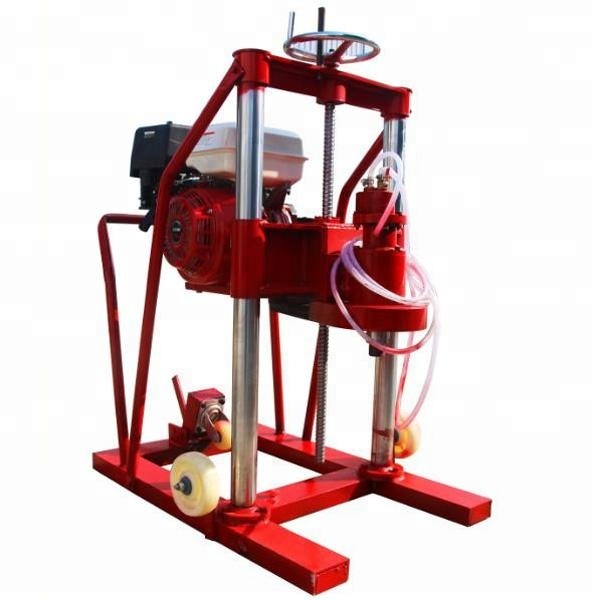

Factory price Vertical Concrete Core Drilling/stone drilling machine
a. Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials.
b. The machine is suitable for core samples of size upto 200mm diameter
c. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in
height and penetration assembly.
d. A suitable diesel engine is fitted in the machine with cooling arrangement with water.
e. It has multi-function such as core drilling, cutting and drilling the concrete samples.
-Use imported gasoline engine, drive conveniently, run reliably, operate simply
-No need electric power
-equipped with man-made PCD thin drilling bit
-Boring and sampling size accurately
-The surface is smotth after boring, don"t damage the drill materials
| Model | LH-20 |
| Max boring coring diameter | 200mm |
| Max boring coring depth | 400mm |
| Drive: | gasoline engine |
| Motor Power | 5.5P |
| Main shift seed | 900-1300/min |
| Boring direction | vertical down |
| Feeding mode | manual |
| Drill type | man-made PCD thin drilling bit |
| Machine weight | 130kg |
| Exterior dimension | 1050x780x1250mm |
