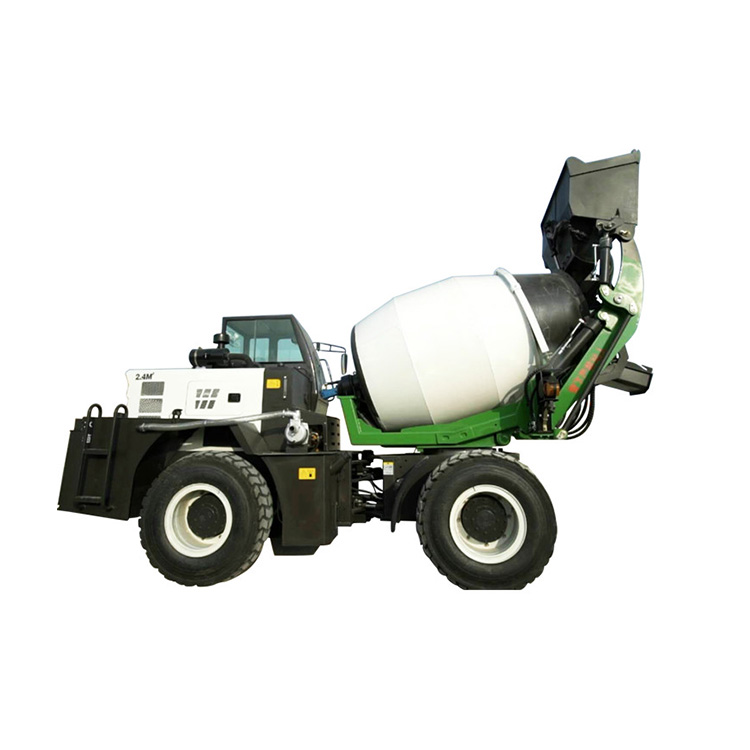

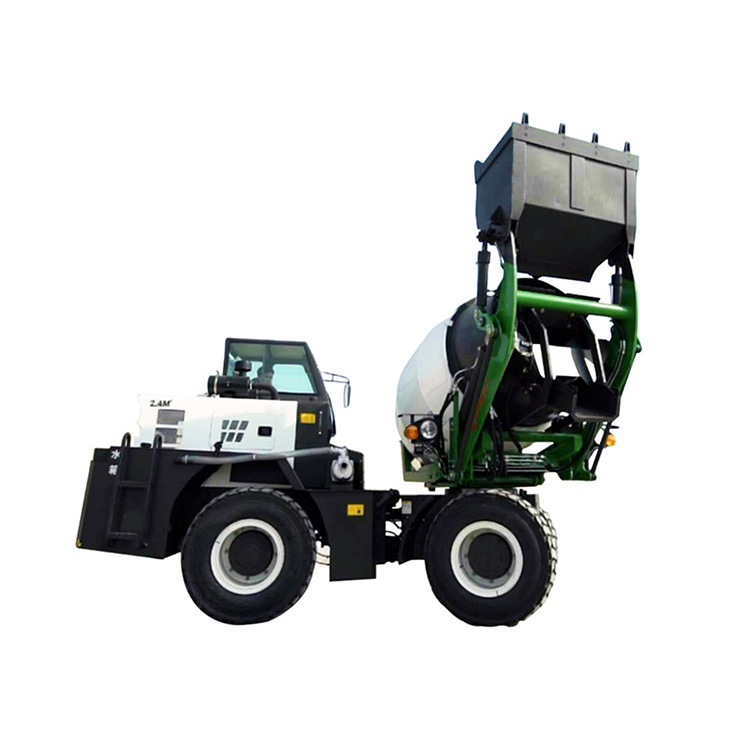

Wholesale China Factory Small Automatic Self Loading Concrete Mixer
Wholesale China Factory Small Automatic Self Loading Concrete Mixer
Wholesale China Factory Small Automatic Self Loading Concrete Mixer
1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban
construction ,tunne l ,airport ,seaport ,high-speed rail site and so on.
2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability3.Small capacity
mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,
improve thedriving safety.
3. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.
4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.
Wholesale China Factory Small Automatic Self Loading Concrete Mixer
Actual mixing volume | 1.2m3 |
Geometrical capacity | 1.4m3 |
Angle of inclination | 16o |
Rotaring speed | 0-14 r/min |
Mixing drum blade | Two sets of spiral blades.and |
Slump of concrete | 70-260mm |
Pump Model | CBGV-4025 |
Motor Model | BMSS-250 |
Reduction gear ratio | 1:10 |
Drove type | 4X4 |
Operating weight | 4580kg |
Max.loading weight | 2800kg |
Max.total weight | 7380kg |
Overall dimensions | 6100*1850*3000mm |
Gradeability | 26% |
Tire | 23.5/70-16 |
Minimum turning radius | 5000mm |
Rated power | 55KW/2400 78KW/2400KW/min |
Wholesale China Factory Small Automatic Self Loading Concrete Mixer
Wholesale China Factory Small Automatic Self Loading Concrete Mixer
Wholesale China Factory Small Automatic Self Loading Concrete Mixer
