Click on the image to view the original image
- Condition:
- New
- Type:
- Core Drilling Rig
- Power Type:
- Gasoline
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Coal
- Voltage:
- 220V/380V
- Dimension(L*W*H):
- 810*380*280mm
- Weight:
- 27kg
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support, No after-sales service
- Product name:
- yn27 Gasoline power rock drill / gasoline concrete road breaker
- Application:
- hard rock drill
- Drilling depth:
- 6m
- Drilling diameter:
- 26-46mm
- Engine load speed:
- ≥2450r/min
- Fuel tank capacity:
- ≥1.14L
- Power::
- 15kw
- Borehole speed:
- ≥250mm/min
- Drill rod idling speed:
- ≥250mm/min
- Spark plug electrode gap:
- 0.5~0.6mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 81X38X28 cm
- Single gross weight:
- 28.0 kg
- Package Type:
- Wooden case for yn27 Gasoline power rock drill / gasoline concrete road breaker
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 >10 Est. Time(days) 15 To be negotiated
yn27 Gasoline power rock drill / gasoline concrete road breaker

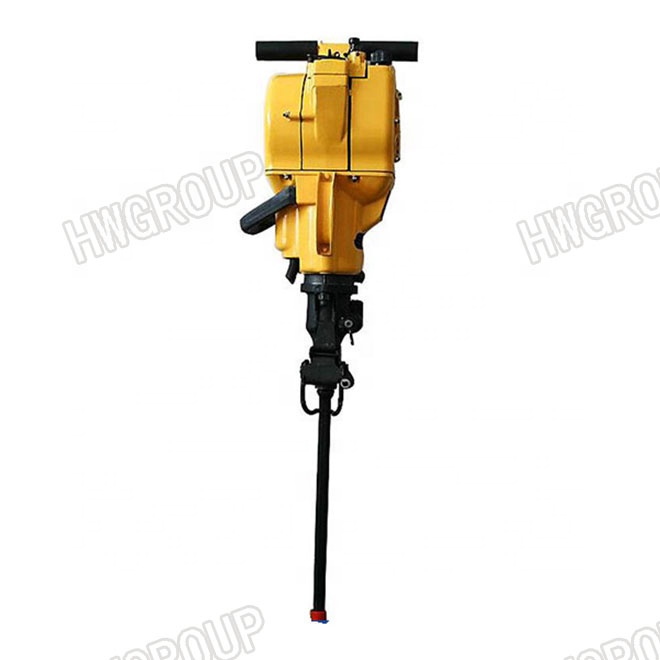

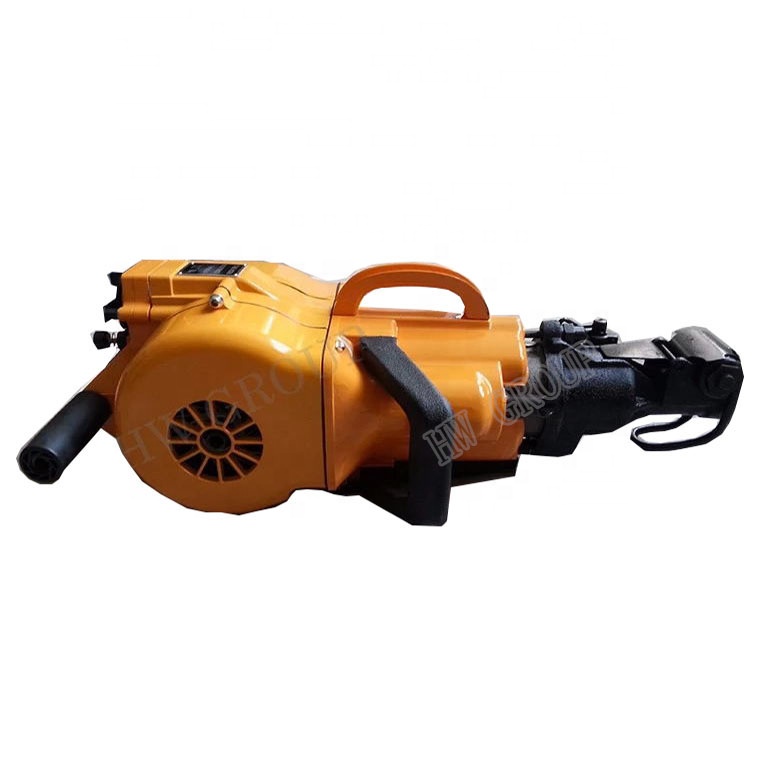

YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.
Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.
Application for yn27 Gasoline power rock drill / gasoline concrete road breaker:
With turning the swing arm to running-or-stop rotation plumbum, the machine can be converted into a breaker or a hammer, for breaking, digging, splitting or ramming. The machine is suited to build of bridge, road, power station, geological explortation etc.
Feature yn27 Gasoline power rock drill / gasoline concrete road breaker:
YN27C rock drill is a hand-rock drilling tool which integrates small gasoline engine,compressor and rock drill.
It is easy to be carried along,It is stuited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.
yn27 Gasoline power rock drill / gasoline concrete road breaker
Thishand held rock drill rig YN27C drilling machine with gasoline engine can use tapered chisel bits/ Tapered cross bits/Tapered button bits, the diameters such as 32mm, 34mm,36mm, 38mm,40mm, 42mm.
yn27 Gasoline power rock drill / gasoline concrete road breaker
rock drill rod
yn27 Gasoline power rock drill / gasoline concrete road breaker
Some spare parts will send to you with the yn27c rock drill together,this just for free.
yn27 Gasoline power rock drill / gasoline concrete road breaker:
We will send the gasoline rock drill machine picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .
Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
yn27 Gasoline power rock drill / gasoline concrete road breaker:
1. Delivery by sea :After it was delivered to the seaport . We will tell you the shipping time and arrival time . Finally, we"ll send you all original documents by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .
3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of roack drill. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
yn27 Gasoline power rock drill / gasoline concrete road breaker:
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
