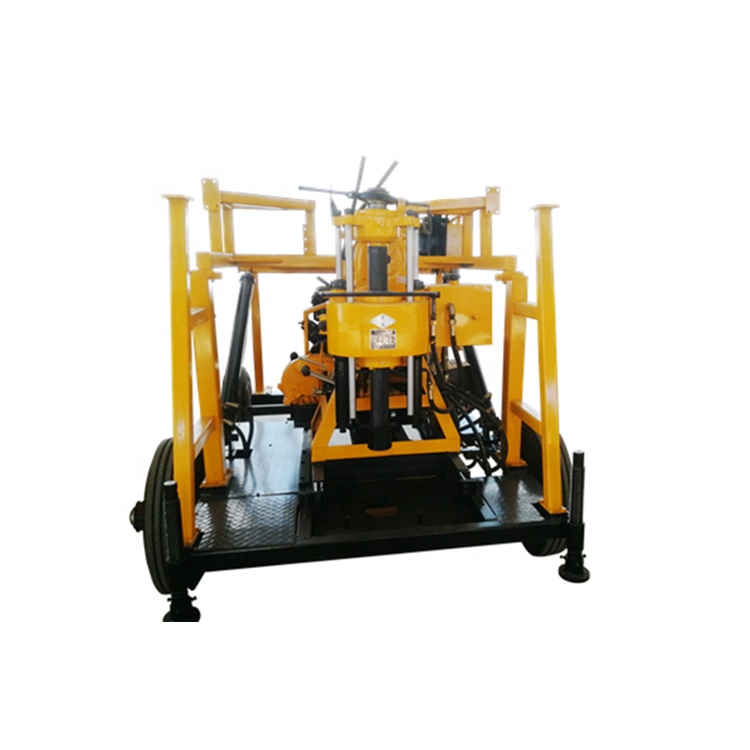

trailer borehole drilling rig machine for sale

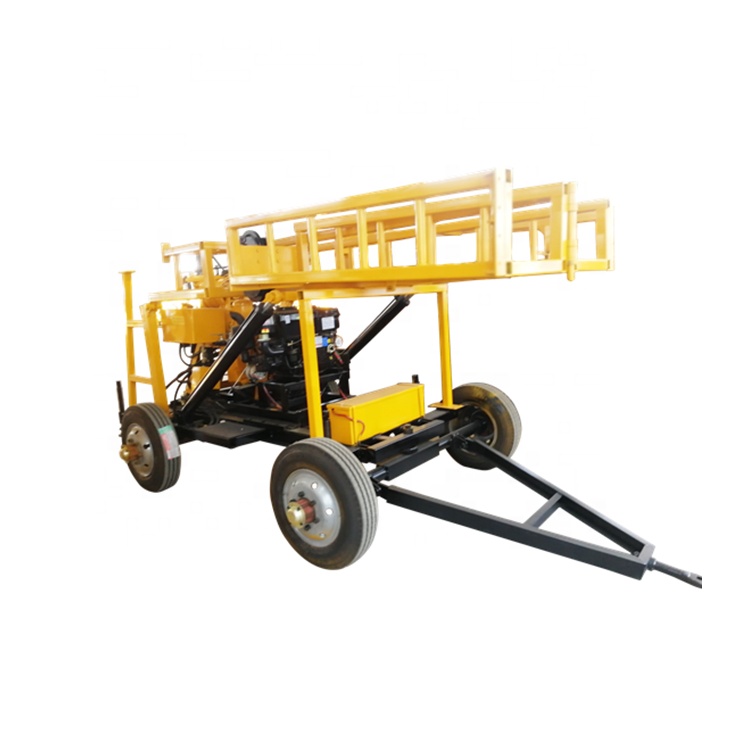

trailer borehole drilling rig machine for sale

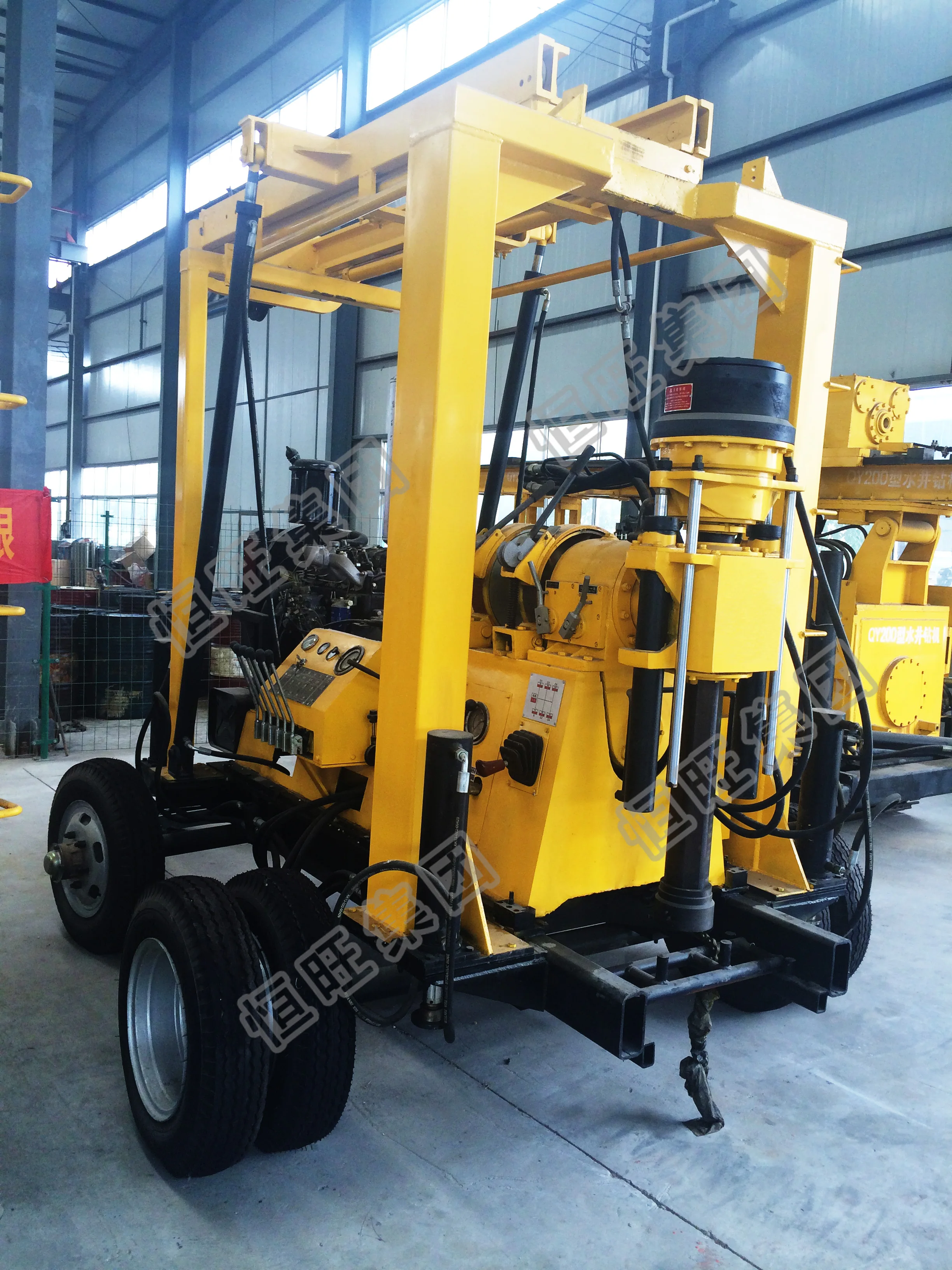

trailer borehole drilling rig machine for sale
1,The drilling rig adopts automatic telescopic drilling tower, be supported with two high strength oil cylinder. One set of hydraulic valve controls drilling tower’s pitching. When you operate, it is saving time, safe and reliable, the maximum to create benefits for the user.
2, wheels trailer is lighter and can reduce the noise of the vehicle running mechanism, reduce car
body vibration and fuel consumption. It can drive in the city road.
3, The chassis comes with its own screw leg to level drilling rig. It can be modified hydraulic high leg for auxiliary support.
4, By using 24 v electric starting diesel engine to reduce labors’ intensity of operators especially in winter. When diesel engine start difficulty, it show significantly more advantages.
5,The machine is matched with Bw - 160 mud pump with high flow rate,high pressure, easy to maintenance. And spare parts is convenient to buy all over the country.

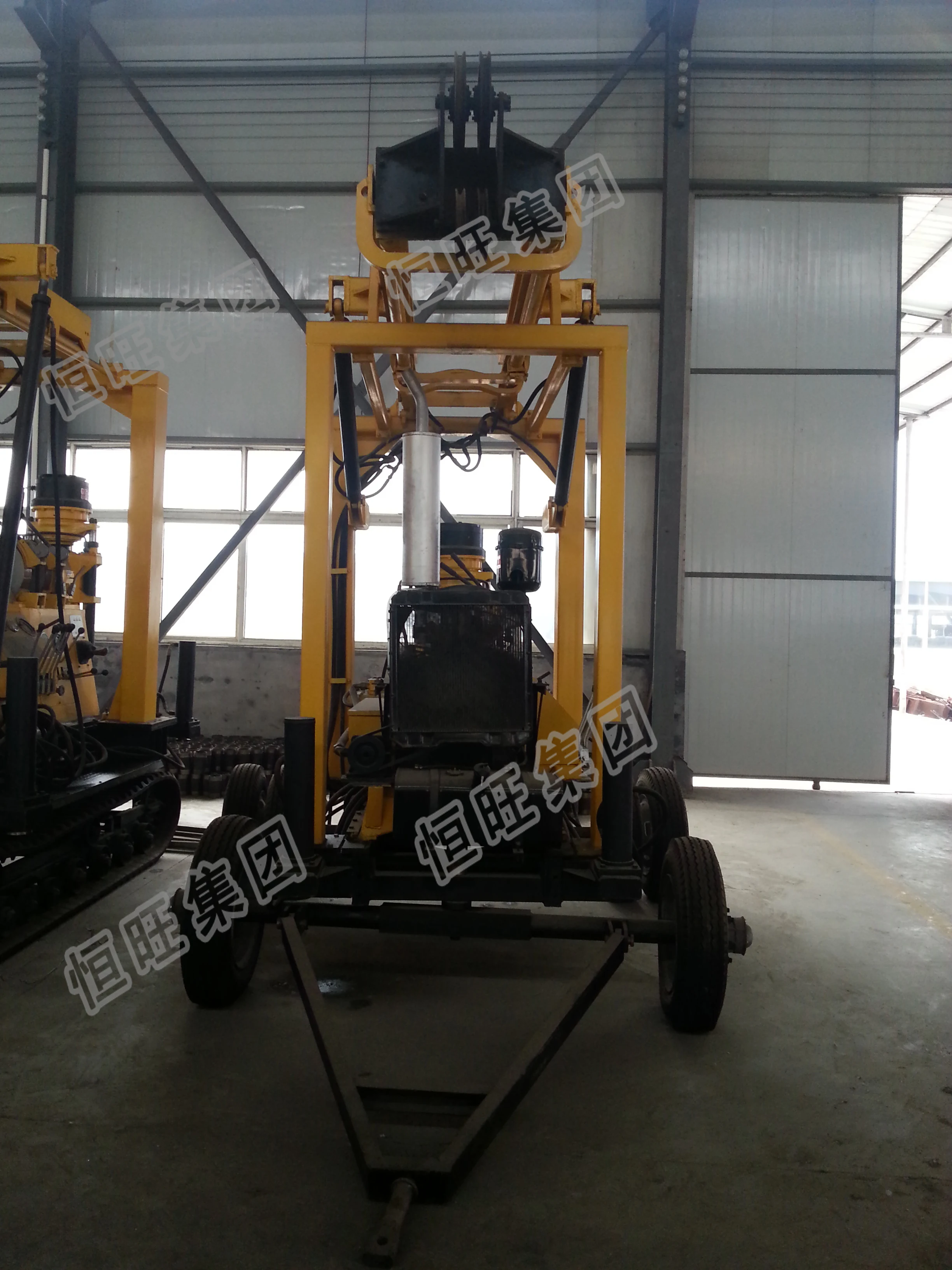

trailer borehole drilling rig machine for sale
| Trailer Mounted hydraulic drilling rig specification | |||||
| Machine parameter | Model | HW-160T | HW-190T | HW-230T | XY-3T |
| Drilling depth(m) | 160 | 190 | 230 | 600 | |
| Open hole dia. (mm) | 500,220 | 500,220 | 500,273 | 325 | |
| End hole dia. (mm) | 75 | 75 | 75 | 75 | |
| Drill rod dia. (mm) | 42,50 | 42,50 | 42,50,60 | 50,60,73 | |
| drill angle (° ) | 90-75 | 90-75 | 90-75 | 90-75 | |
| Matching power (kW) | 13.2 | 13.2 | 15 | YUNNEI YN27/ 39 | |
| Weight without power (kg) | 3350 | 3400 | 3600 | 3600 | |
| Dimension L*W*H (m) | 3.8*1.95*2. 7 | 3. 8*1. 95*2. 7 | 3.8*1. 95*2. 7 | 2. 9*2. 56^3. 3 | |
| Spindle | Speed (r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 | 32-1057 |
| Stroke (mm) | 450 | 450 | 450 | 600 | |
| Walking chassis | Climbing angle (° ) | 20° | 20° | 20° | 20° |
| Moving speed (km/h) | 30 | 30 | 30 | 30 | |
| hydraulic landing leg valid height(mm) | 300 | 300 | 300 | 300 | |
| Drill tower | Rated load (ton) | 18 | 18 | 18 | 18 |
| Height (m) | 6.5 | 6.5 | 6.5 | 6.5 | |
| Mud pump | Flow(L/min) | 160 | 160 | 160 | |
| Max. pressure (MPa) | 1.3 | 1.3 | 1.3 | ||
| back and forth times/min | 165 | 165 | 165 | ||
| Inlet hose dia. (mm) | 51 | 51 | 51 | ||
| Outlet hose dia. (mm) | 32 | 32 | 32 | ||
| Any change of the parameters mentioned above can be made without prior notification. | |||||
