Click on the image to view the original image
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- 220V/380V
- Dimension(L*W*H):
- 2750*950*1770mm
- Weight:
- 1150KGS
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support, No after-sales service
- Product name:
- Cheap 200m bore hole portable rotary water well drill rig for sale
- Application:
- water well drilling
- Drilling depth:
- 230m
- Maximum open hole caliber:
- caliber:: 300mm
- drill inclination:
- 90°
- End hole caliber:
- 75mm
- Drill rod caliber:
- 50mm
- Drilling angle:
- 90-75
- Maximum pressure:
- 3Mpa
- Work pressure:
- 1.5Mpa
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 840X212X265 cm
- Single gross weight:
- 7.2 kg
- Package Type:
- Standard export wooden box for Cheap 200m bore hole portable rotary water well drill rig for sale
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 >5 Est. Time(days) 15 To be negotiated
Cheap 200m bore hole portable rotary water well drill rig for sale

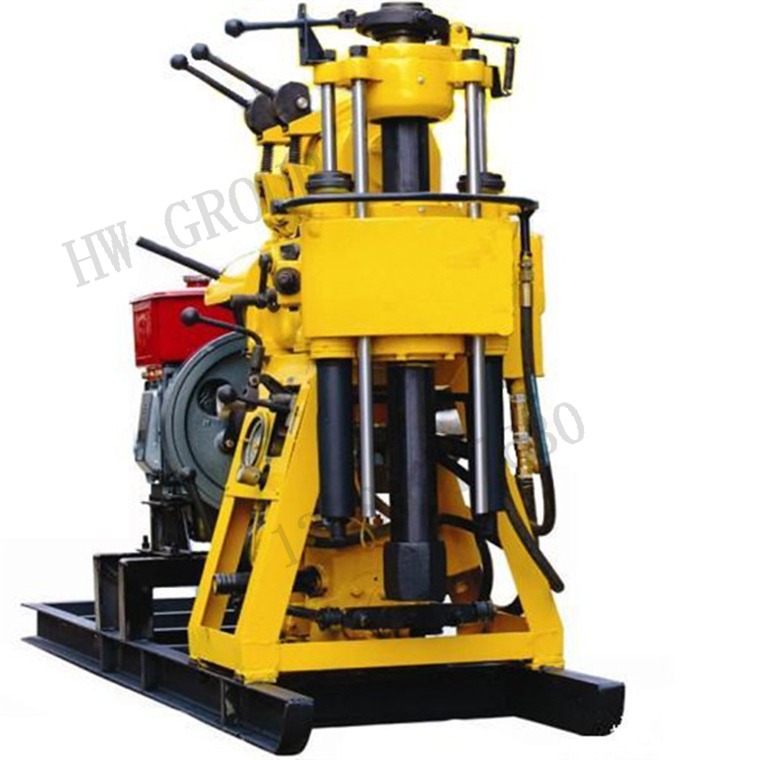

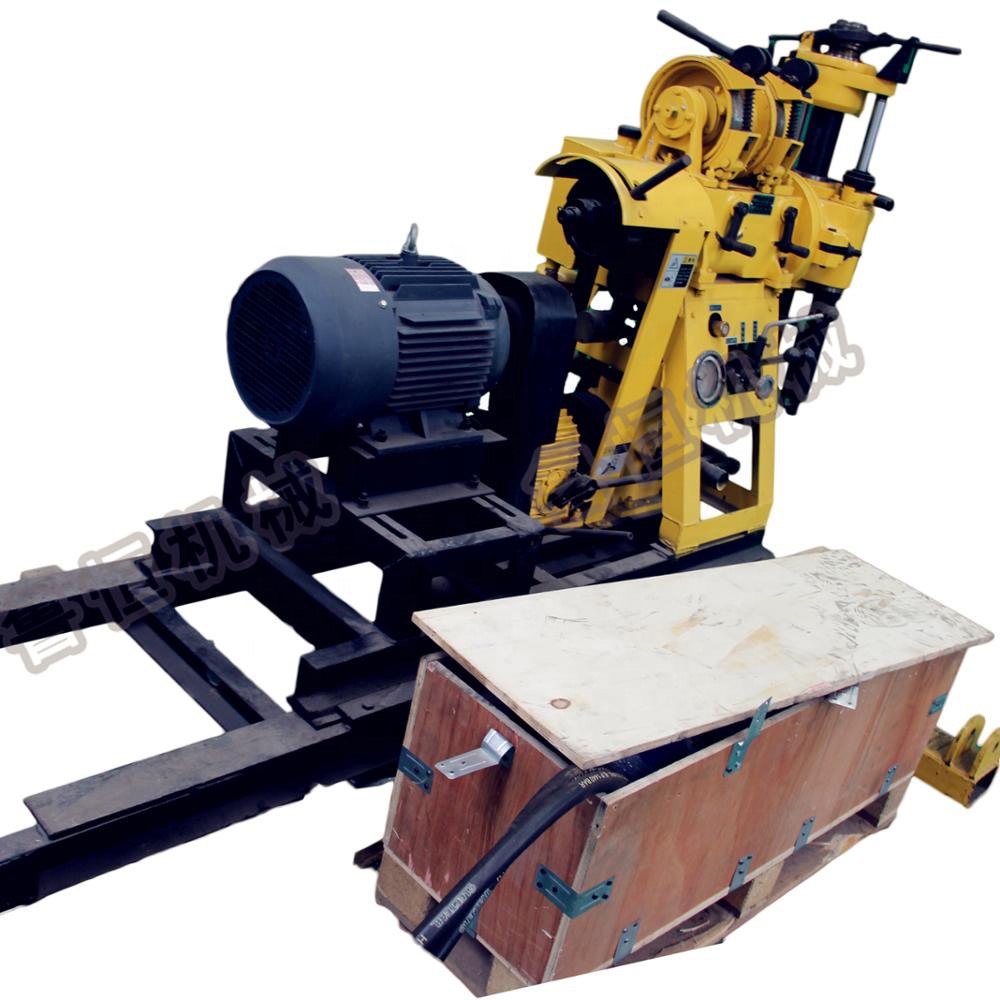

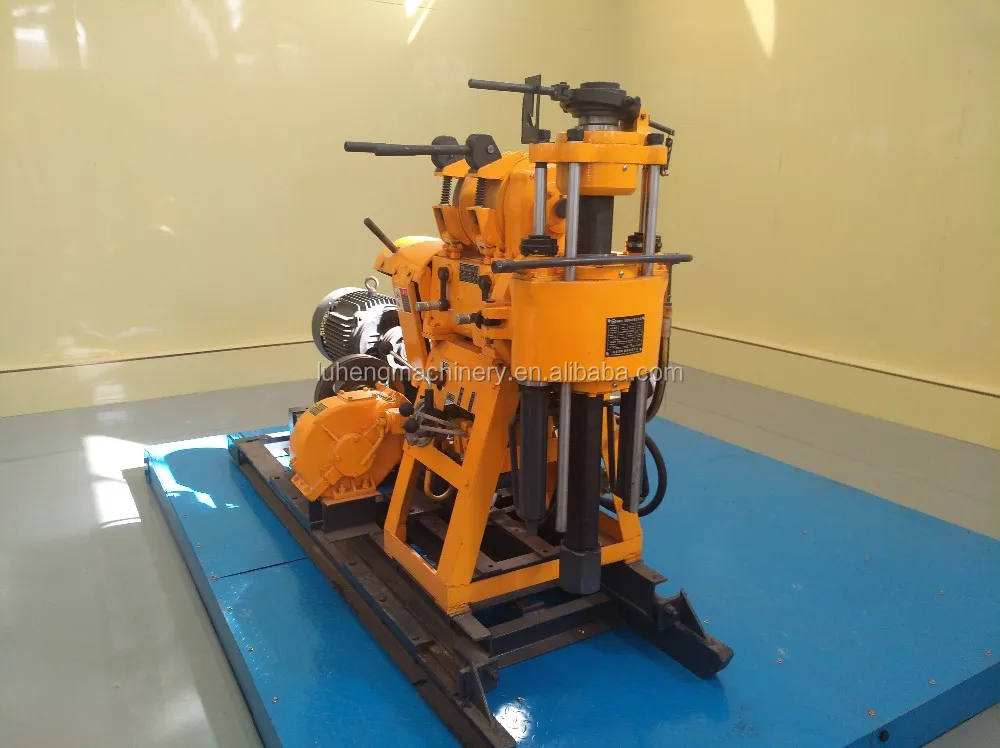

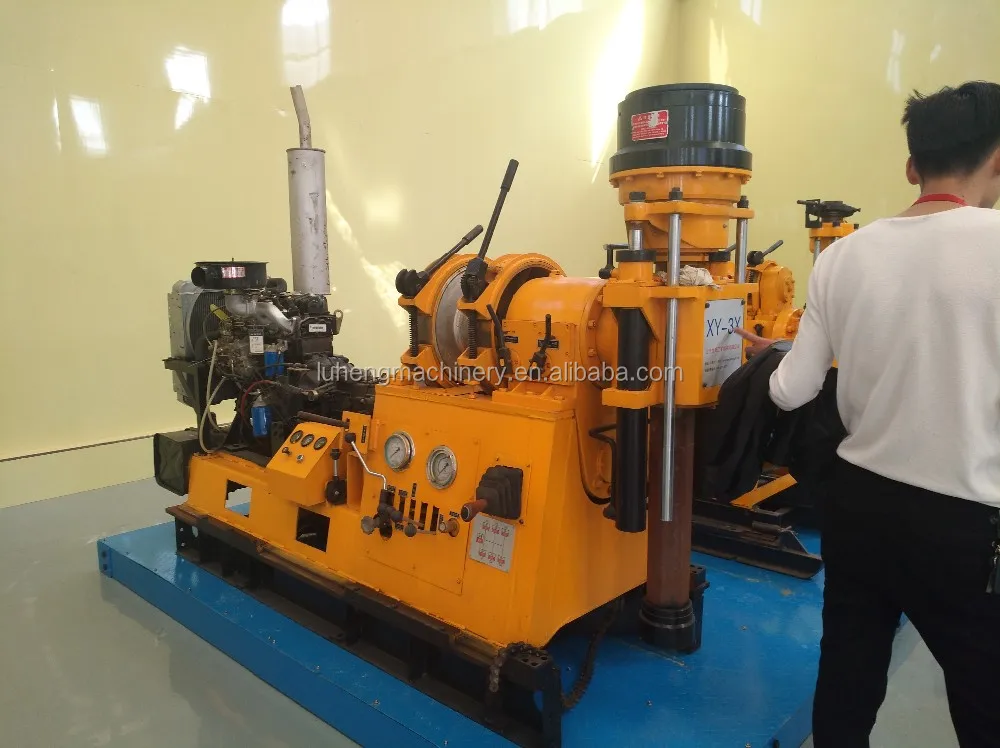

HW-230 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 230m with the opening diameter of75-400mm, trailer, crawler, and tractor chassis for choice.
a. the machine is equipped with crawler chassis device, easy to move with fast speed.
b. hydraulic oil pressure feed device, improve drilling efficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor intensity.
Specification for Cheap 200m bore hole portable rotary water well drill rig for sale
Cheap 200m bore hole portable rotary water well drill rig for sale
For pneumatic drilling rig , if customer need air compressor , it can loading full container . If not need air compressor , it can loading LCL
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of drilling rig. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
Cheap 200m bore hole portable rotary water well drill rig for sale
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
