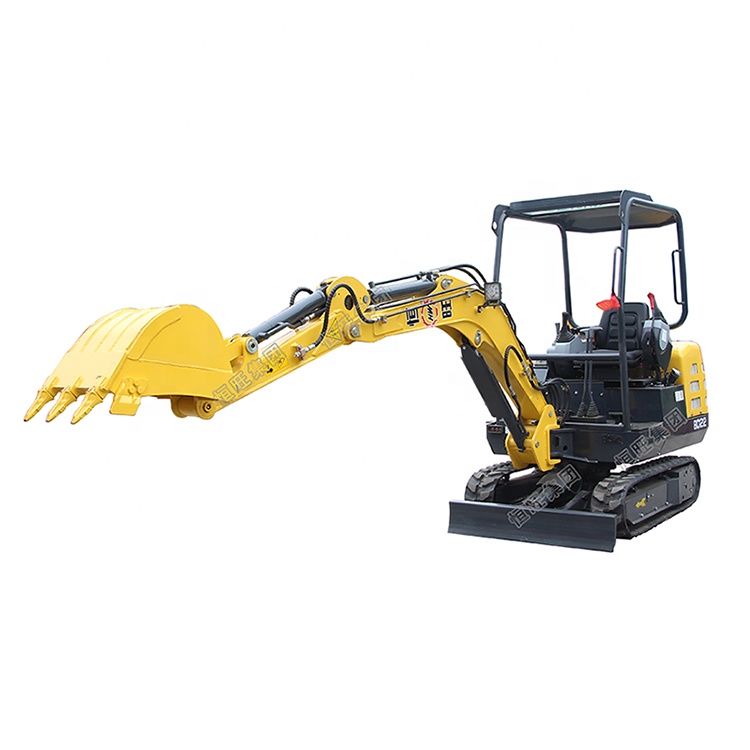

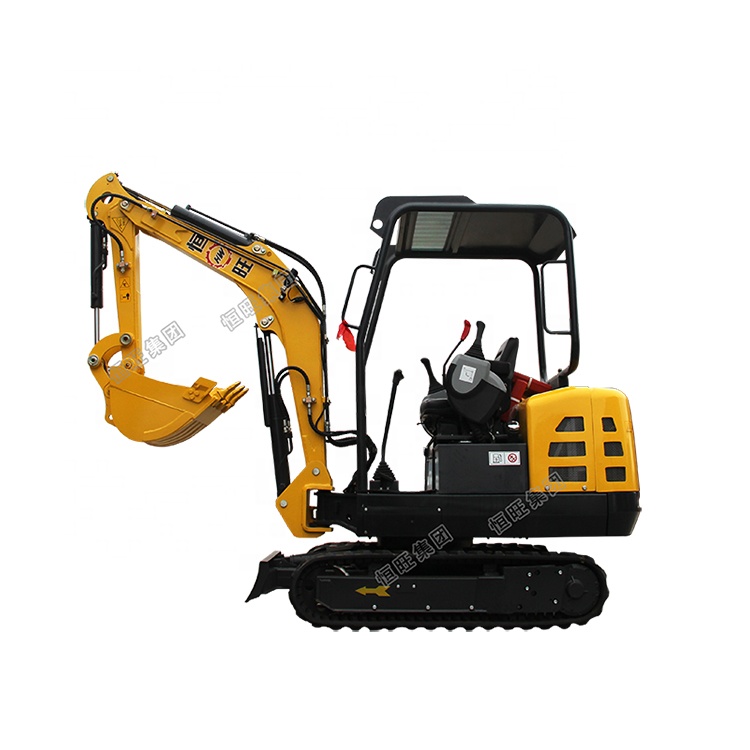

1 ton Chinese mini excavator with rubber track
1 ton Chinese mini excavator with rubber track
1 ton Chinese mini excavator with rubber track
The 1000kg small excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair. Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users. Wide applicability. The small digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities. Small size and special design make it possible to work in an environment where large excavators cannot be constructed.
1 ton Chinese mini excavator with rubber track
| Total weight | 1000kg |
| Bucket capacity | 0.025m³ |
| Working device type | backhoe |
| Minimum radius of gyration | 1190mm |
| Maximum excavation height | 2490mm |
| Maximum excavation depth | 1400mm |
| Maximum discharge height | 3300mm |
| Engine | Capacity |
| Engine Rated output power | 8.6 kw |
| Maximum torque | 2880 r/min |
| Maximum travel speed | 2 km/h |
| Max. travel speed | 25km /h |
| Maximum gradeability | 25° |
| Maximum Digging Force | 6.5 kn |
| Maximum depth cleaning | 345mm |
| The maximum height of land clearing | 255mm |
| Pump type | Gear pump |
| Working pressure | 16Mpa |
| Flow | 21.6 L/min |
| Hydraulic oil capacity | 17.4 L |
| Engine oil capacity | 1.65L |
| Fuel tank capacity | 7.35 L |
1 ton Chinese mini excavator with rubber track
1 ton Chinese mini excavator with rubber track
1 ton Chinese mini excavator with rubber track
1 ton Chinese mini excavator with rubber track
Please contact me for more information.
