Packing details: Carton box with iron frame inside
Packing size: 57(L)X46(W)X70(H)
Packing weight: 90kgs
Overview
Quick Details
- Power(W):
- 5.5HP
- Dimension(L*W*H):
- 580*460*260mm
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support
- Applicable Industries:
- Construction works
- Condition:
- New
- Application:
- pavement compact
- Power Type:
- Gasoline
- Brand Name:
- plate compactor
- Place of Origin:
- Shandong, China
- Certification:
- ISO
- Machine Type:
- Plate Compactor
- Engine Brand:
- HONDA
- UNIQUE SELLING POINT:
- High operating efficiency
- Product name:
- Vibratory Plate Compactor
- Engine:
- GX160
- Power:
- 5.5HP
- working area:
- 430*550mm
- walking mode:
- One-way
- vibrating force:
- 20KN
- Frequency:
- 70HZ
- Grade ability:
- 25%
- starting mode:
- hand
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 60X50X70 cm
- Single gross weight:
- 65.0 kg
- Package Type:
- wooden case or iron frame for Vibratory Plate Compactor
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Unit) 1 - 10 >10 Est. Time(days) 5 To be negotiated
Product Description
electric plate compactor
gasoline plate compactor
diesel vibrating tamping compactor
Featurers for small reversible vibrating plate compactor:
Plate compactor source: electric, gasoline or diesel all ok.
*Foldable handle for easy transportation and stock. (straight handle is also available)
*Complete sealed belt cover to prevent sand and soil in.
*Built-in wheels for easy transport.
*Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate
*Throttle control for easy holding working speed. (Throttle control is available as optional)
*Heavy-duty shock mounts reduce vibration to the upper engine and handle.
*Rubber & canvas mat for brick paving compaction as option.
*Lifting Hook is available as optional
*Complete sealed belt cover to prevent sand and soil in.
*Built-in wheels for easy transport.
*Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate
*Throttle control for easy holding working speed. (Throttle control is available as optional)
*Heavy-duty shock mounts reduce vibration to the upper engine and handle.
*Rubber & canvas mat for brick paving compaction as option.
*Lifting Hook is available as optional
Specification for vibrating plate compactor | ||||
Model | HW-60 | HW-90 | ||
Engine brand | HONGDA GX160 | HONGDA GX160 | ||
Power | 5.5 HP | 5.5 HP | ||
Weight | 62kg | 94kg | ||
Frequency | 5600vpm | 5500vpm | ||
Exciting force | 10.5KN | 13KN | ||
Centrifugal deep | 20cm | 30cm | ||
Speed | 4cm/s | 4cm/s | ||
Work efficiency | 450m³/hr | 660m³/hr | ||
Plate size | 50x36cm | 53x50cm | ||
Package | 80*40*108cm | 85*50*110cm | ||

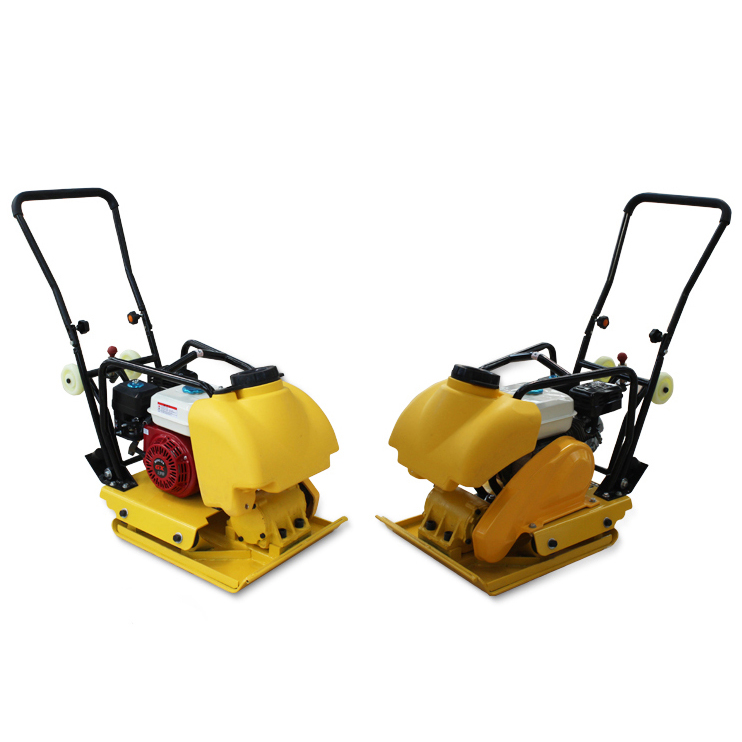

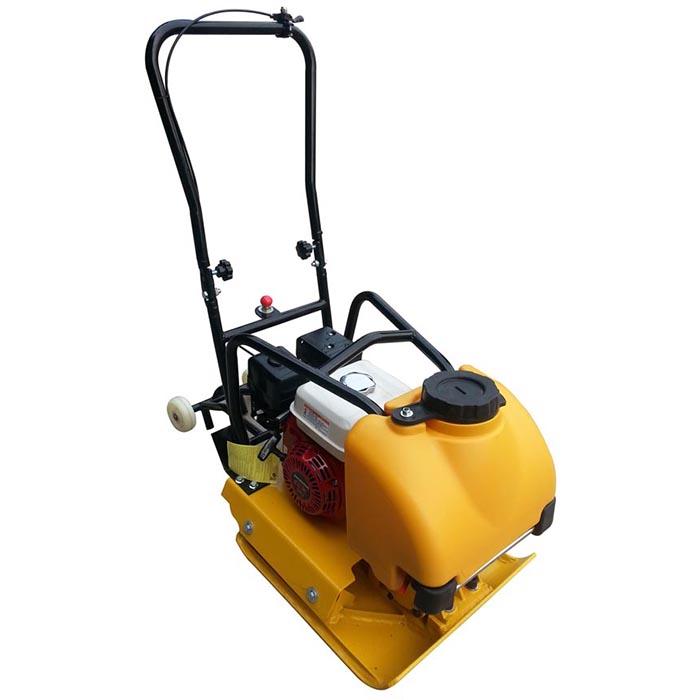

Detailed Images
electric plate compactor
gasoline plate compactor
diesel vibrating tamping compactor
Packing & Delivery
electric plate compactor
gasoline plate compactor
diesel vibrating tamping compactor
Road plate compactor
vibratory plate compactor
Packing details: wooden case
Packing size: 76(L)X52(W)X70(H)Packing weight: 92kgs
