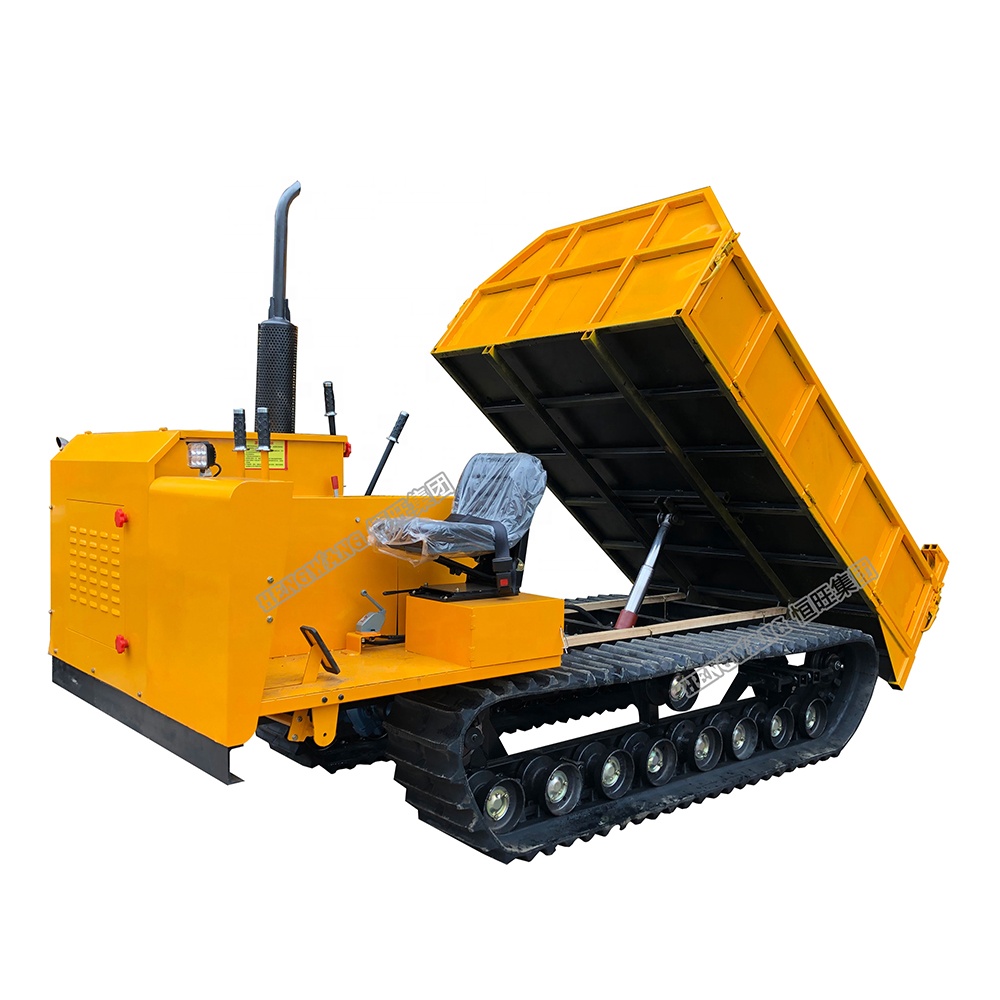

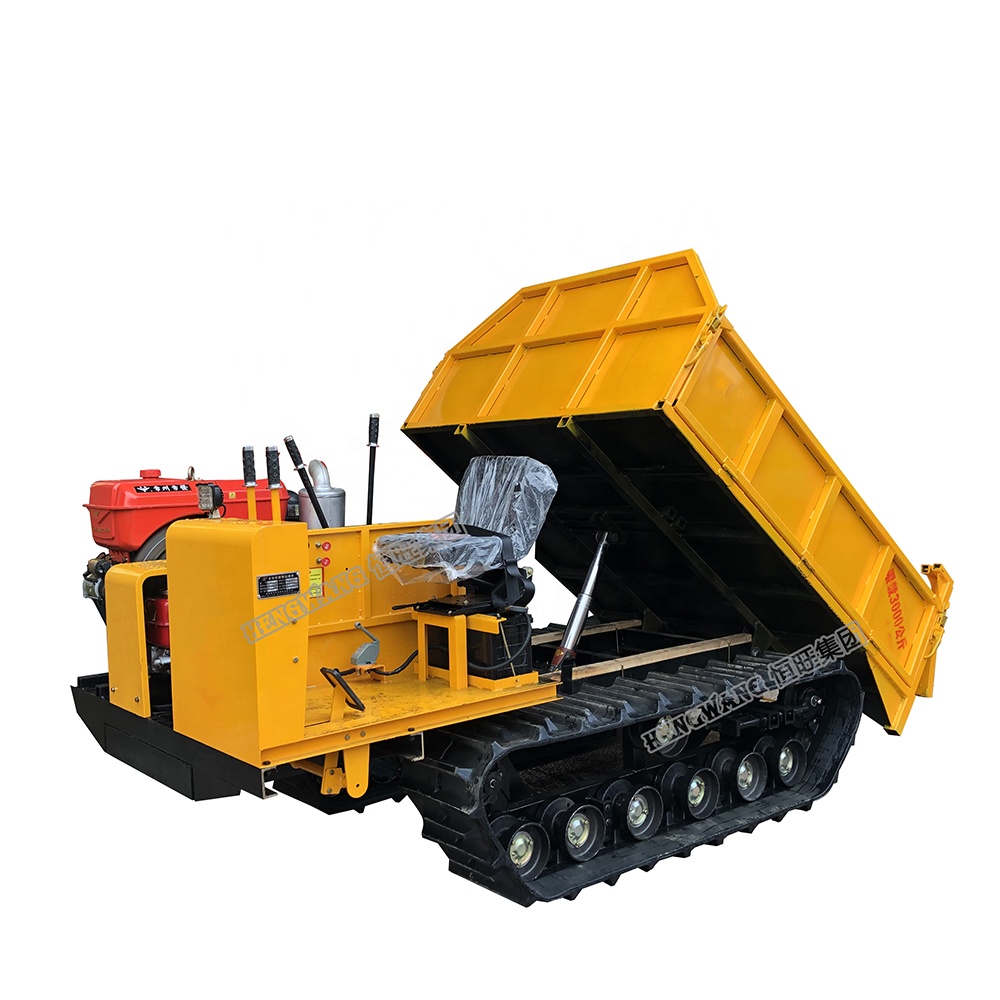

high performance rubber track transporter/carrier/dumper Electric Power Mini truck dumper
Free crawler transporter in mud, icy roads, dump design, crawler walking, motor to walk, a great deal of extended use power. Specific size can be customized according to demand. Carrying capacity is strong, climbing ability, simplicity of operator, maintenance easy.
Main Features for good quanlity crawler new garden mini dumper truck price
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
1 ton | 2ton | 3ton | 4ton | |
Total Machine Weight | 1600KG | 1900KG | 2500KG | 3000KG |
Engine power | 12HP Diesel engine | 32HP diesel engine | 45HP Diesel engine | 82HP diesel engine |
Power | 9KW | 23KW | 33KW | 60KW |
Pump model | 306 | 306 | 308 | 310 |
Diesel engine capacity | 15L | 20L | 25L | 30L |
Hydraulic volum e | 3L | 5L | 5L | 7L |
Maximum dead weight | 1000KG | 2000KG | 3000KG | 4000KG |
Maximum grade | 30 | 30 | 30 | 30 |
Track length | 4100mm | 4500mm | 4900mm | 5000mm |
Track height | 550mm | 555mm | 565mm | 575mm |
Crawler width | 350mm | 350mm | 400mm | 320mm |
Size of the truck | 1900*1600*1850mm | 2000*1600*1850mm | 2000*1650*1850mm | 2200*1750*1850mm |
Machine size | 3500*1600*1850mm | 3550*1600*1850mm | 3600*1650*1850mm | 3700*1750*1850mm |
Walking speed | 0-10km/h | 0-15km/h | 0-20km/h | 0-20km/h |
