used concrete helicopter power trowel machine honda

Click on the image to view the original image

Product：	views：4used concrete helicopter power trowel machine honda
Branch：	LH
Type：	Honda GX690,
Size：	103X103X35 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:52

Product Details

Overview

Quick Details

Power Source:: Gasoline

Power(W):: 17.925.4

Dimension(L*W*H):: 1980 X 996 X 1320MM

After-sales Service Provided:: Video technical support

Warranty:: 1 year

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: LH

Voltage:: 220V 380V

Weight:: 310 KG

Certification:: SGS,CE,ISO,IAF,CNAS

qality:: high quality

Price:: factory price

Fuel tank:: 15.5 liter

Max. speed:: 3600 rpm

Max. output kw(hp):: 17.9 (24)

Type:: Honda GX690,

Speed:: 120 - 140 rpm

Working diameter:: L1900 X W915 MM

name:: concrete trowel machine

Engine:: Air-cooled, 4-cycle, Gasoline

Packaging & Delivery

Selling Units:: Single item

Single package size:: 103X103X35 cm

Single gross weight:: 100.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	5	To be negotiated

used concrete helicopter power trowel machine honda

used concrete helicopter power trowel machine honda

Related Products

used concrete helicopter power trowel machine honda

Product Description

used concrete helicopter power trowel machine honda

1. Appearance using fluent without acute Angle design, make the operator more safety

2. The dish be made with alloy cold rolled sheet to ensure machine strong and durable

3. Machine shell adopt electrostatic coating tech, not only beautiful but also eliminate the influence of corrosion on the machine

4. adjustment Angle precisely

5. Adjustable plate diameter, applicable to different work environment, more convenient

6. superior transmission gearbox, powerful and reliable, mute, aluminum casing is easy to heat dissipation

7. Increase to improve work efficiency, more than 20% faster than traditional models

8. Equipped with oil level display table

Technology Parameter

used concrete helicopter power trowel machine honda

Model	DMGS-96		DMGS-80		DMGS-78		DMGS-65
Weight (kg)	392		310		325		295
Dimension (mm)	2540 X 1240 X 1300		1980 X 996 X 1320		1980 X 1020 X 1500		1710 X 940 X 1150
Working diameter (mm)	L2475 X W1175		L1900 X W915		L1890 X W915		L1570 X W750
Speed (rpm)	120 - 140		120 - 140		150 - 155		140
Engine	Air-cooled, 4-cycle, Gasoline
Type	Honda	Kohler	Honda	Kohler	Honda	Kohler	Honda	Kohler
	GX690	34HP	GX690	Pro25	GX690	Pro25	GX390	Pro14
Max. output kw(hp)	17.9	25.4	17.9	17.2	17.9	17.2	9.6	10.5
	(24)	(34)	(24)	(23)	(24)	(23)	(13)	(14)
Max. speed (rpm)	3600		3600		3600		3600

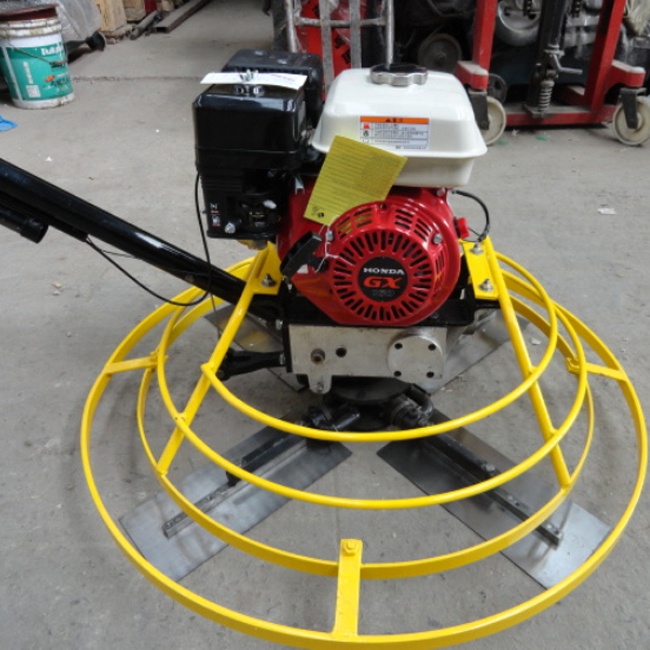

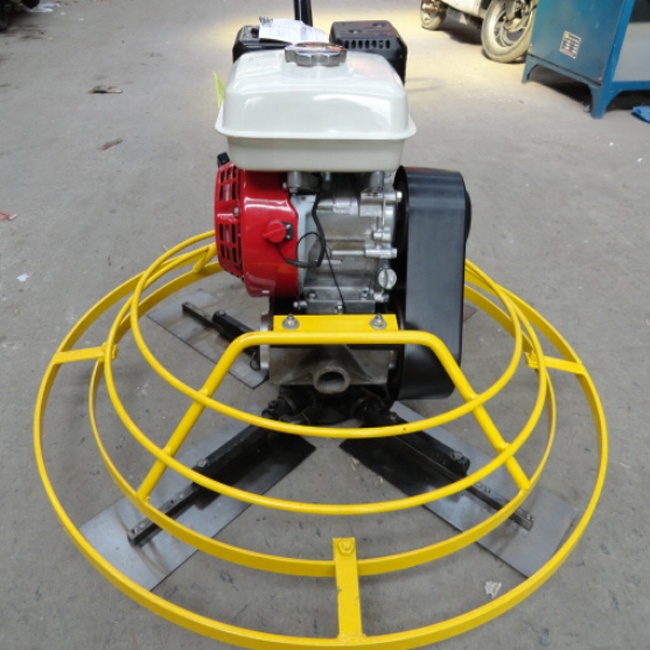

The photos
