- Machine Weight:
- 6800KG
- Dimension(Long * Breadth * High):
- 7300mm*2100mm*3000mm
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Applicable Industries:
- Farms, Home Use, Retail, Construction works
- Condition:
- New
- Brand Name:
- HW
- Place of Origin:
- Shandong, China
- Type:
- Backhoe Loader
- Moving Type:
- Wheel Loader
- Hydraulic Cylinder Brand:
- Bosch Rexroth
- Hydraulic Pump Brand:
- Bosch Rexroth
- Hydraulic Valve Brand:
- Bosch Rexroth
- Engine Brand:
- CHANGCHAI
- Max Digging Radius:
- 3705mm
- Model:
- loader digger
- Engine:
- Diesel Engine
- Color:
- Yellow
- Operating weight:
- 890kg
- Product name:
- excavator loader
- Loading bucket capacity:
- 1.2M3
- Dumping height:
- 2600MM
- Supply Ability:
- 100 Set/Sets per Month
- Packaging Details
- standard export package
- Port
- Qingdao, Shanghai, Ningbo, Guangzhou
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated

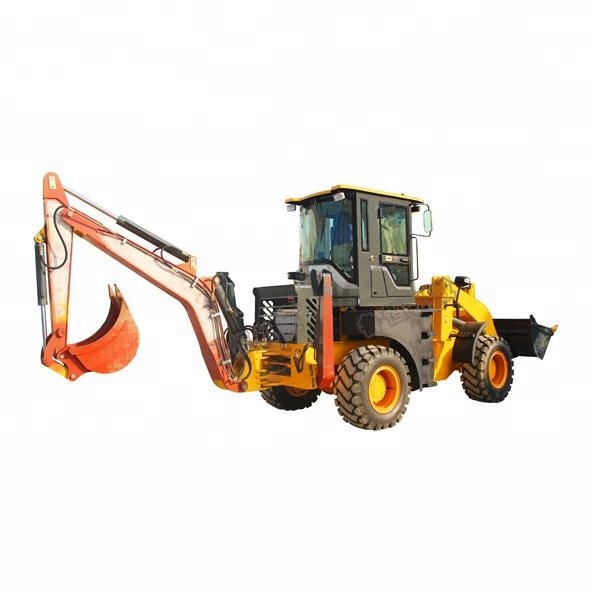

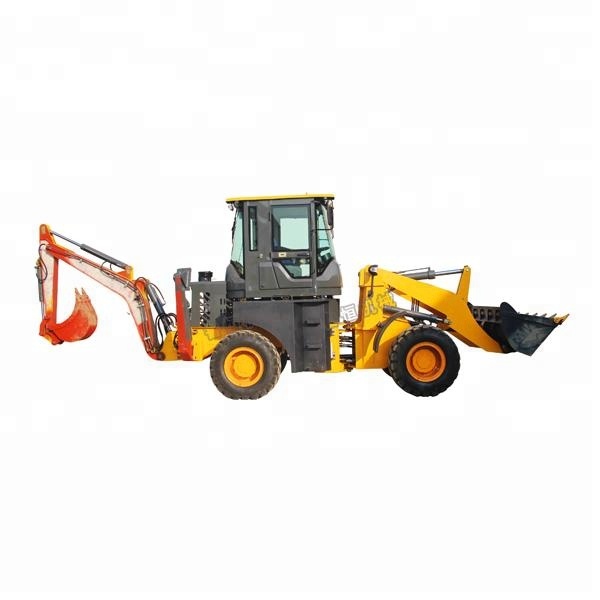

Mini farm tractor with front end loader and backhoe with best price
The multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the military project, and so on.
It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions. the wheel type excavators a loader is to fight pair, unhitch in the front, articulate, type style excavators a loader.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. ·The driving force excavating loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long. ·The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good. ·Excavating a part is that dyadic structure of box, load support capability are strong, the intensity is tall, the stability is good. ·The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. ·Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
SPECIFICATIONS FOR DIGGER LOADER | ||
Loader Performance | Loading bucket capacity (m3) | 1.2 |
Rated load capacity (kg) | 2500 | |
Dumping height (mm) | 2600 | |
Dumping reach when at max. dumping height(mm) | 880 | |
Max. breakout force(Kn) | 49 | |
Backhoe Performance | Capacity of excavator (m3) | 0.3 |
bucket | ||
Max. excavating depth (mm) | 3800 | |
Max. excavating radius (mm) | 5000 | |
Revolute angle of movable( °) | 180 | |
Hydraulic system( KPa) | 50.1 | |
Hydraulic system | Main pump(KN) | 161 |
Rate flow(KN) | 125 | |
Front and Rear Axles | Front and Rear Axles(%) | 45 |
Max. Traction (KN) | 38 | |
Max. steering angle ( °) | 35 | |
Hydraulic System | Min. turning radius (front wheel center)(MM) | 4910 |
Loading pressure (Mpa) | 21.5 | |
Digging Pressure (Mpa) | 21.5 | |
steering Pressure (Mpa) | 14 | |
Tyre | 16/70-20 | |
Engine | Engine | WEI CHAI4108 |
Rated power(HP) | 110 | |
Rated speed( r/min) | 2400 | |
Transmission System | Forward I gear shift (km/h) | 0-11 |
Forward II gear shift (km/h) | 0-27 | |
Reverse I gear shift (km/h) | 0-10 | |
Reverse II gear shift(km/h) | 0-26 | |
FIGURE | Drive type | 4WD |
Operation weight(Kg) | 6800 | |
Size(L*W*H mm) | 7300mm*2100mm*3000mm |
