Home > Products > 2-wheel Mini Laser Concrete Screed for Sale
2-wheel Mini Laser Concrete Screed for Sale
Click on the image to view the original image
Product: views:62-wheel Mini Laser Concrete Screed for Sale
Size: 322X278X117 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 19:53
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Place of Origin:
Shandong, China
After-sales Service Provided:
Overseas third-party support available
Name:
2-wheel Mini Laser Concrete Screed for Sale
Vibrating plate width:
2500mm
Rated power:
3kw
Power:
1.6HP
Voltage:
220V
Oil tank:
16L
Weight:
280kg
Walking speed:
0-20m/min
Vibration motor:
4000rpm
Exciting force:
2000N

Packaging & Delivery

Selling Units:
Single item
Single package size:
322X278X117 cm
Single gross weight:
280.0 kg
Package Type:
standard export wooden box for 2-wheel Mini Laser Concrete Screed for Sale
Lead Time:
Quantity(Set)1 - 200>200
Est. Time(days)15To be negotiated
Video Description
Product Description

2-wheel Mini Laser Concrete Screed for Sale


Function and Characteristics of Concrete Laser Screed
The Laser screed machine is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

1. Use precision laser technology, closed loop control technology and highly sophisticated integrated hydraulic system, and the microcomputer automatic control.

2. Use hydraulic drive system, with laser systems and computer control system to make automatic level and at the same time to finish leveling work.

3. The Laser Emitter which used to control the ground elevation is independent layout, so as the ground elevation won"t produce accumulative error.

4. Laser Emitter, can auto control the flat surface and two-way slope.


Specification for new ride on vibratory wet concrete laser screed machine for sale:

                                    Specification for new ride on vibratory wet concrete laser screed machine for sale
Laser vibration leveling system
Us imported danfoss laser control system
Laser emission system
us imported skytreasure launcher
Laser receiving system
Switzerland imports leica receiver laser
Rated power
3.3KW
Voltage
220V
Oil tank
16L can use 10 hours
Weight
280kg
Walking speed
0-20 m/min
Working speed
Working speed
Vibration motor speed
4000rpm
Exciting force
2000N
Vibrating plate width
2500mm
The thickness of the leveling
50-200mm
Size
3220*2780*1172

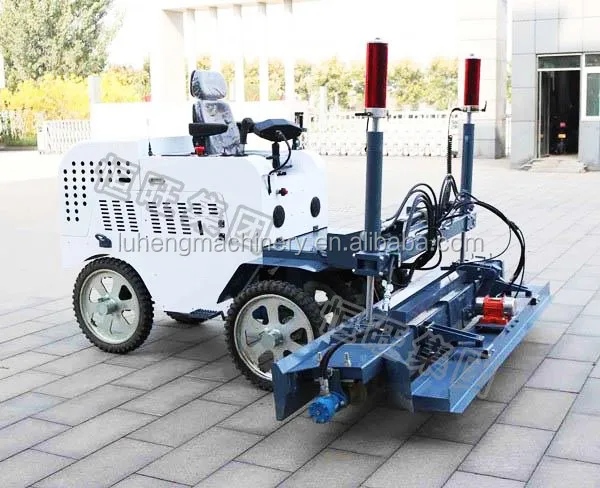

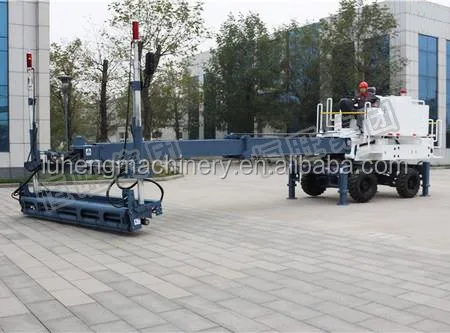

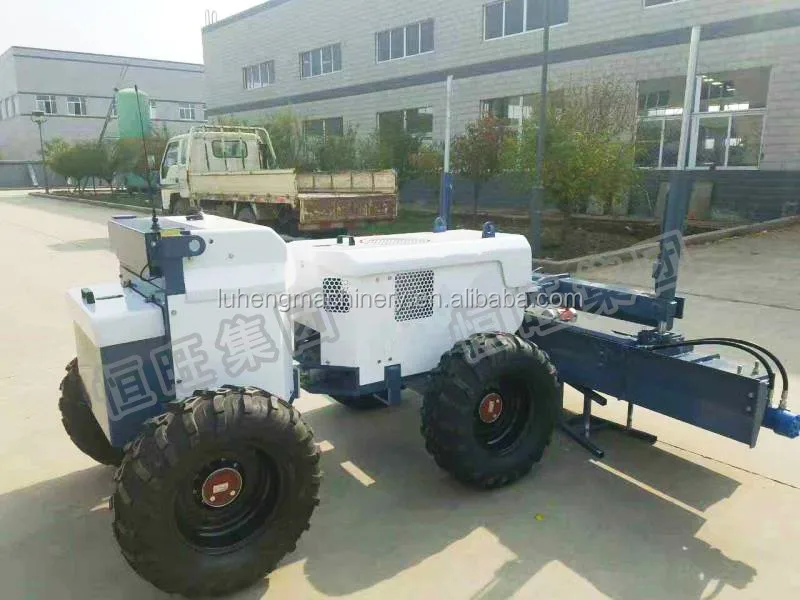

Detailed Images

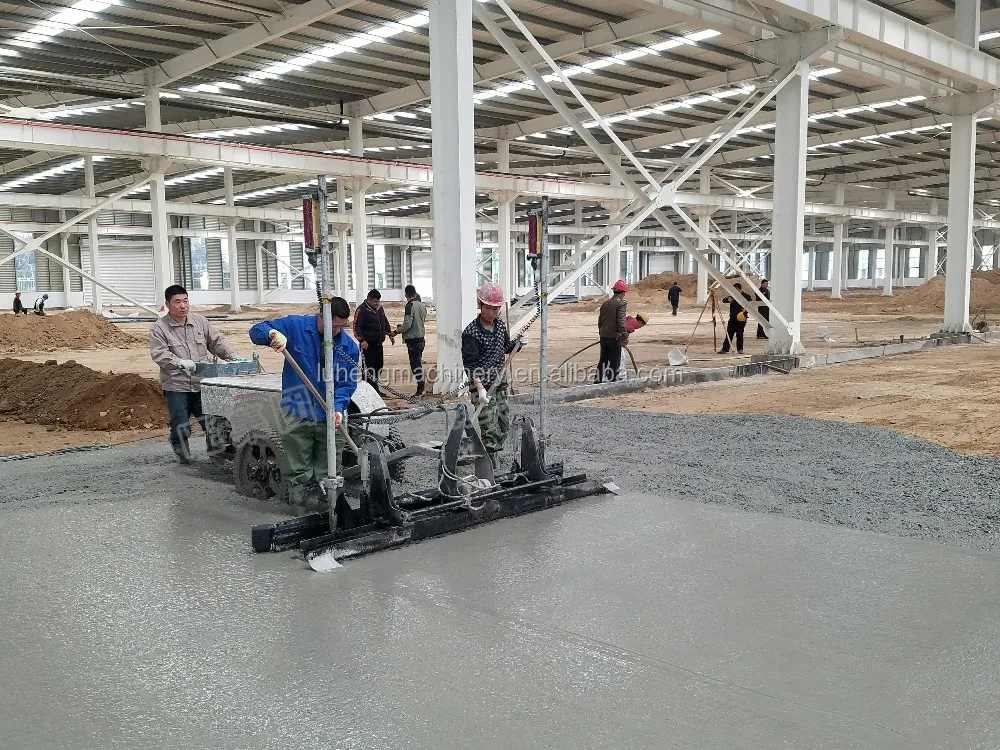

Working case
Related Products
Packing & Delivery

Packing and Shipping:

We will send concrete laser screed picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .


Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .

FAQ
Our Company

Jining Luheng Machinery Equipment Co.,Ltd.

Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of concrete laser screed. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
