- Applicable Industries:
- Construction works
- Place of Origin:
- Shandong, China
- After-sales Service Provided:
- Overseas third-party support available
- Name:
- concrete vibrating screed floor leveling machine
- Power Source:
- Gasoline
- Power:
- 1.6HP
- Voltage:
- 220V/380V
- Weight:
- 35KG
- Dimension:
- 69*40*56cm
- Engine:
- Gasoline Honda GX35
- Fuel tank:
- 0.65L
- Max. speed:
- 5200rpm
- blade size:
- 2-6m
- Supply Ability:
- 2500 Set/Sets per Month concrete vibrating screed floor leveling machine
- Packaging Details
- standard export wooden box for concrete vibrating screed floor leveling machine
- Port
- qingdao/dalian/shenzhen/ningbo
- Picture Example:
- Lead Time:
Quantity(Sets) 1 - 200 >200 Est. Time(days) 15 To be negotiated

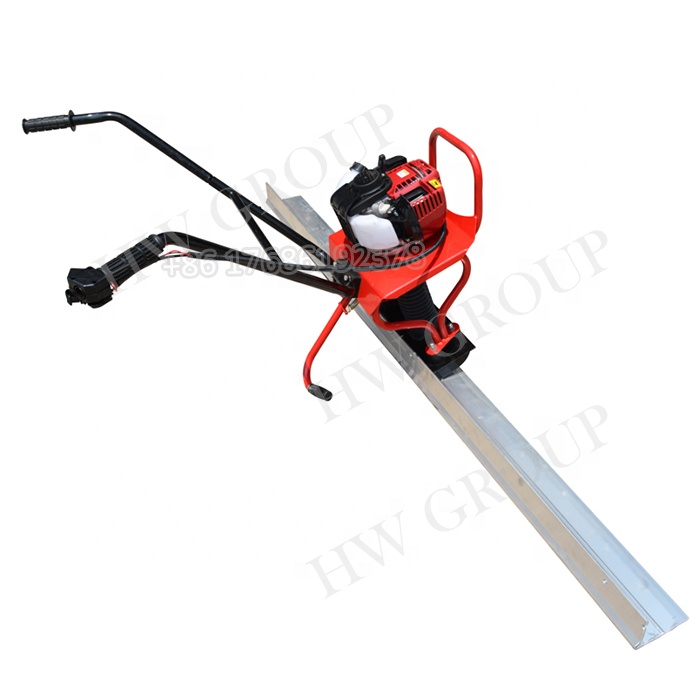

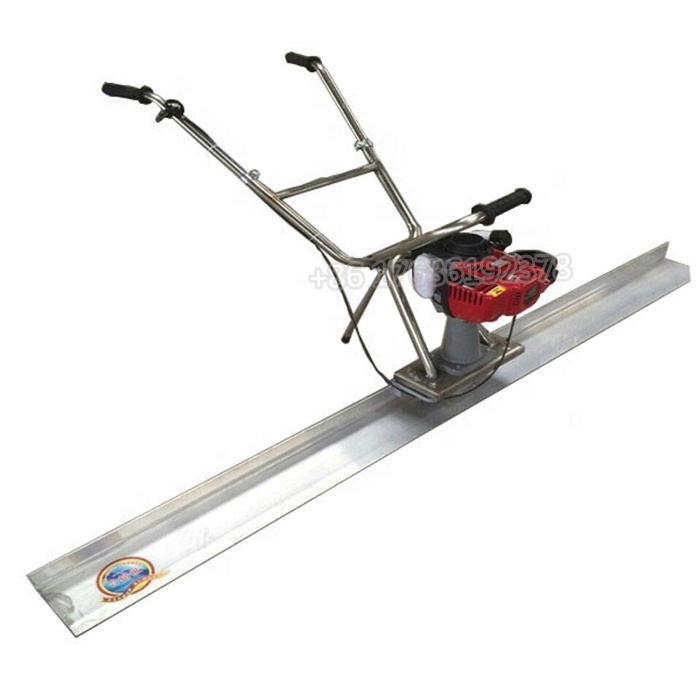

concrete vibrating screed floor leveling machine
This concrete vibrating screed machines is suitable for flat cement and concrete surface during construction building site androad construction and so on.This concrete vibrating screed machines has high speed and efficiency,and easy for take.Strickling and vibrating finish together.When Operate concrete vibrating screed machines,we can adjust the impact force at any moment, manual accelerograph controls vibrating frequency.Concrete surface after vibration,no need to sprinkle dry cement when press polish. Concrete vibrating screed machines reduce the construction cost and repair frequency greatly.Concrete vibrating screed machines Can avoid situation as concrete surface empty,knob and split completely which usually appear after concrete surface constructing. Finish the firmly,solid and close-graind concrete surface.
The vibrating ruler is used to discharge the air in the concrete, scrape the concrete floor and enhance the density of the concrete.
Features of concrete vibrating screed floor leveling machine:
1. Lightweight body, easy to use, safe
2. Titanium alloy blades are durable and flat.
3. Blade length is 1-6 meters
4. The handle height can be adjusted, suitable for operators of different heights
5. Easy blade replacement
Specification for concrete vibrating screed floor leveling machine:
Specification for concrete vibrating screed floor leveling machine | ||
Model | HW-35 Gasoline | HWD-25 Electric |
Weight (kg) | 25 | 20 |
Dimension (mm) | L2500 X W1400 X H960 | L2500 X W950 X H810 |
Drive system (mm) | 2500 | 2500 |
Engine | Honda GX35 | / |
Type | Air-cooled, 4-cycle, Gasoline | 380v/50hz/3p |
Max. output kw(hp) | 1.2 / (1.6) | 0.25 / (0.33) |
Max. speed (rpm) | 5200 | 2800 |
Centrifugal force (n) | / | 800 |
Fuel tank (liter) | 0.65 | / |












Gasoline concrete vibration ruler used power screed for sale
Name: Engine
Brand: China
Use honda gasoline engine,power enough,quality is good
Gasoline concrete vibration ruler used power screed for sale
Name: Ruler
Brand: LH
The ruler you can choose 2-6m






Packing and Shipping for concrete vibrating screed floor leveling machine:
We will send gasoline power concrete vibrating screed machines picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .
Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
