- Power:
- 380v
- Weight:
- 360kg
- Dimension(L*W*H):
- 1465*700*1150mm
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Applicable Industries:
- Construction works
- Condition:
- New
- Application:
- Wall Plaster
- Place of Origin:
- Shandong, China
- Brand Name:
- wall cement spray machine
- Certification:
- ISO
- Production Capacity:
- 3m3/h
- Working Pressure:
- 3Mpa
- Horizontal Delivery Distance:
- Inner Size of Hose
- Maximum Aggregate Size:
- ≤4mm
- Hopper volume:
- 50L
- Air Compressor:
- 3m3/h
- Motor Power:
- 7.5KW
- Dimension:
- 2000x500x1150mm
- Net Weight:
- 360kg
- Name:
- mortar plaster spraying machine
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12X32X43 cm
- Single gross weight:
- 60.0 kg
- Package Type:
- wooden case for wall electric cement plastering machine mortar concrete spraying grouting machine
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 7 To be negotiated

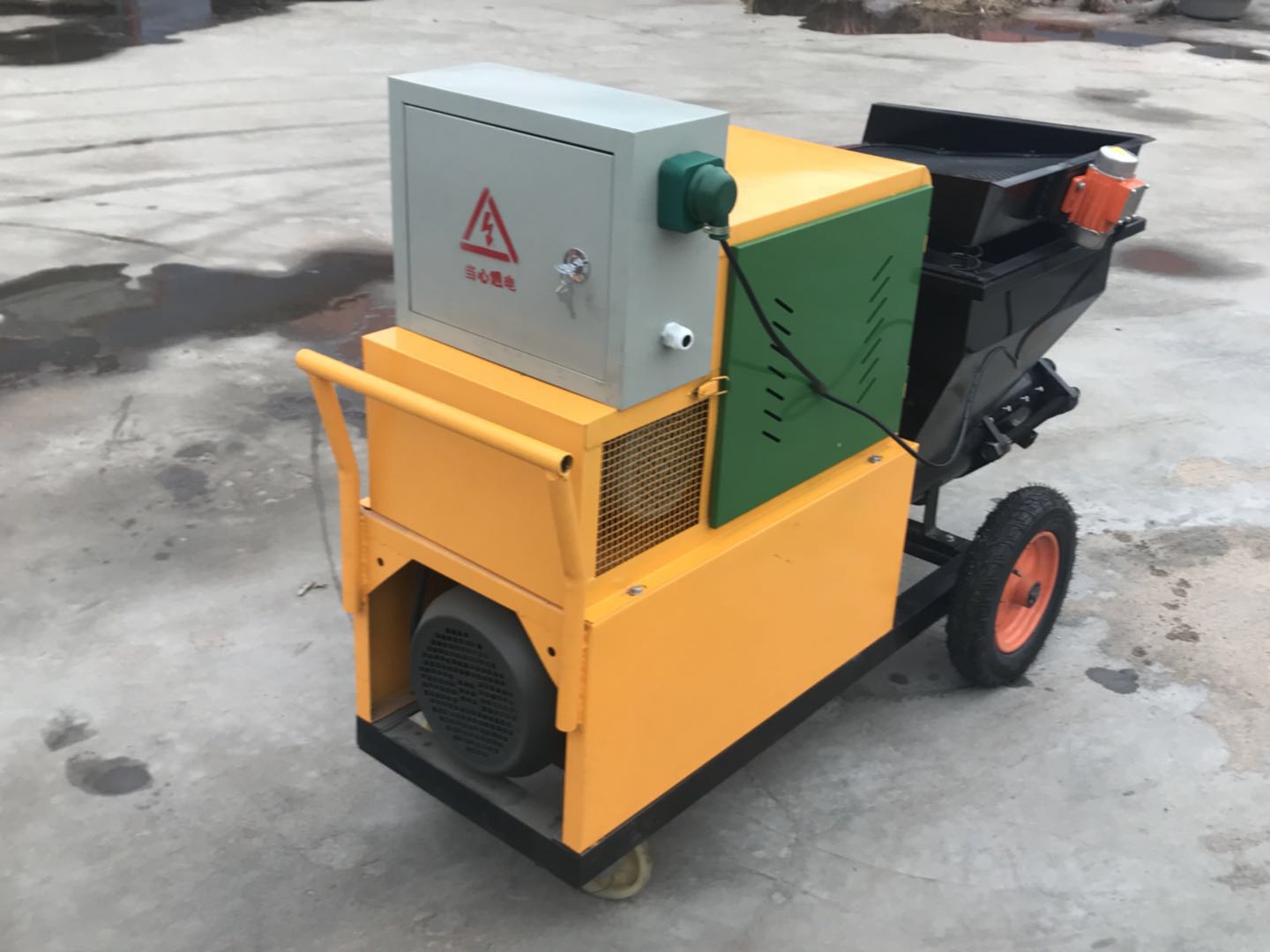

Screw automatic wall cement spray machine for Spraying and conveying mortarCement Mortar Spraying Machine Introduction
1, reasonable design, integration of pump and compressor, easy to move.
2, feeding smoothly , no pulse phenomenon;3, wide applicability, can spray powder, mortar, can also spray mortar;
4, coating uniformity, strong adhesion;
5, complete functions, can spray can coating;
6, can change the connection direction of the spray gun and nozzle, easy to operate.
Mortar conveying machine and Cement spraying machine Application:
Mainly used in the construction, spraying cement mortar on the internal wall, and spraying heat insulating material, fireproof materials no the external wall.
Product Features of Diesel spray gun cement machine :
1.Application spraying materials: putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, insulation mortar, waterproof material, fire prevention materials, insulation materials, sound-absorbing materials and some other water soluble materials.
2.By adjusting the amount of flow, spraying out the best effect.
3.Except the electric control box , it equipped with remote control to switch spraying.
4.The connection of the spray gun and the feeding tube can be rotated, so it is easy to operate
5 High efficiency of the construction, and good spraying quality.
6.The volume is small, easy to on-site transport, low cost accessories, and simple repair.
7.Using easily, fast speed, saving materials, labour and money, a machine needs only three people, 150 square / hour (thickness 2cm).
8.Material proportion. cement : mortar, 0.7 : 3
Electric type mortar spraying machine
Model:HWE20
Delivery pressure:2.5MpaTransport height:10~15m
Transport distance:30m
Max sand diameter:15mm
Volume:90L
Electric type mortar spraying machine
Model:HWE15
Transport height:15-30m
Max sand diameter:8mm
Hopper volume :50L
Diesel type mortar spraying machine
Conveying height: 30M
Through the particle size :<1CM
Delivery flow: 3-5M³ / H
Gray: Sand :1: 3
Hopper volume :90L
Machine weight :320KG
Matching nozzle wall :38MM
