Overview
Quick Details
- Applicable Industries:
- Construction works , Energy & Mining
- Condition:
- New

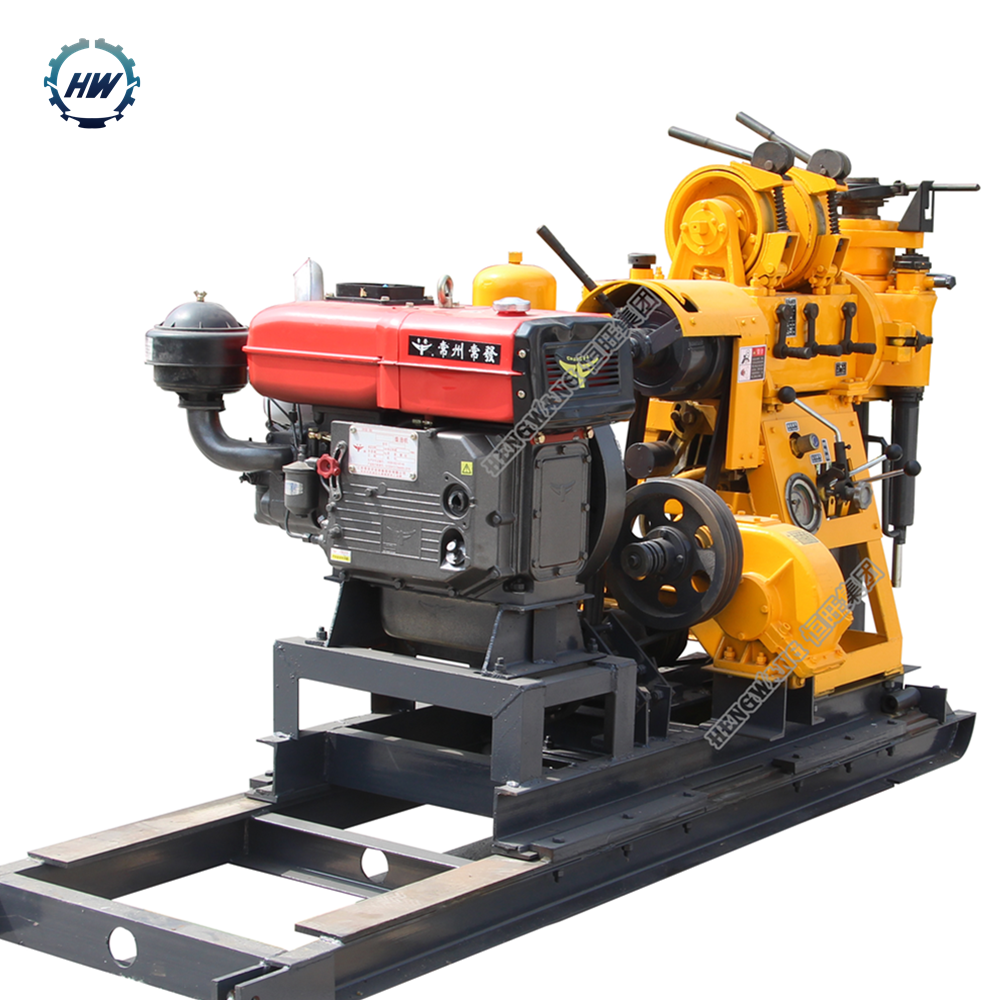

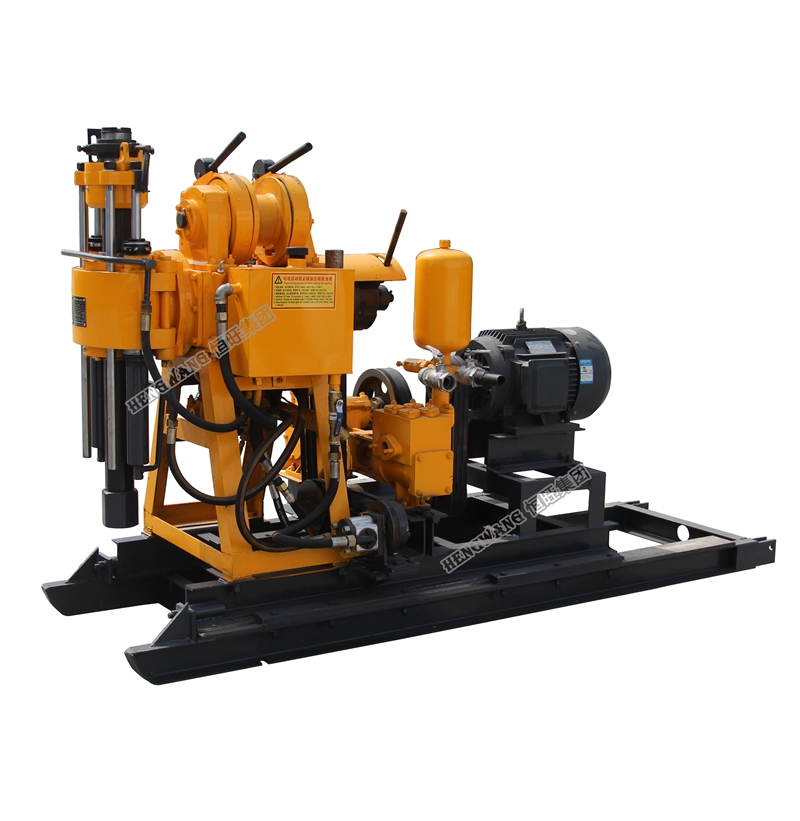

- Type:
- hydraulic well drilling rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- well drilling machine
- Usage:
- Water Well
- Voltage:
- 220V/380V
- Dimension(L*W*H):
- 2500-900*1500 mm
- Weight:
- 1800 kg
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support
- Name:
- well drilling rig
- maximum open hole caliber:
- 300 mm
- end hole caliber:
- 75 mm
- drill rod caliber:
- 60 mm
- spindle speed:
- forward 30-1050 r/min,reverse 29-137 r/min
- spindle stroke:
- 600 mm
- max.single line lifting capacity:
- 4000 kg
- wirerope caliber:
- 12.5 mm
- wirerope lenght:
- 50 m
- reel diameter:
- 300 mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10X20X30 cm
- Single gross weight:
- 60.0 kg

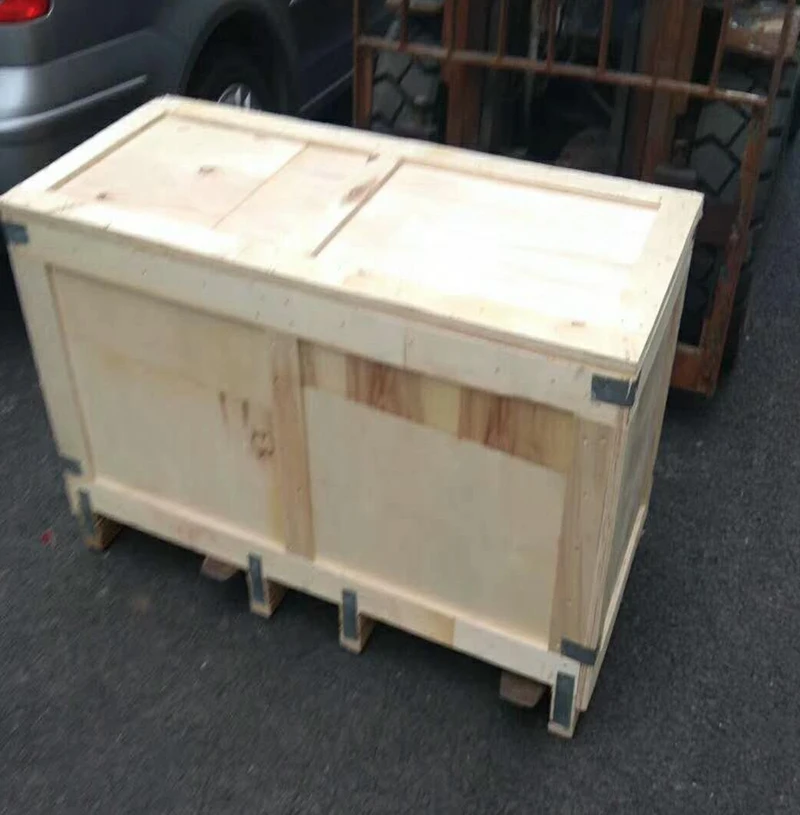

- Package Type:
- wooden case for water borehole drilling machine 200m water well drilling rig
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 14 To be negotiated
