Click on the image to view the original image
- Applicable Industries:
- Construction works , Energy & Mining
- Condition:
- New
- Type:
- Core Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- hydraulic rock drill
- Usage:
- Coal
- Voltage:
- 380 V
- Dimension(L*W*H):
- 7980mm*2300mm*2860mm
- Weight:
- 28 kg
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- Name:
- Hydraulic rock drill
- piston strock(mm):
- 24
- piston diamter(mm):
- 30
- oil flow(L/min):
- 32-35
- hydraulic pressure(Mpa):
- 15-17.5
- impact energy(J):
- 55-65
- impact frequency(HZ):
- 55-60
- torque(NM):
- 55-60
- Spin Speed(r/min):
- 250-300
- drilling hole dia(mm):
- 32-46
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12X23X43 cm
- Single gross weight:
- 60.0 kg
- Package Type:
- wooden case for 46mm hole diameter hydraulic rock hammer drill for tunnel bar-support system
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 10 To be negotiated
46mm hole diameter hydraulic rock hammer drill for tunnel bar-support system
YYT28 Hydraulic Rock Drill
Full hydraulic rock drill is a hammer, hydraulic leg and hydraulic pump, hydraulic pump divided into one pump with one machine, one pump with two machines, four machine,etc.
YYT28 leg type hydraulic rock drill with a variety of specification hydraulic station. High penetrationrate, low power consumption, less noise, less failure, safe and reliable, simple configuration, convenient movement.
Powerful drilling
The powerful combination of percussion and rotation originates in a very efficient impact structure .
YYT29 is also equipped with a powerful flushing mechanism which enables efficient removal of cuttings during drill deep holes.
High durability
The external parts have a sturdy design, and the internal parts, subjected to severe working conditions, which are either heat-treated or chromium plated. And all components are precisely finished as well. The drill internal parts all work in the hydraulic oil assures trouble-free and economical operation.
Easy and safe operation
Perfection of balance and convenient portability have been main concern in the design of YYT29.The hydraulic leg patent design makes the drill can be used for long periods due to the minimum recoil. The patent brake-chuck assures the broken rod will not hurt drillman and the drill rig will not fall when the bit shank is broken. YYT29 guarantees dependable and efficient drilling with a minimum of operator fatigue.
electric powered YYT28 handheld hydraulic rock drill hammer
YYT28 hydraulic rock drill parameters | |
shank | 22*108 |
water flushing | Y |
air flushing | Y |
weight(kg) | 28 |
length overall(mm) | 600 |
piston strock(mm) | 24 |
piston diamter(mm) | 30 |
oil flow(L/min) | 32-35 |
hydraulic pressure(Mpa) | 15-17.5 |
impact energy(J) | 55-65 |
impact frequency(HZ) | 55-60 |
torque(NM) | 55-60 |
Spin Speed(r/min) | 250-300 |
drilling hole dia(mm) | 32-46 |
water pressure(Mpa) | 0.2-0.4 |
support leg parameters | |
weight(kg) | 12.5 |
length(mm) | 1400 |
feed(mm) | 1200 |
outer diameter(mm) | F46 |
inner diameter(mm) | F40 |
|
|
YYT28 hydraulic rock drill power pack | |
length*width*height(m) | 1.1*0.6*0.8 |
weight(kg) | 300 |
power(kw) | 15 |

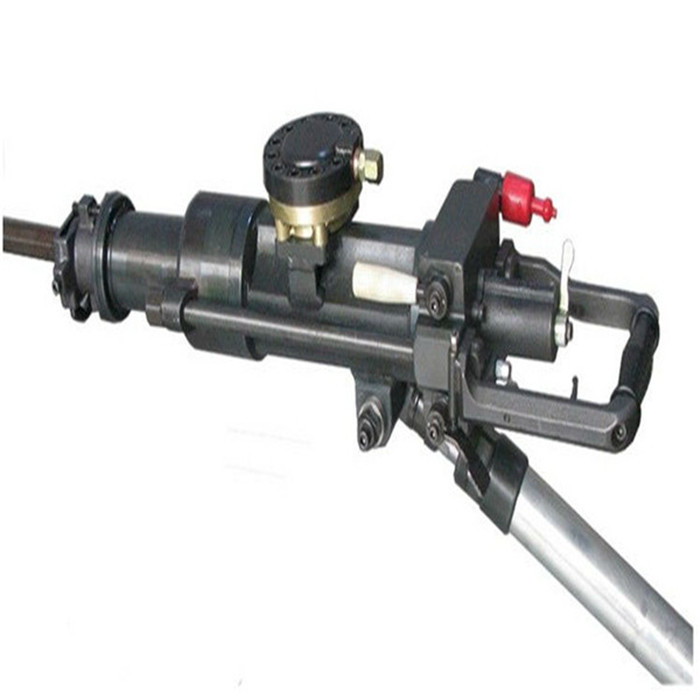

YYT28 hydraulic rock drill

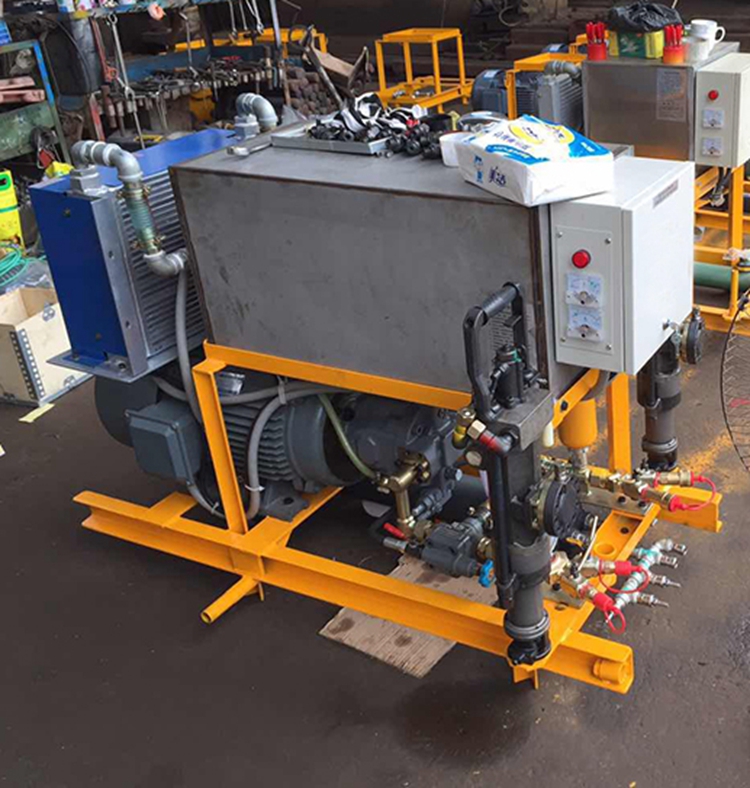

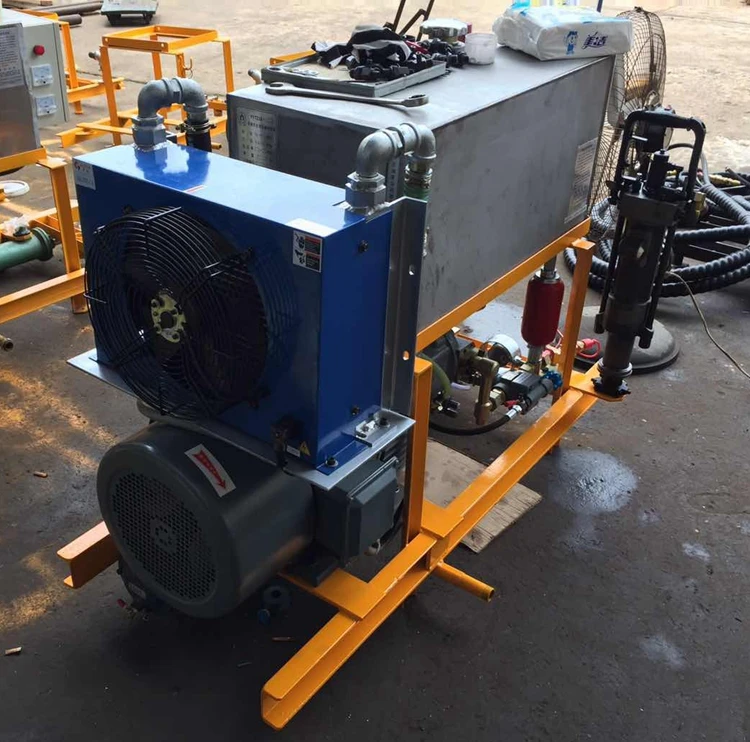

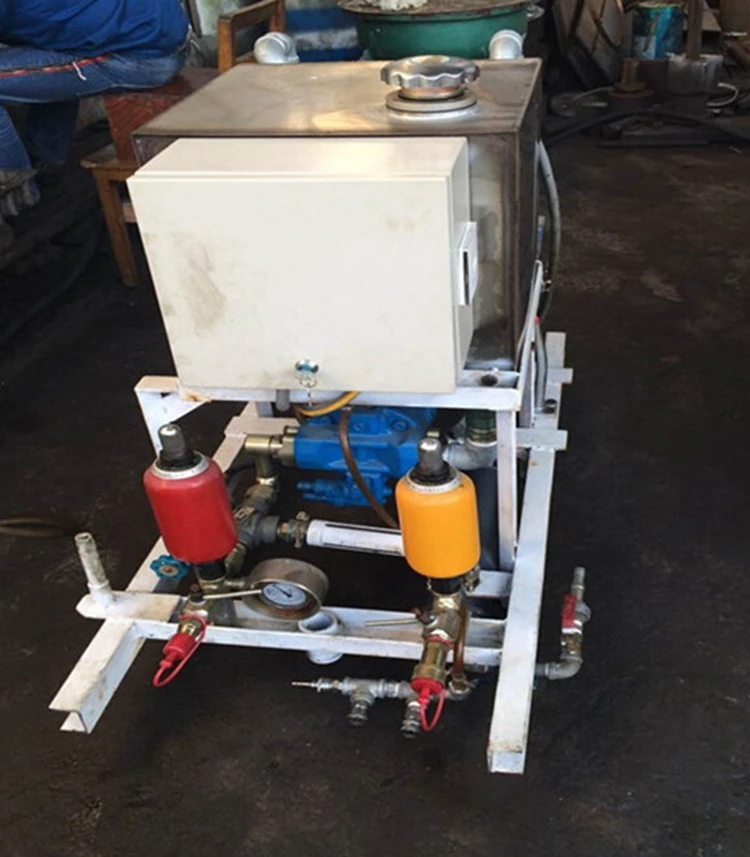

YYT28 hydraulic rock drill power pack
YYT28 hydraulic rock drill application as follows:
electric powered YYT28 handheld hydraulic rock drill hammer
Contact us for more details about Price,Packing,Shipping and Discount of hydraulic rock drill YYT28
46mm hole diameter hydraulic rock hammer drill for tunnel bar-support system
