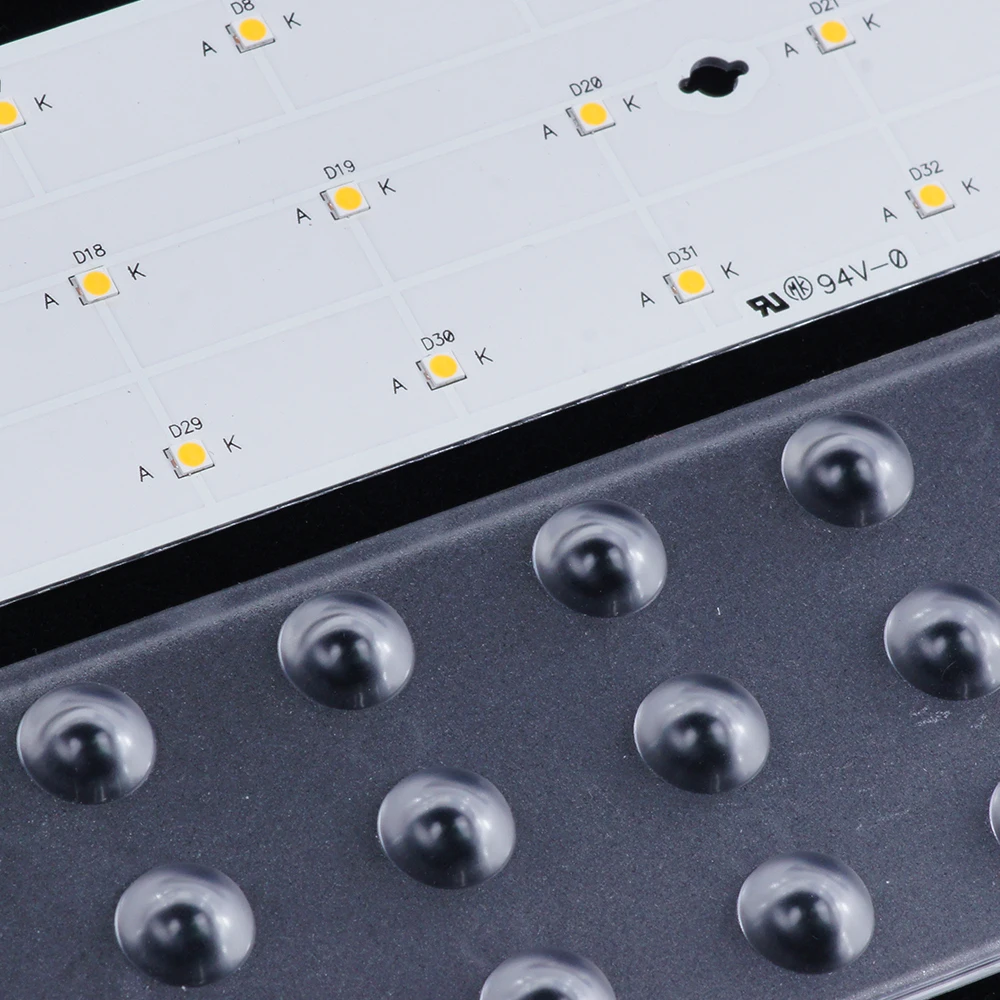

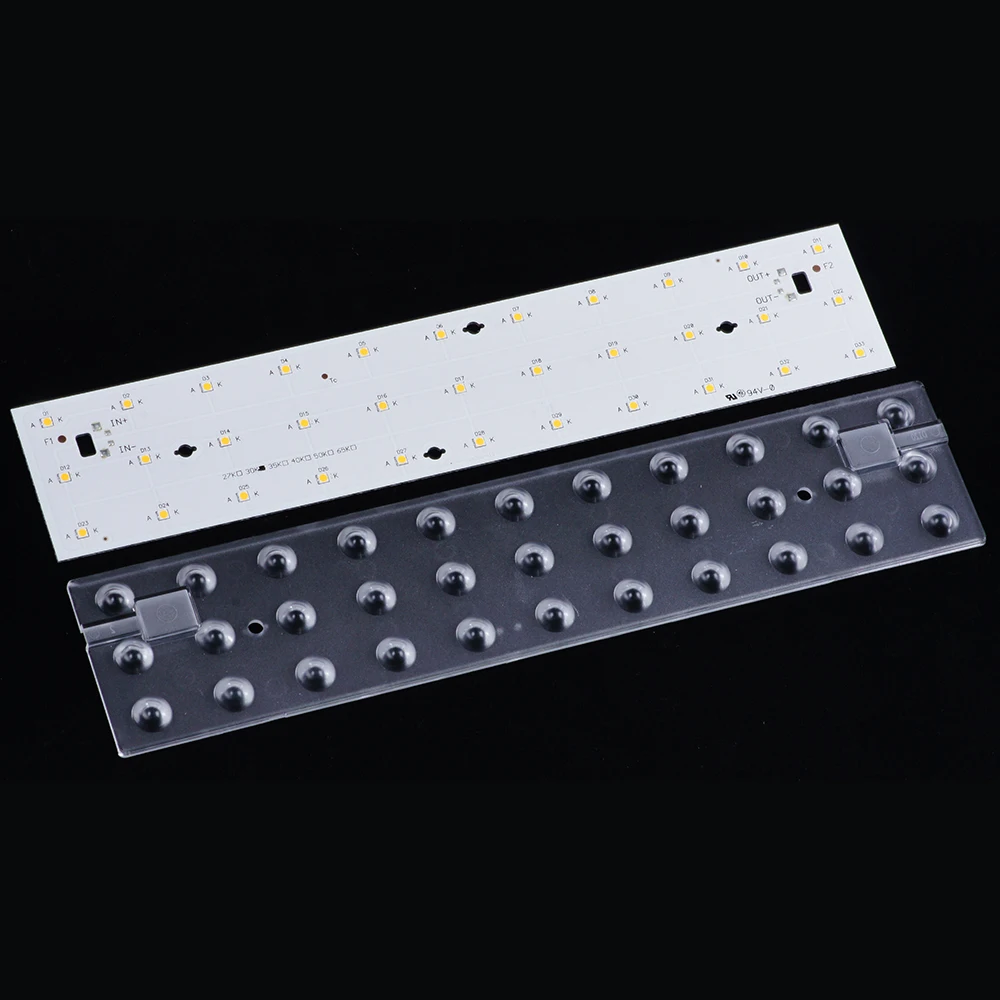

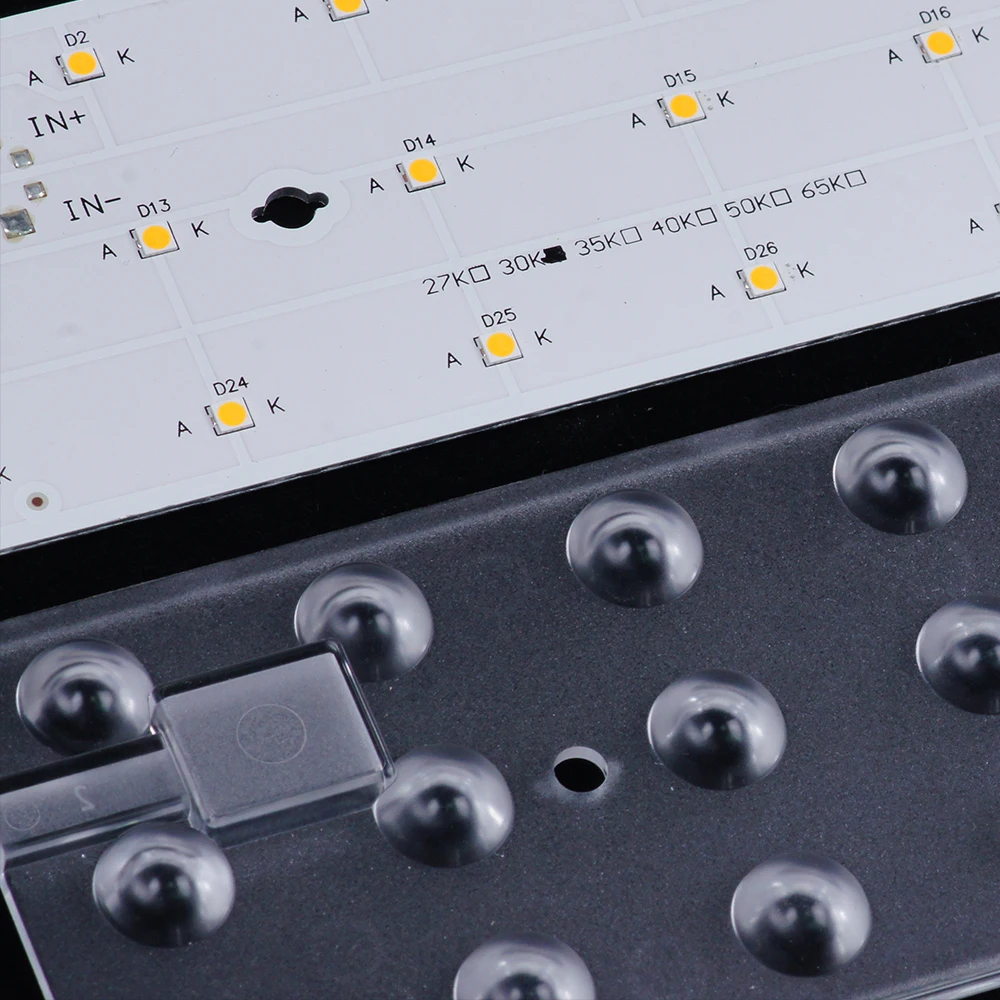

55*280mm strip module Professional 3030 33led light modules precision line rail led linear module with CE certificate

Click on the image to view the original image

Product：	views：455*280mm strip module Professional 3030 33led light modules precision line rail led linear module with CE certificate
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2020-12-23 23:02

Product Details

Specification

• Slim design with 55 x 280/560 mm (ZHAGA compliant),Ideal for linear and panel luminaires

• Choice of color temperatures 4000K

•luminous flux of 2200/4400lm @ 200mA

• High efficacy of the module 166 lm/W

• High color rendering (CRI >80)

• Excellent color consistency of 5 SDCM

• Beam characteristic 120°

• Ambient temperature ta -25 ... +55 °C

• Wide temperature (Tc) -40 °C to +85 °C
• Small luminous flux tolerances

• Push terminals for quick and simple wiring of LED module to LED module

• Long life-time: 50,000 hours

• 5-year guarantee

PROTOTYPES

1. This led Bulb light module has a small size can match a variety of lamp housing .
2. Whole led light module use smd 2835/3030 leds ,High quality leds guarantee long life .
3. We have a competitive price for 2835/3030 leds .
4. We can according your requirements to customized PCB board and Shell kit.

Type	LED CHIP	LED QTY	CCT	CRI	Voltage	Power	PCB's Size
DK286-15856	2835	33PCS	3000K/4000K	>80	DC33V	15W	280551.6mm
DK286-15857	3030	33PCS	3000K/4000K	>80	DC66V	30W	280551.6mm
DK286-15858	5630	33PCS	3000K/4000K	>80	DC33V	15W	280551.6mm
DK286-15859	2835	33PCS	3000K/4000K	>80	DC33V	15W	280551.6mm
DK286-15860	3030	33PCS	3000K/4000K	>80	DC66V	30W	280551.6mm
DK286-15861	5630	33PCS	3000K/4000K	>80	DC33V	15W	280551.6mm
DK286-15862	2835	66PCS	3000K/4000K	>80	DC66V	30W	565551.6mm
DK286-15863	3030	66PCS	3000K/4000K	>80	DC132V	60W	565551.6mm
DK286-15864	5630	66PCS	3000K/4000K	>80	DC66V	30W	565551.6mm

Product details

All the PCB can be customized in materials,
size, shape and so on.

PROTOTYPES,

WE OFFER,

No MOQ

Shipment in 2 weeks

Customized design

Rebate on high VOLUME ORDERS

Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.

Can I Have Details of this Product?
Yes, Common Data are in the Following Table.

Technical parameters and process capability of metal substarte(MCPCB)
ITEM	SPECIFICATION
Surface	LF HASL,immersion gold,immersion siliver,OSP
Layer	Single side,double sided Multilayer and special structure
Maximum PCB size	240mmx1490mm OR 490x1190mm
PCB thickness	0.4-3.0mm
Copper Foil thickness	H 1/2/3/4(oz)
Insulation layer thickness	50/75/100/125/150/175/200(um)
Metal Base thickness	AIuminum(1100/3003/5052/6061),Copper AIuminum
Metal Base thickness	0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
Shaping	Die punching/CNC Route/V-Cut
Test	100% open&short test
Shaping tolerance	Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
Hole tolerance	+-0.5mm
Min.Hole DIameter	Single side 0.5/Double sided PTH0.3MM
Solder mask	green/white/black/red/yellow
Min.letter height	0.8mm
Min.line space	0.15mm
Min.letter width	0.15mm
Sile screen color	blue/white/black/red/yellow
Sopecial hole	Spot facing/cup hole/buried via hole/buried tank
File format	Gerber,Protel,PowerPCB,AutoCAD etc

FAQ

Q: 1. CAN I HAVE A SAMPLE ?

A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.

Q: 2. WHAT IS THE LEAD TIME?

A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.

Q: 3. DO YOU HAVE ANY MOQ LIMIT?

A: OUR MOQ IS 1PCS.

Q: 4. CAN YOU OFFER BEST PRICE TO US?

A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.

Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?

A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.

Q: 6. WHAT FILE WE SHOULD OFFER?

A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.

Q: 7. WE WANT TO VISIT YOUR COMPANY?

A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
