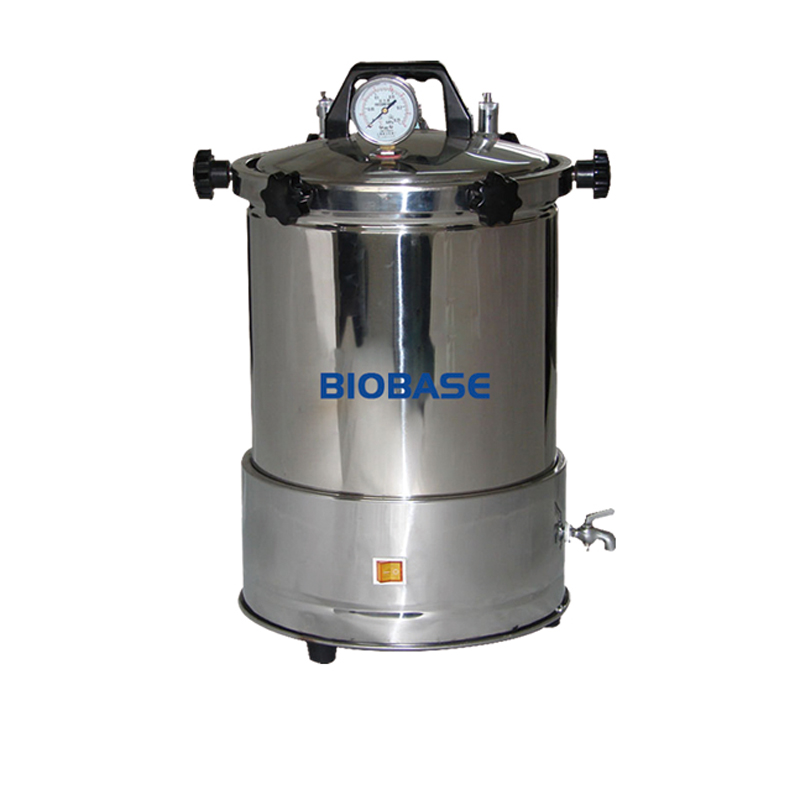

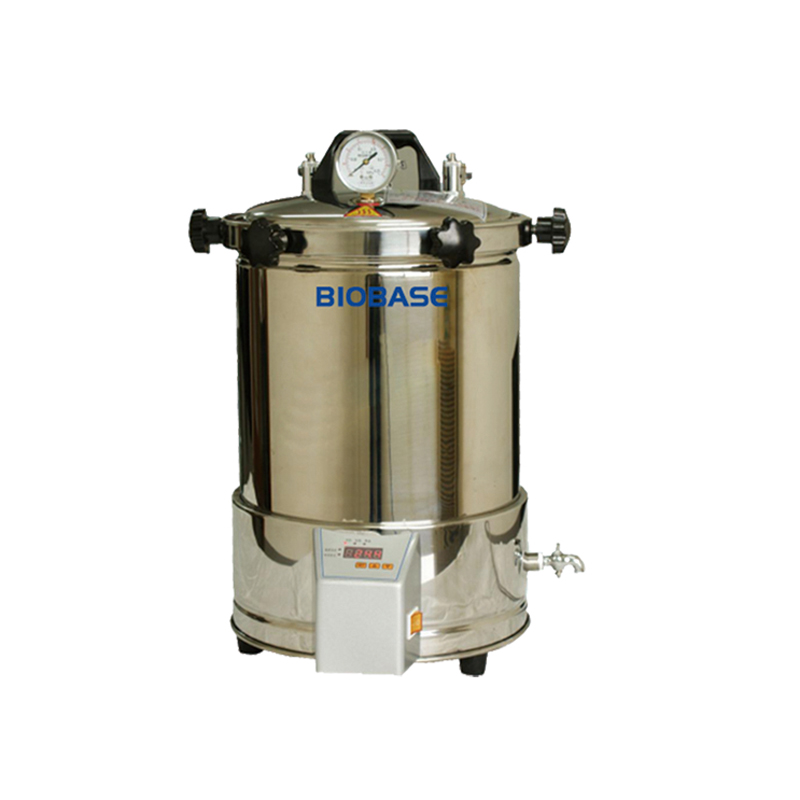

Portable Autoclave sterilizer
Range of Applications
It"s desk-top autoclave sterilizer which is designed for the hospital, clinic, lab, etc.
It"s mostly suitable for sterilizing of surgical, dental instruments, glassware, culture medium and biological dressing, food and goods, etc.
Features
1. Easy operation, safe and reliable.
2. The sealing ring is made of silicon rubber.
3. Two safety valves keep double safety (for timing control type).
4. It has self-adjustment function(for timing control type)
5. Over temperature & over pressure auto-protection.
6. Electric heating or gas heating can be used (for Dual fuel Type).
7. The sterilizer is provided with a power switch, user can control the operation easily.
8. Immersion type electric heating pipe, thermal efficiency is high, stainless steel material tube is durable to
use.
9. Steam water inner circulation system: No steam discharge and the environment for sterilizing will be clean
and dry.
10.Double groove pressure gauge, could clearly indicate, convenient observation, reliable performance.
11. When at lower water level, or at the end of heat preservation time, have buzzer alarm, timing control
type will automatically stop heating (for timing control type).
Technical Parameters
Model | BKM-P18(D) | BKM-P24(D) | BKM-P18(A) | BKM-P24(A) | BKM-P18(B) | BKM-P24(B) |
Type | Timing control type | Anti-dry out type | Dual fuel Type | |||
Capacity | 18L | 24L | 18L | 24L | 18L | 24L |
Time setting | 1--99 minutes | No | No | |||
Temperature setting | Rt +5~126℃ | 126℃ or 121℃ | 126℃ or 121℃ | |||
Power Supply | AC 220V/50HZ | |||||
Power Consumption | 2kW | |||||
Working Pressure | Along with temperature change | 0.142Mpa | 0.142Mpa | |||
Chamber Size | φ280*210mm | φ280*310mm | φ280*210mm | φ280*310mm | φ280*210mm | φ280*310 mm |
Packing Size(mm) | 420*420*560 | 420*420*660 | 420*420*560 | 420*420*660 | 420*420*560 | 420*420*660 |
