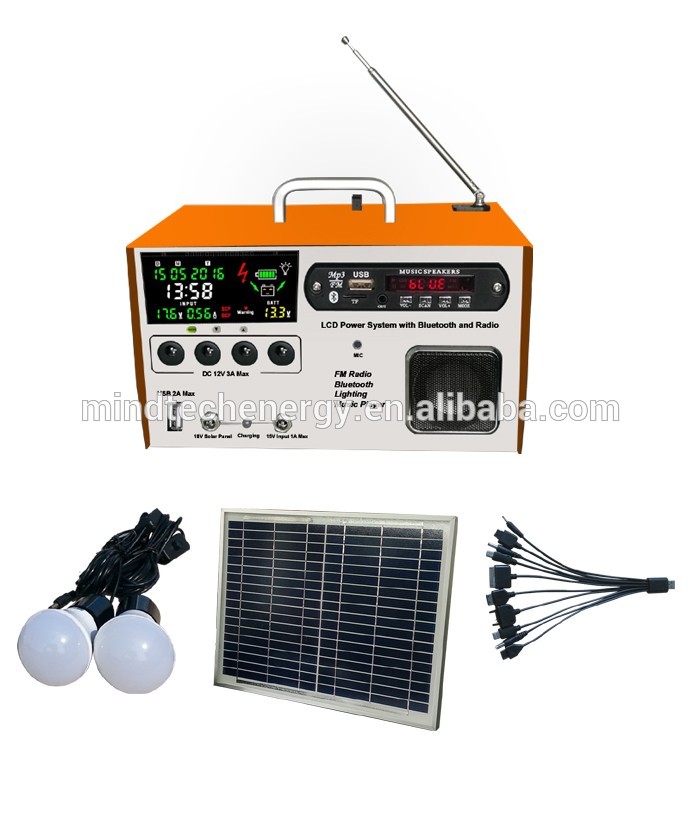

off grid solar kits system
1)solar panel: 10W polycrystalline panel with 5m cable
2) SMF lead Acid Battery : 12V,7Ah rechargeable
3) Lamp : 4pcs LED 3W lamp with 5m cable
4) USB port: Connector to charge mobiles, MP3,MP4, digital camera
| Solar Panel | 10W polycrystalline panel with 5m cable |
| SMF lead Acid Battery | 12V,7Ah rechargeable |
| Lamp | 4pcs LED 3W lamp with 5m cable |
| USB port: | Connector to charge mobiles, MP3,MP4, digital camera |
| ON/OFF switch | Yes |
| Indicator | Yes. With 25%,50%,75%,100% charging status |
| Fully charging time | About 9 hours |
| Lighting time | About 8 hours |
| Accessaries | USB rechargebable cable,Nokia small tip,Samsung D800,Moto V3,Sonny Ericcson tip |
| Size | Elec. box: 196*95*117mm Panel: 355*250*18mm Advantage: A handle is convenient to carry by hand |
| Carton size | 713*309*416mm/4set |
| Weight | N/W:21kg/4set G/W:24kg/4set |
| 20GP/40GP | 284cartons(1136pcs)/611cartons(2444pcs) |
It is a set of DC power supplying system, designed especially for the users at remote and power shortage area, working at field, travel camping, also for the small DC power electricity supply.
A. With the monolithic processor as the major controller, this small solar light system effectively manages all charging processes. The key function of overcharge & over discharged protection can extend the life span of the battery. The processor protects aainst arcing during the low voltage conditions.
B. The standby function: Following five minutes after startup, if no output loads are detected, the small solar light system will atomatically enter small solar light system into a low power consumption standby mode.
C.USB output overload protection: The USB output will shut down automatically if the maximum output current exceeds 1000mA when charging for mobiles, MP3, and other rated 5V devices etc.
D. Overload protection: The output will shut down automatically when current exceeds 3 Amps
E. Independent Charging & Discharging: The small solar light system can charge and discharge independently.
F. Load indicator: A battery indicator light will display red when charging, and green when small solar light system is fully charged. When the small solar light system operates under low voltage, the indicator will be red.
G. This small solar light system can be charged by AC adapter.(note:The adapter should be designed specially for charging lead acid battery,charge current should be lower than 2A)

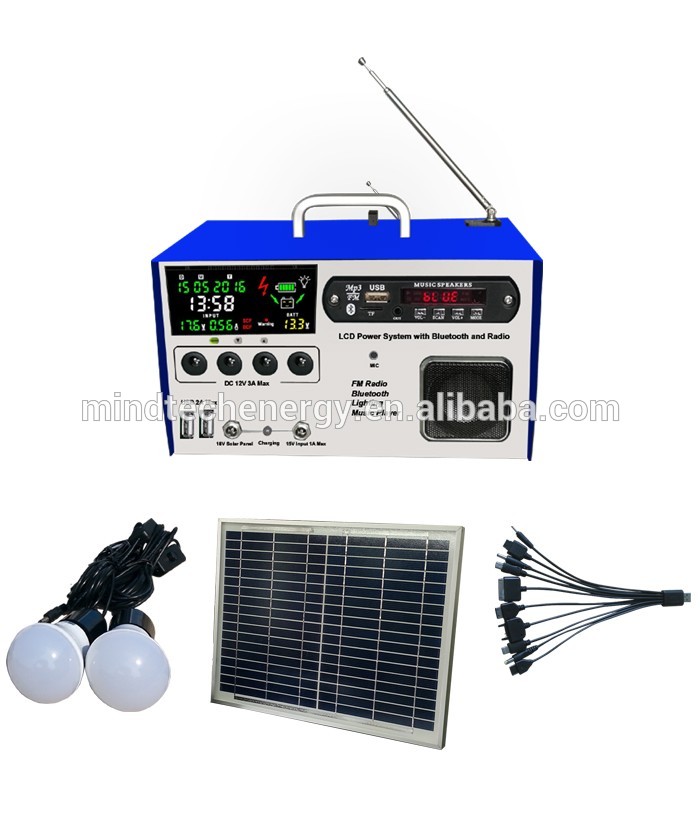

off grid solar kits system
off grid solar kits system packaging & shipping
Packed in color box
4sets/ctn
Carton size: 713*309*416mm
G.W./ctn: 24kgs
20GP/40GP: 284cartons(1136pcs)/611cartons(2444pcs)
