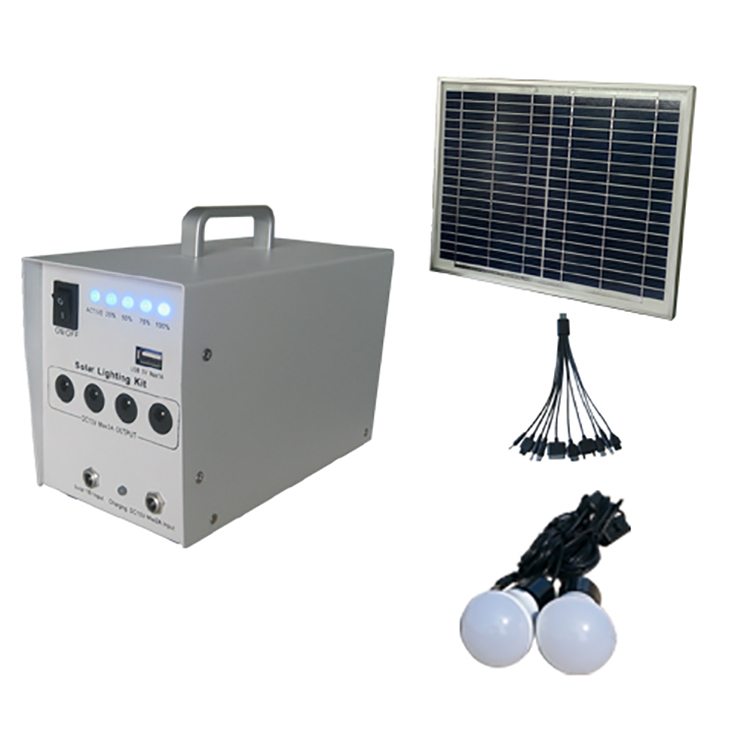

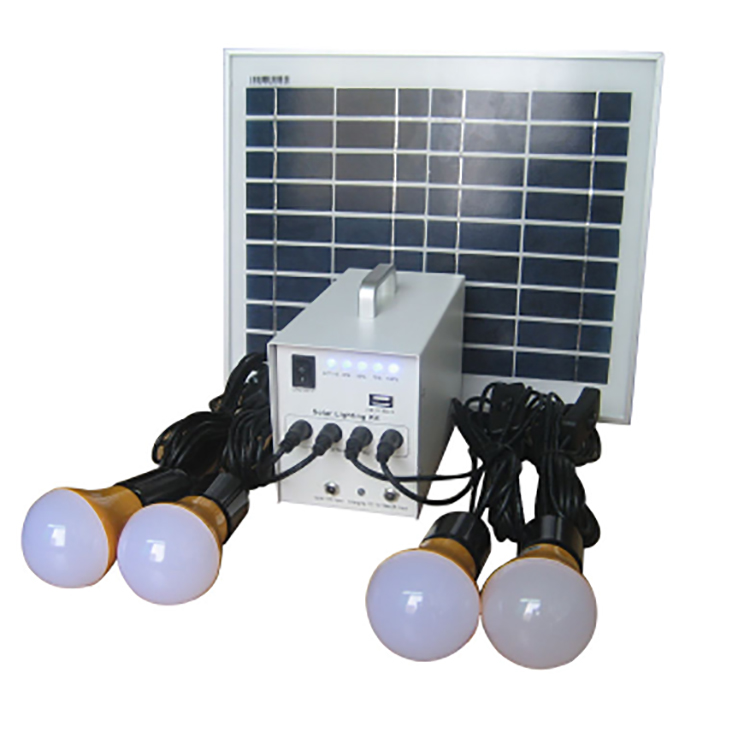

solar powered fan system
1. Specification:
1)solar panel: 10W polycrystalline panel with 5m cable
2) SMF lead Acid Battery : 12V,7Ah rechargeable

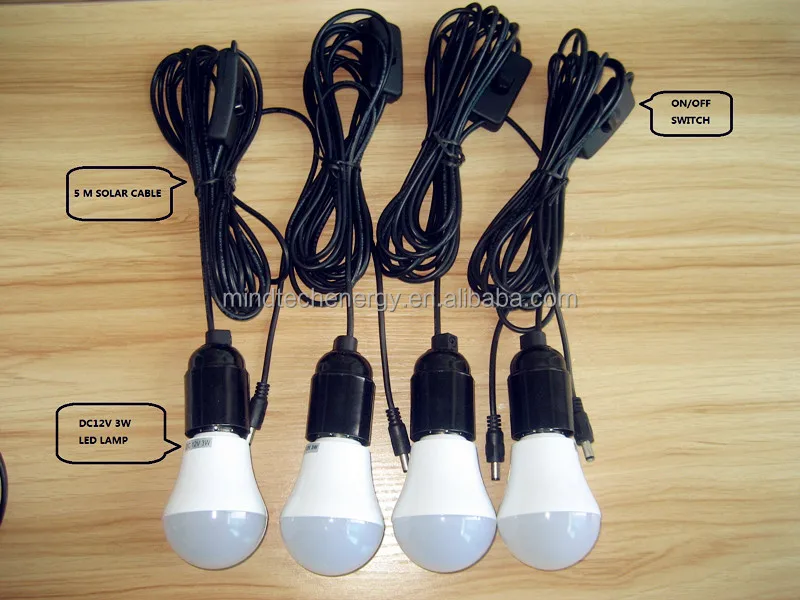

3) Lamp : 4pcs LED 3W lamp with 5m cable
4) USB port: Connector to charge mobiles, MP3,MP4, digital camera
| Solar Panel | 10W polycrystalline panel with 5m cable |
| SMF lead Acid Battery | 12V,7Ah rechargeable |
| Lamp | 4pcs LED 3W lamp with 5m cable |
| USB port: | Connector to charge mobiles, MP3,MP4, digital camera |
| ON/OFF switch | Yes |
| Indicator | Yes. With 25%,50%,75%,100% charging status |
| Fully charging time | About 9 hours |
| Lighting time | About 8 hours |
| Accessaries | USB rechargebable cable,Nokia small tip,Samsung D800,Moto V3,Sonny Ericcson tip |
| Size | Elec. box: 196*95*117mm Panel: 355*250*18mm Advantage: A handle is convenient to carry by hand |
| Carton size | 713*309*416mm/4set |
| Weight | N/W:21kg/4set G/W:24kg/4set |
| 20GP/40GP | 284cartons(1136pcs)/611cartons(2444pcs) |

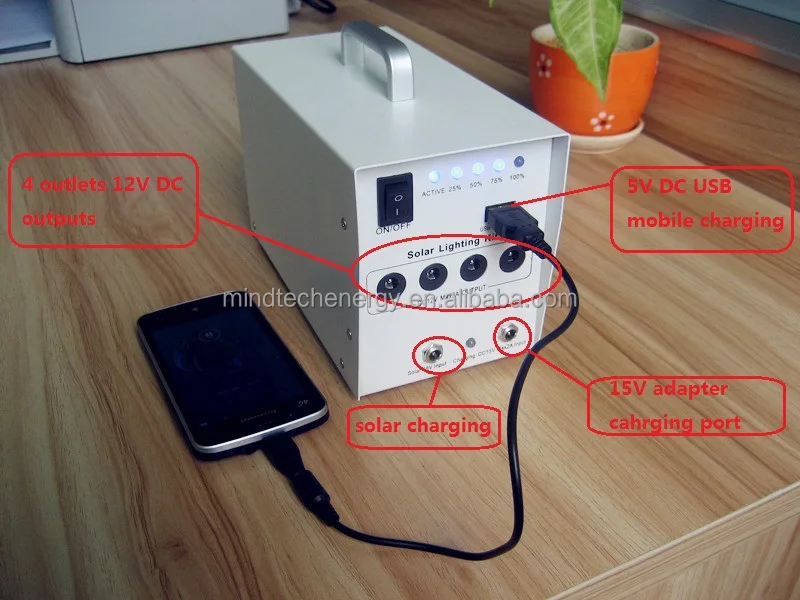

It is a set of DC power supplying system, designed especially for the users at remote and power shortage area, working at field, travel camping, also for the small DC power electricity supply.
A. With the monolithic processor as the major controller, this small solar light system effectively manages all charging processes. The key function of overcharge & over discharged protection can extend the life span of the battery. The processor protects aainst arcing during the low voltage conditions.
B. The standby function: Following five minutes after startup, if no output loads are detected, the small solar light system will atomatically enter small solar light system into a low power consumption standby mode.
C.USB output overload protection: The USB output will shut down automatically if the maximum output current exceeds 1000mA when charging for mobiles, MP3, and other rated 5V devices etc.
D. Overload protection: The output will shut down automatically when current exceeds 3 Amps
E. Independent Charging & Discharging: The small solar light system can charge and discharge independently.
F. Load indicator: A battery indicator light will display red when charging, and green when small solar light system is fully charged. When the small solar light system operates under low voltage, the indicator will be red.
G. This small solar light system can be charged by AC adapter.(note:The adapter should be designed specially for charging lead acid battery,charge current should be lower than 2A)
Other accessories that can work with this small solar light system

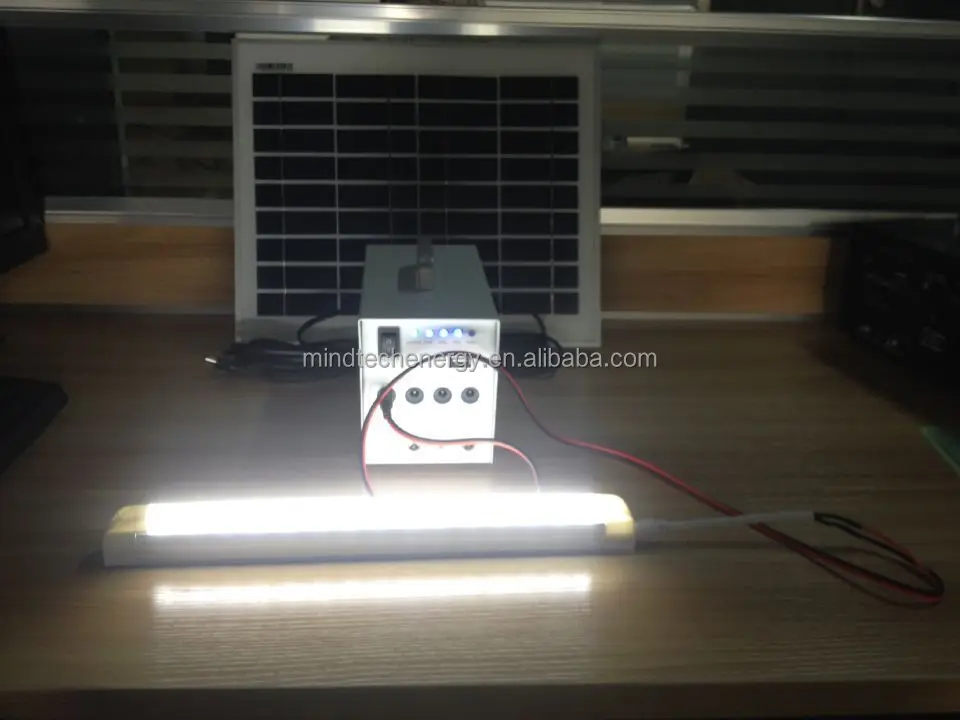

3W DC tube

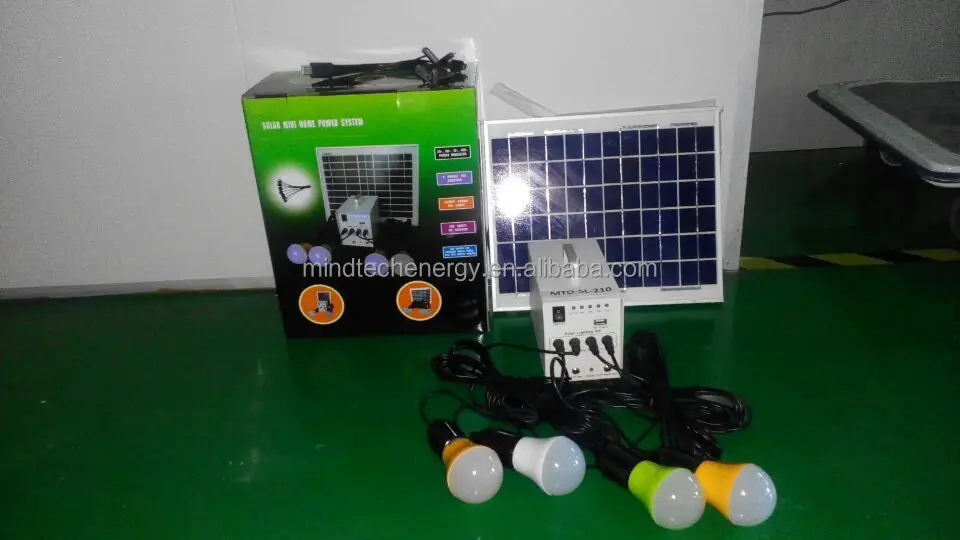

solar powered fan system packaging & shipping
Packed in color box
4sets/ctn
Carton size: 713*309*416mm
G.W./ctn: 24kgs
20GP/40GP: 284cartons(1136pcs)/611cartons(2444pcs)
Advantages:
- Prompt response
- High quality
- Best price
- Good in after-sales
-OEM products (big quantity,we can print your company on the products )
Conditions and terms:
-Trade terms:FOB Shenzhen
-Lead Time: 25 days
- Payment Term: T/T 30% downpayment, T/T 70% the balance before delivery
- Warranty:1 year for the battery,2 years for LED lamp, 5 years for solar panel
MindtechEnergy company is committed to manufacturing of solar energy systems and LED lights for the world. We supply high quality and best prices to our esteemed clients. Thanks to the support from our esteemed clients, we have grown strongly together with them year by year. Our products have CE,ROHS, FCC certificates.
We have strong R&D Dept in research and develop new items, every year we launch 2-5 new items into market.
We have QC Dept to control the quality from incoming material to finished products
We have strong after-sales service for our clients
solar energy system Features & advantages :
- AC or Solar panel charging
- Safety and easy installation,Plug and play systems;
- Good quality panel to ensure the high efficiency and long life needs;
- Over charge, over discharge, short circuit, over current protection ;
- high efficiency LED chip
- super bright hight lumen out put
- environment friendly
- Save over 80% energy comparing to standard incandescent bulb
- Low carbon LED light
- Flexible designs per client requests

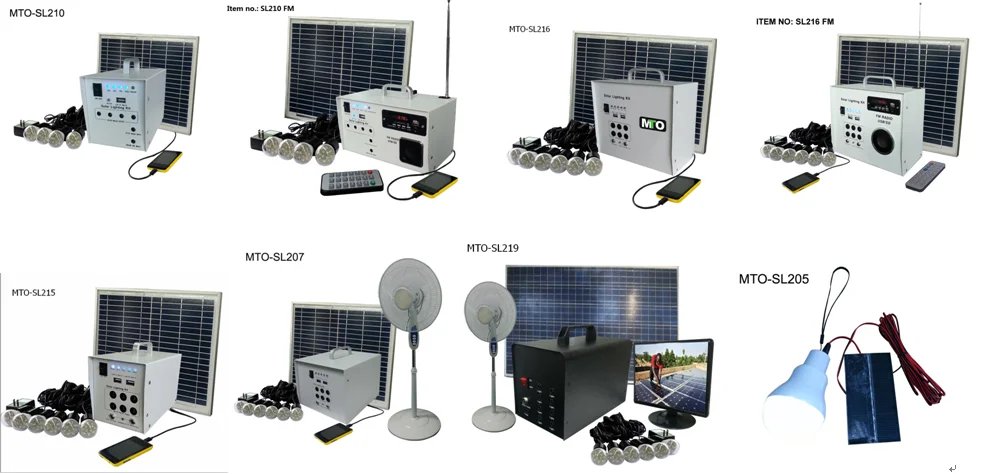

| small solar light system we have at present | ||||
| Model name | Item name | solar panel | Battery | output |
| MTO-SL209 | 5W small solar light system | 5W poly panel | 12V/4Ah | 12v/5v |
| MTO-SL210 | 10W small solar light system | 10W poly panel | 12V/7Ah | |
| MTO-SL210 FM kit -A | 10W small solar light system with FM/AM Radio | 10W poly panel | 12V/7Ah | |
| MTO-SL210 FM kit -B | 10W small solar light system with FM/AM Radio ,Buletooth ,headset | 10W poly panel | 12V/7Ah | |
| MTO-SL213 | 15W small solar light system | 15W poly panel | 12V/9Ah | |
| MTO-SL215 | 20W small solar light system | 20W poly panel | 12V/12Ah | |
| MTO-SL216 | 30W small solar light system | 30W poly panel | 12V/20Ah | |
| MTO-SL216 FM kit-A | 30W small solar light system with FM/AM Radio | 30W poly panel | 12V/20Ah | |
| MTO-SL216 FM kit-B | 10W small solar light system with FM/AM Radio ,Buletooth ,headset | 30W poly panel | 12V/20Ah | |
| MTO-SL207 | 40W small solar light system | 40W poly panel | 12V/26Ah | |
| MTO-SL207 | 40W small solar light system with FM/AM Radio | 40W poly panel | 12V/26Ah | |
| MTO-SL219 | 60W small solar light system | 60W poly panel | 12V/40Ah | |
| small solar light system application: | rural or remote areas,island countries,shed lighting,African countries,middle east evening lighting,village Children reading,etc | |||
...
