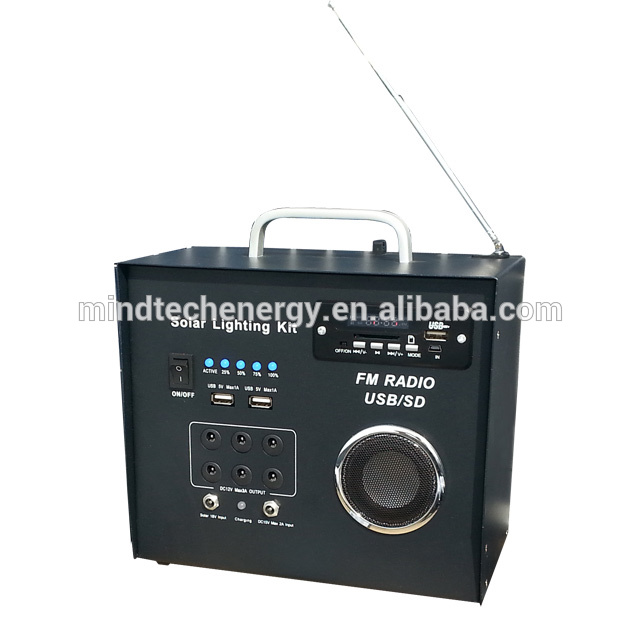

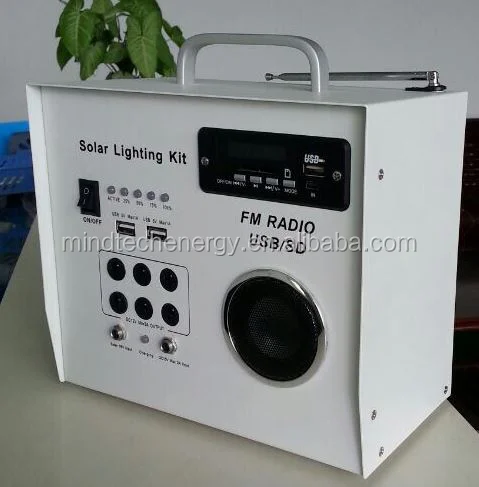

OEM serivrs mini portable solar generator solar electric generator for home

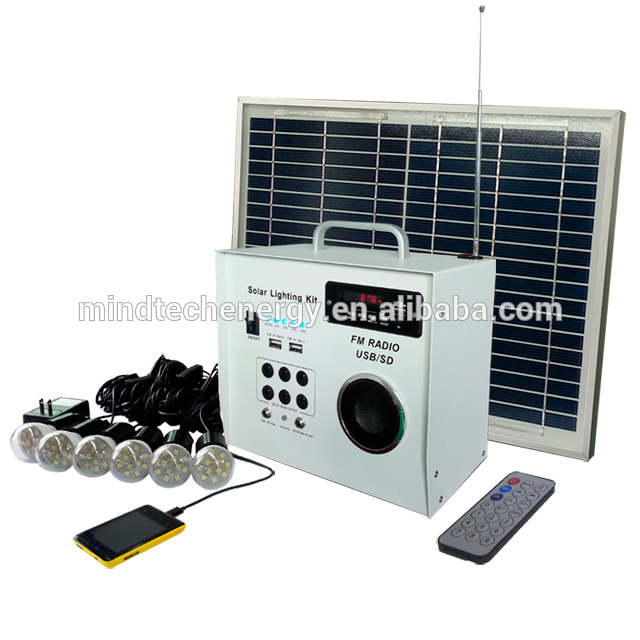

this mini solar generator includes solar panel,cotroller, battery. Used for lighting, mobile charger, Radio, Music player..
With low cost, high power efficiency. widely used for rural area where is short of electricity .
1. 30W solar panel + 5m PV cable,
A grade solar panel, 5 years warranty, 10 years 90% & 25 years 80% of its nominal power rating
2. With built-in 12v/3A controller + fully sufficient capacity battery 12v/20AH
3. 6pcs 12v 3w led bulb or led tube ( Optional )
4. Widely used for camping, house. ( support led lamp lighting, charge mobile, FM radio, SD card player, U flash disk music player )
5. Fully charging time : around 8 hrs
6. Working time ( if battery is fully charged ) :
4pcs bulbs working at same time, around 14 hrs
6pcs bulbs working at same time, around 9hrs
2pcs bulbs and Radio working at same time, around 14 hrs.
| Solar Panel system | 30W Polycrystalline panel and 6m cable |
| SMF lead Acid Battery | 12V, 20Ah rechargeable |
| Lamp | 6pcs superbright led lights |
| FM radio | FM radio, SD card player, U flash disk music player(Optional) |
| Remote control | Controller for player(Optional) |
| USB port: | Yes, Connector to charge mobiles, MP3,MP4, digital camera |
| ON/OFF switch | Yes |
| Indicator | Yes. With 25%,50%,75%,100% charging status |
| Fully charging time | About 8 hours |
| Lighting time | About 11 hours |
| Accessaries | USB rechargebable cable,Nokia small tip,Samsung D800,Moto V3,Sonny Ericcson tip |
| Size | Elec. box: 224*109*190mm Panel: 505X465X25mm Advantage: A handle is convenient to carry by hand |
| Carton size | (Elec. box) 545*325*450mm/4sets, (panel) 525*485*215 /8pcs |
| Weight | (Elec. box) N/W:32.20kg, G/W:33.40KG/4sets; (panel) N/W:27.0kg, G/W:27.70kg/8pcs |
| 20GP/40GP | 271ctns(1084pcs) / 583ctns(2332pcs) |
Products Show :
....
