Off grid solar system :
solar panel -- controller -- battery -- off grid inverter
when sunny days, solar panel produce power to supply house equipments directly, excess power will be storage in battery. when no sun ( bad weather day or at night ), off grid inverter take power from the battery to supply house equipments directly.
of course, off grid inverter with " battery first, the grid for back-up function ". that means , when bad weather last so long that there is low power in battery, off grid inverter can auto transfer to the grid to take power to supply AC loads and charge battery.
off grid 1000w home solar system solar power system
| 1000W load system | |||||||
| Load | Model | Load power | Unit | Work time (one day) | KWH (one day) | ||
| Light | 11W | 6 | 4 | 264Wh | |||
| Computer | 100W | 1 | 5 | 500Wh | |||
| Printer | ink | 30W | 1 | 1 | 30Wh | ||
| Fax | ink | 150W | 1 | 1 | 150Wh | ||
| Fridge | 150L | 100W | 1 | 24 | 2400Wh | ||
| Tv receiver /VCD | 25W | 1 | 6 | 150Wh | |||
| Tv | 21 inch | 70W | 1 | 6 | 420Wh | ||
| Water pump | 200W | 1 | 0.5 | 100Wh | |||
| total | 741W | 4014Wh | |||||
| 1000W solar power system | |||||||
| System name | Total capacity | Model | Power | Unit | |||

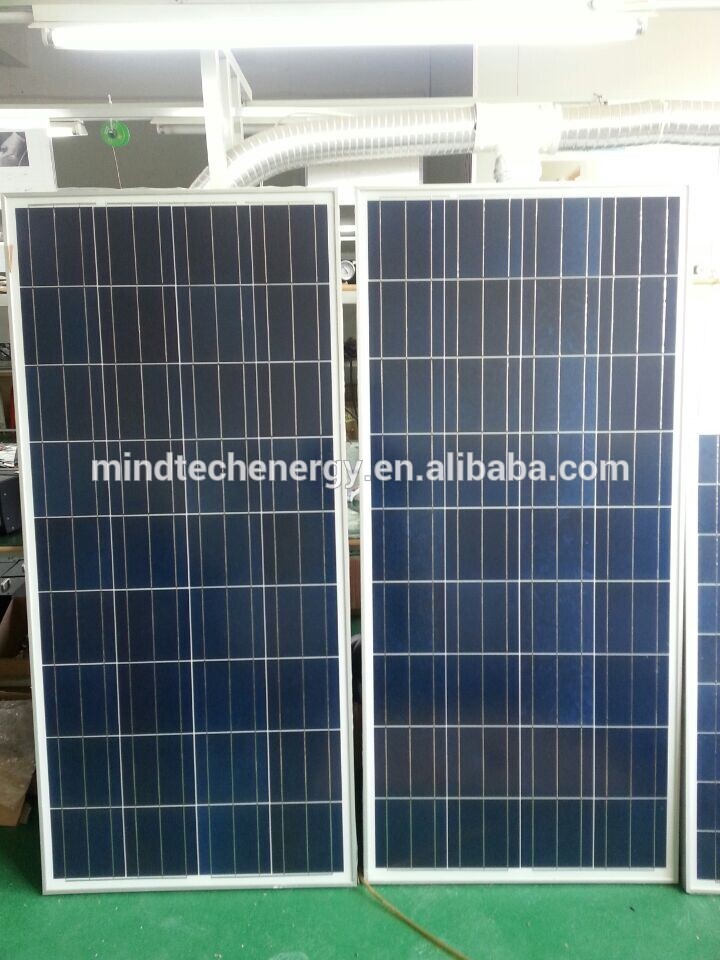

| Solar panel | 1200WP | Mono-200W | 200W | 6 | |||
| Solar battery | 600AH/24V | 12V200AH | 200AH/12V | 6 | |||
| Solar controller | 50A/24V(LED) | 24VDC/50A | 50A/24V | 1 | |||
| Off-grid inverter | 1000W | 24VDC/1000W | 1000W/24V | 1 | |||
Mindtech is a manufacturer of solar energy systems, solar lanterns, solar charger, LED bulb lamps, led down lights, Led strips, Led tubes, led spotlights, led flood light and led flashlights in China who have been in this field for years. Our products have achieved CE, RoHs, Fcc certificates, You are also welcomed to test our lights as sample first about the quality. Please feel free to contact us for additional information.
Mindtech possess professional research and development team of more than 5 employees which is lead by senior engineers. And there are hundreds of employees in our factory. Our Factory Mindtech Optoelectronic Limited. Donglian Industrial Zone, Kengzi Road, Pingshan New District, Shenzhen, Based on the superior geographical position, we are thinking more for our customers.
We offer high quality products and reasonable prices to our esteemed partners, willing a good cooperation with you in the near future!
Click Here For More About Our Company!
1. Q: Are you a factory or a trading company?
A: We are a factory with more than hundreds of employees. Welcome OEM and ODM, 5 employees which is lead by senior engineers are services for you.
2. Q: What"s the scale of your factory? And what is the annual capacity production of your company?
A: The factory building covers an area of 800 square meters, and annual output exceeds 800 million, , all products exported abroad.
3.Q: The cables that comes with the system would be standard, can they be extended in case there is the need
A: yes, we can make the length of cable according to your requirement, but there is a cost increased accordingly.
4. Q:Are the bulbs used are specially made or any normal LED bulb could be used
A: It is applied for DC12V bulbs, the output current is not over 3A for total loading bulbs. If you have DC12V bulbs, you can replace the current ones
5. Q: Should all the bulbs be of the same wattage (w)
A: No, you can use different types, but make sure that the output current is not extent over 3A.
6. Q:When it is being charged during the day with solar panel, can the AC output be used
A: The electric appliances can be used during charging, but please make sure there are power enough inside to run the appliances.
7. Q: After the battery is dead, how do you replace it?
A:For replacing battery, please open the top housing, replace a new battery, please note, please connect the cable in CORRECT color, that means Red cable connect to the Red terminal on the battery, Black cable to the Black terminal. Otherwise the PCBA will be burned. Thanks!
8. Q: The cables are standard, 5m- how do you extend the cables, ones you have received the system and you found that one or two of the rooms would need extra length to reach that room? Can you put extension cable between the bulb and the box?
A: Yes, of cause we can add extension cable in case of consumer requires more length. Our standard length is 5m, we can add another cable to connect the current 5m cable.
