2020 New arrived novastar pure black SMD 10x12ft 500 x 500mm panels outdoor p3.91 led screen
LED Module Parameters | ||
| Pixel Pitch | 3.91mm |
Pixel Density | 65,536dots/m² | |
Drive Duty | 1/16scan | |
Module Size | 250mm x 250mm | |
Module Resolution | 64dots x 64dots | |
Module Weight | 0.65kg | |
LED Cabinet Parameters | ||
| Cabinet Size | 500mm x 500mm |
Cabinet Resolution | 128dots x 128dots | |
Module Qty | 4pcs | |
Physical Resolution | 16,384dots | |
Cabinet Weight | 7.5kg | |
Cabinet Material | Die-casting Aluminum | |
LED Screen Parameters | ||
| Best Viewing Distance | 3.9m - 200m |
Best Viewing Angle | H:160°, V:160° | |
Refresh | 3,840Hz | |
Brightness | 4000nits-4500nits | |
Ave. / Max. Power Consumption | 195W/m², 650W/m² | |
Waterproof | IP65 | |
Lifespan | 100,000 Hours | |
Maintaining Type | Front & Rear optional | |
Key Features

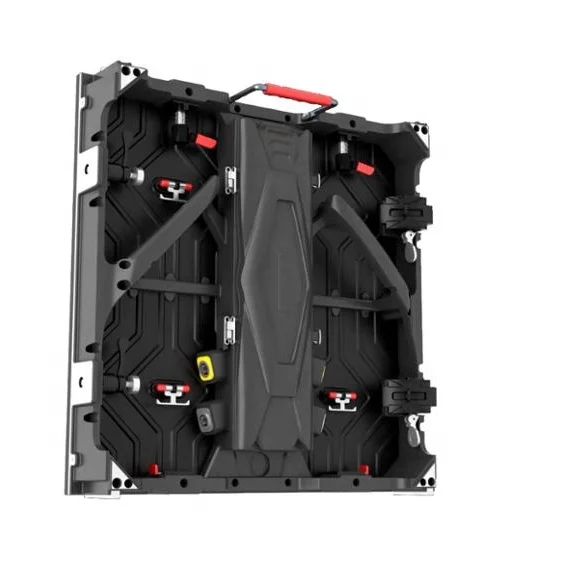

1. With die-casting aluminum housing, only 7.5KG/Panel, and 80mm in depth, easy installation and disassembly.
2. MP p3.91 die-casting aluminum cabinet adopts die-casting aluminum material and unique quick-lock design that make seamless splicing and fast installation.

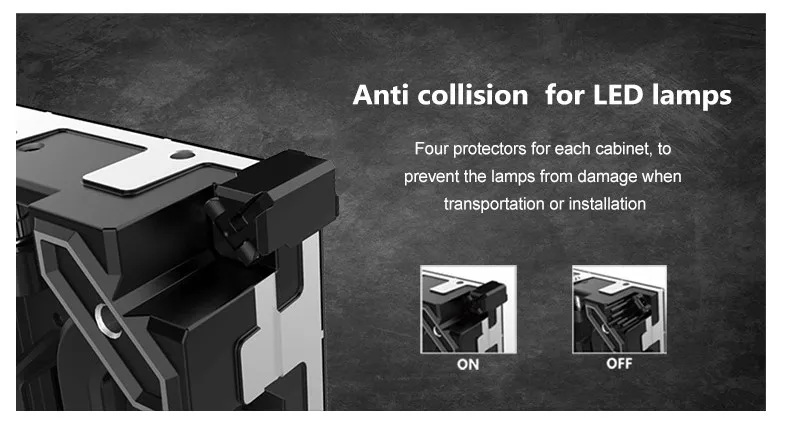

3. Cabinet is with four corners Anti- design,this can avoid cabinet crush,and protect the leds during transportation and installation ,which reduce maintenance cost,reduce the likelihood of any service issue.
4. MPLED p3.91 die-casting aluminum cabinet adopts advanced encapsulation and SMT technology to ensure perfect uniformity and flatness of LEDs. The image has no dirty spot even when you stand at 140 degree vertically.
Front and rear maintenance available
Install Type
Our Project
How to Order?
You are just 6 simple steps:
1. Know your application, indoor or outdoor use, fixed install in one place or move often.
2. Know you desired size or available space for the LED Display
3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.
4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.
5. Choose your resolution (pixel pitch) depending on your need and your budget.
6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right led display for you.
