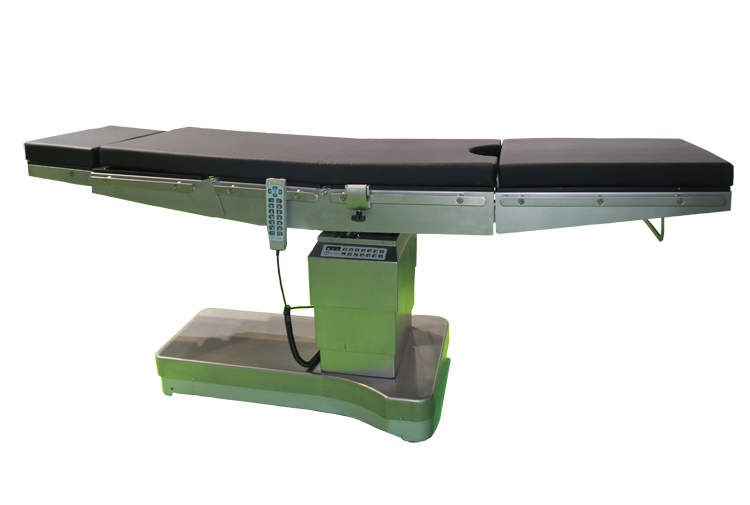

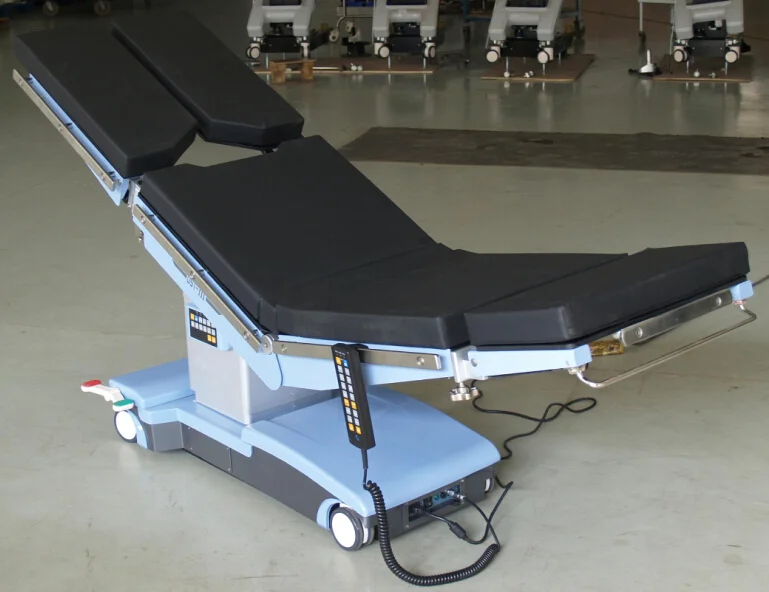

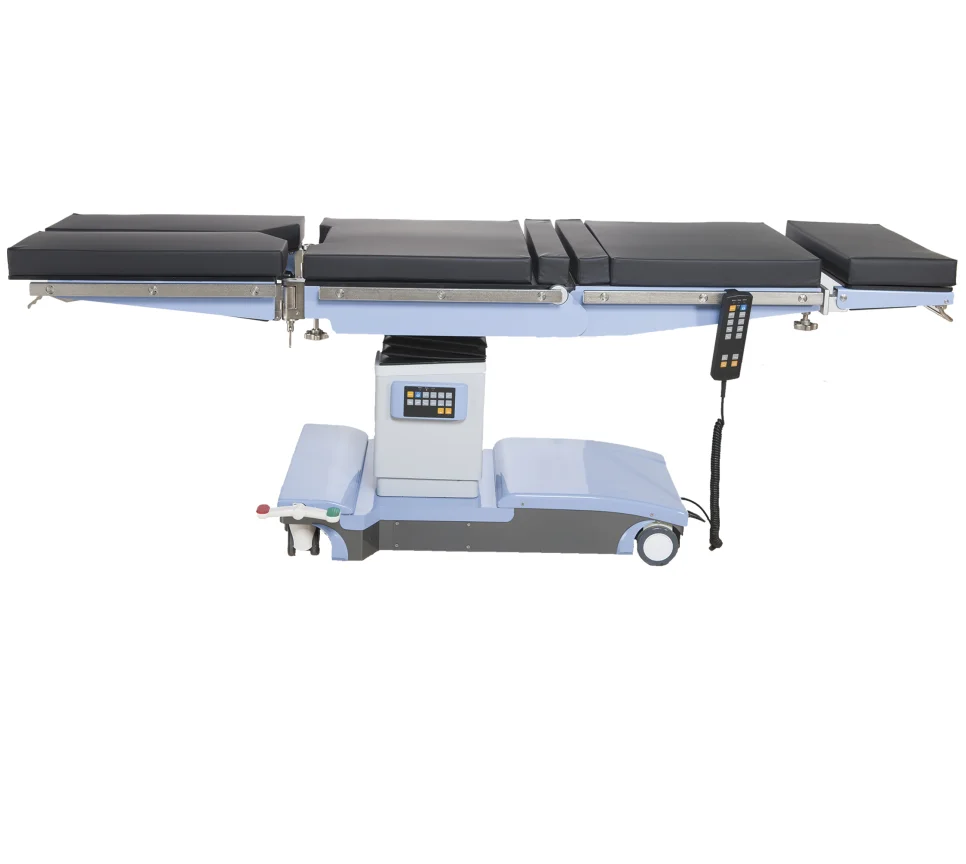

Hospital medical equipment electric hydraulic operating table ot table
Click on the image to view the original image
Product： views：4Hospital medical equipment electric hydraulic operating table ot table
Branch： MT-MEDICAL
Type： Operating Table
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:45
  Negotiated
Product Details
Overview
Quick Details
Brand Name:
MT-MEDICAL
Model Number:
EHOT-M2
Place of Origin:
Shanghai, China
Instrument classification:
Class I
Material:
Stainless steel
Table Size:
(2015*540)±10mm
Application:
Surgical Room
Brand:
MT-MEDICAL
Packing:
Wooden Case
Height adjustment range:
(650±20)mm Max height: (1000±20)mm
Warranty:
1 Years
G.W.Of overall table:
300kgs
Certificates:
CE/ISO/FDA
Power:
Electric
Type:
Operating Table
Power Source:
Electricity
Supply Ability
Supply Ability:
10000 Unit/Units per Month Operating table
Packaging & Delivery
Packaging Details
standard export wooden packing
Port
Shanghai
Lead Time:
Quantity(Units)1 - 56 - 1011 - 15 >15
Est. Time(days)101530To be negotiated
Video Description
Product Description



Hospital medical equipment electric hydraulic operating table ot table

1.the application of modern and humanism combined with the design concept, using electric imported hydraulic transmission technology,follow the development trend of the clinical operation,meet the image observation and diagnosis of the current operation process requirements.

2.product is easy to operate,strong versatility,wide application ,material selection, workmanship excellent,quality reached the international level.

3.Fully meet the general surgery,heart,kidney,thyroid,extracorporeal circulation,head and neck, gallbladder and pleura,department of urology,department of orthopedics, department of gynecology,rectum,spine surgical operation requirements.

Technical Parameters

Table size:

(2015*540)±10mm

Height adjustment range:

Min height: (650±20)mm Max height: (1000±20)mm(electric)

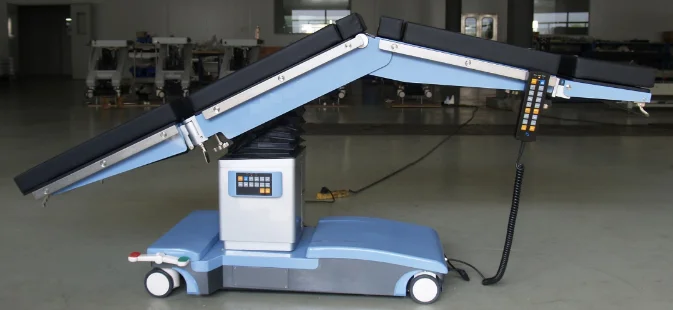

Trendelenburg & Re-trendelenburg

25±2°& 25±2°(electric)

 Lateral tilt:left tilt: 22±2°  right tilt: 22±2°(electric)

Leg section adjustment range:

28±2° lower: 90±2°(manual)

Back Section Adjustable range:

rasied: 70±2° lower: 32±2°(electric)

Head section adjustment range:

rasied: 30±2° lower: 90±2°(manual)



Lifting route

(350±20)mm(electric)

G.W. Of overall table:

300  kgs



Table panel x-ray attenuation cofficient

≤0.76mmAL

Integrated battery:

Can be Added
 Voltage220V 50Hz or 110V,60HZ for choice

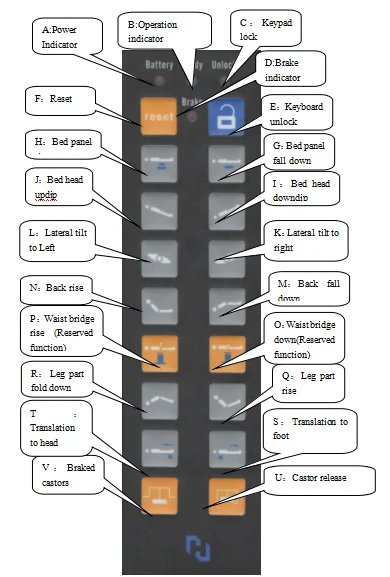

Remote controller:

Attention:Orange parts functions is still not be developed except for one key reset function







  ADVANTAGES AND CHARACTERISTICS:

1.The use of TAIWAN CHOAR-GER hydraulic system, stable speed, reliable performance;

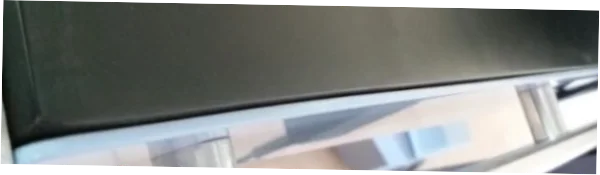

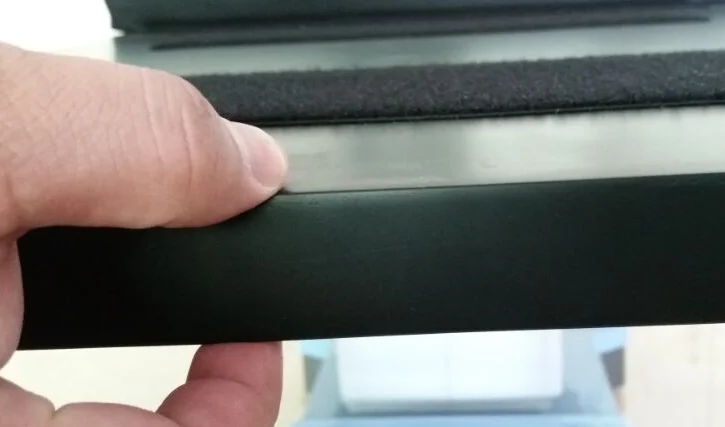

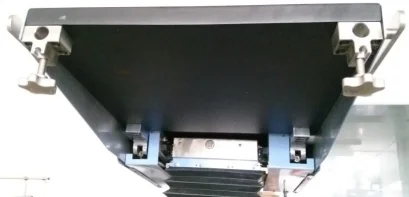

2.The bed panel is carbon fiber, wider and thicked carbon fiber blackboard good for C-arm;

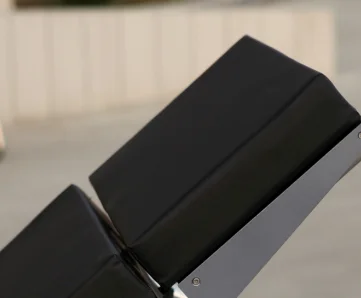

3.detachable high density memory foam mattress;





4.No bridge function, but “V” and revised “V” function Replace that;

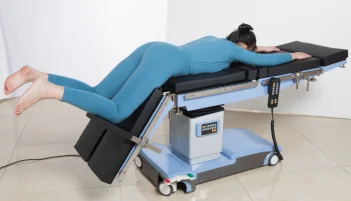

         5.Functions display





6.Double controllers;



7.Battery is optional;



8.Besides of usual functions, it has one key reset function;





Production Flow

  • Robot welding
  • We assemble the Operating lamp in purified workshop
Packing and Delivery

  • Professional packing ,The products is packed by wooden case,safely guard products against damages during shipping.
  • Delivery Details :
  1. Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
  2. If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order



Certifications

  • The products are approved by CE,ISO13485



Warranty

Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A.Offer door to door service;
B.We send you  free parts by courier and technical guidance by video/call;
C.We support you free training .

Trade Shows



FAQ



Q: Are you tradIng company or manufacturer ?

A: We are manufacturer,we have our own R&D team and sales team,We provide you one-stop service.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: What is your payment term?

1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOBShanghai or CIF&CFR

Q: What is your min.order?

A: There"s no minimum quantity.
