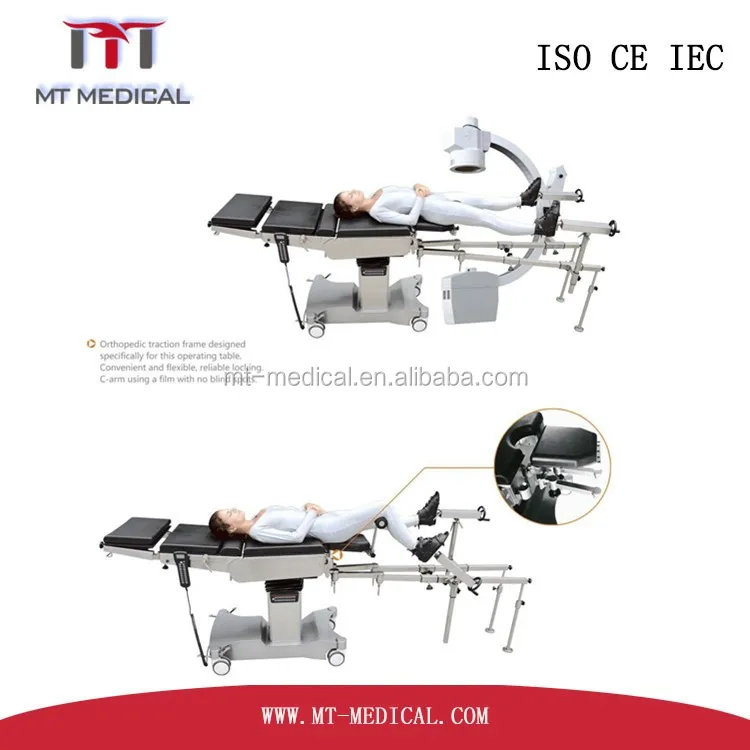

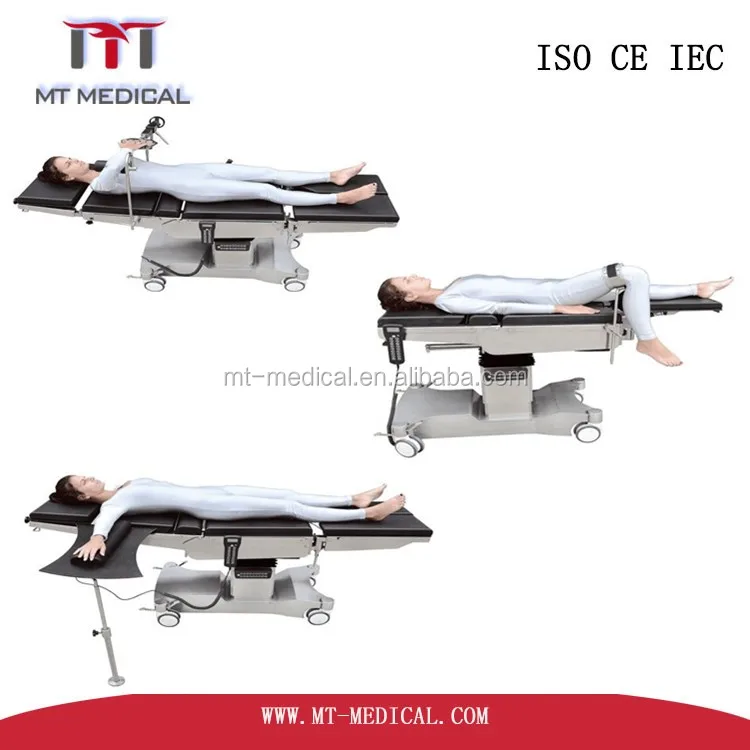

Application of modern technology, combine with the idea of humanized design,meet the requirements of operation in the process of video observation and diagnosis,comprehensive strength,for each part of the human body surgery hospital operating room,i.e.,the brain,heart,blood vessels,extracorporeal circulation,abdominal cavity,the gallbladder excision,renal resection,the neck, cervical vertebra,lumbar spine,spine,back,urology,gynecology,cranial nerve,surgical,rectum,plam traction,upper limb surgy,knee surgery,orthopedics lower limb traction (such as with orthopaedics traction frame) surgery.
| Technical Parameters | |
Total length: | 2220mm(with additional footplate) |
Total width: | 555mm(without side rail) , 600mm(with side rail) |
Head section length: | 300mm |
Back section length: | 380mm |
Main section length: | 540mm |
Leg section length: | 580mm |
Supporting bottom size: | 1030x650x200mm |

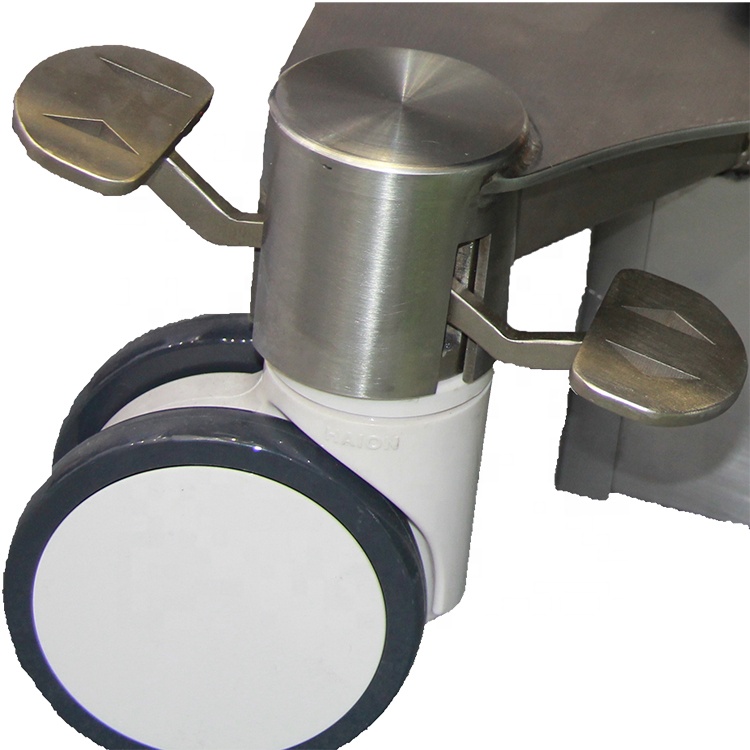

Castor size: | 125mm |
Height adjustment range: | 700~1000mm |
Kidney bridge rise: | ≥110mm |
Sliding movement: | 350mm |
Back section up: | 70° |
Back section down: | 22° |
Trendelenburg: | 24° |
| Re-trendelenburg: | 24° |
| Lateral tilt: | 22° |
Leg section adjustment: | Up 15° Down 90° |
Spread angle of leg plates: | 200° |
Head section adjustment: | Up 40° Down 90° |
N.W. Of overall table: | 350kgs |
Patient Horizontal max loading weight: | 280kgs |
Integrated battery: | Yes,for over 150 movements |
| Voltage | 220V 50Hz or 110V,60HZ for choice |
| | |
1-2years due to different products, and lifetime maintaining.
A. Engineer goes to your hospital and Provide on site customer training and guide,
B.We send the free parts to you by courier and give you technical guidance via online video,
C.We support you free training of products.
