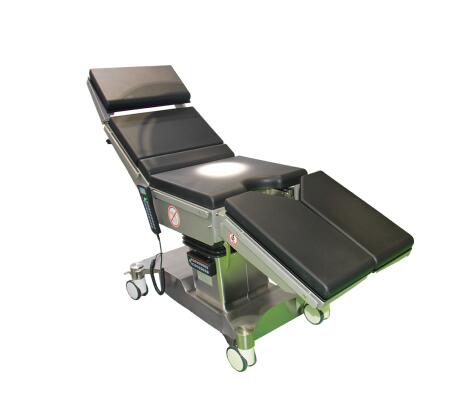

High Quality Maquet Operation Table Operating Table OT table
Application of modern technology, combine with the idea of humanized design,meet the requirements of operation in the process of video observation and diagnosis,comprehensive strength,for each part of the human body surgery hospital operating room,i.e.,the brain,heart,blood vessels,extracorporeal circulation,abdominal cavity,the gallbladder excision,renal resection,the neck, cervical vertebra,lumbar spine,spine,back,urology,gynecology,cranial nerve,surgical,rectum,plam traction,upper limb surgy,knee surgery,orthopedics lower limb traction (such as with orthopaedics traction frame) surgery.
| Technical Parameters | Chinese Factory Prices for Medical Equipment Operation Table with Multi-fuction |
Total length: | 2220mm(with additional footplate) |
Total width: | 555mm(without side rail) , 600mm(with side rail) |
Head section length: | 300mm |
Back section length: | 380mm |
Main section length: | 540mm |
Leg section length: | 580mm |
Supporting bottom size: | 1030x650x200mm |
Castor size: | 125mm |
Height adjustment range: | 700~1000mm |
Kidney bridge rise: | ≥110mm |
Sliding movement: | 350mm |
Back section up: | 70° |
Back section down: | 22° |
Trendelenburg: | 24° |
| Re-trendelenburg: | 24° |
| Lateral tilt: | 22° |
Leg section adjustment: | Up 15° Down 90° |
Spread angle of leg plates: | 200° |
Head section adjustment: | Up 40° Down 90° |
N.W. Of overall table: | 320kgs |
Patient Horizontal max loading weight: | 300kgs |
Integrated battery: | Yes,for over 150 movements |
| Voltage | 220V 50Hz or 110V,60HZ for choice |
| | |
|
|
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There"s no minimum quantity
