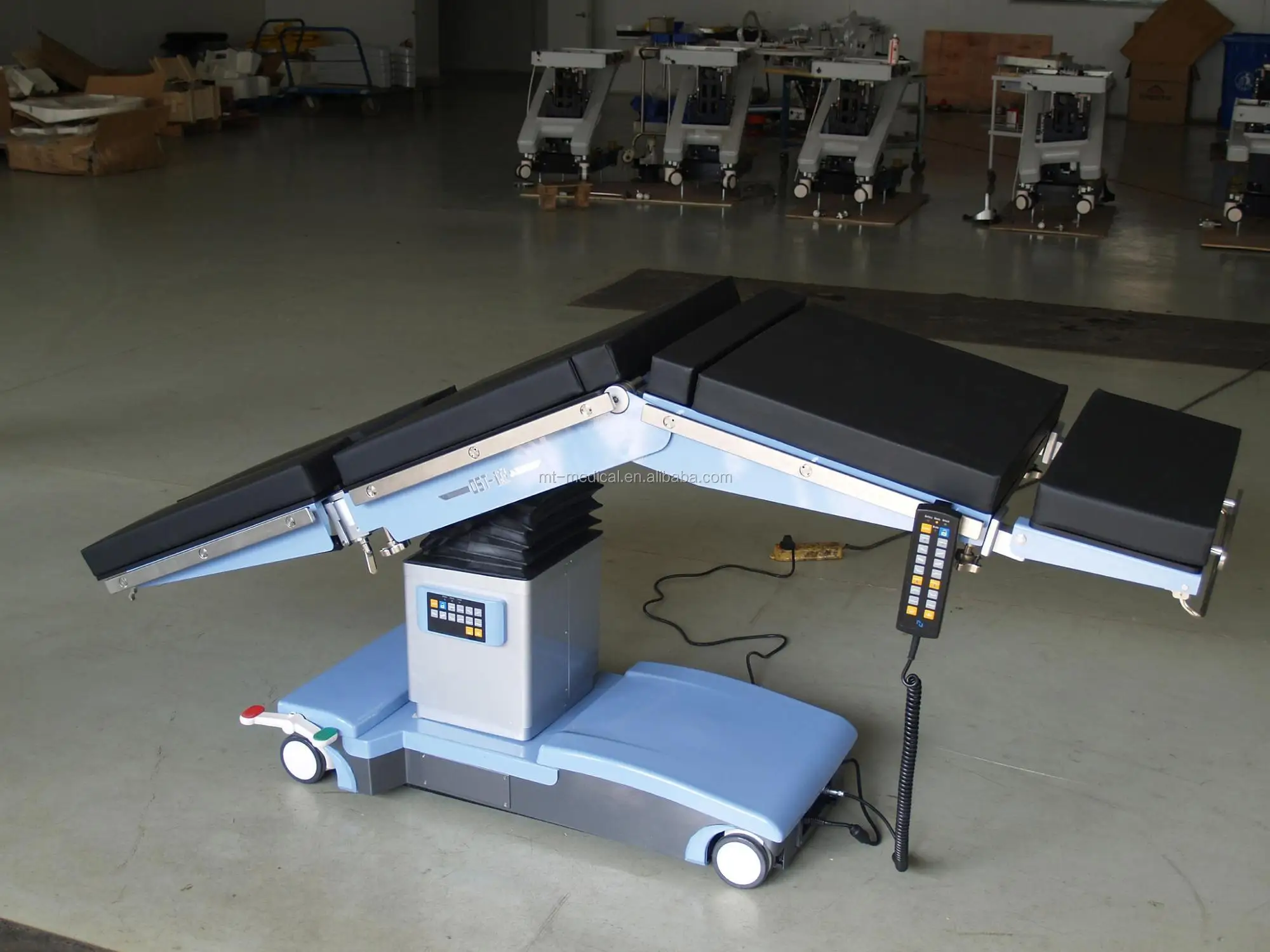

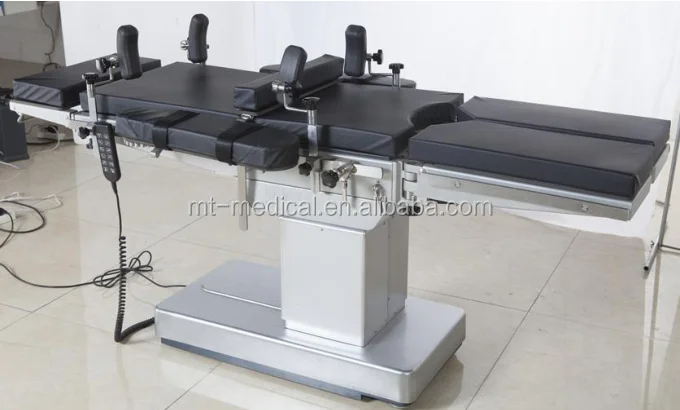

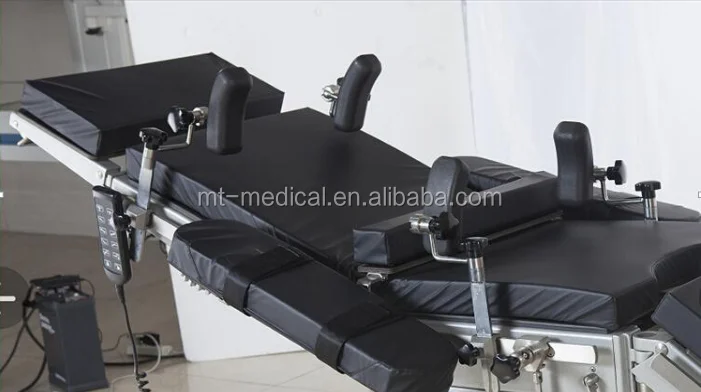

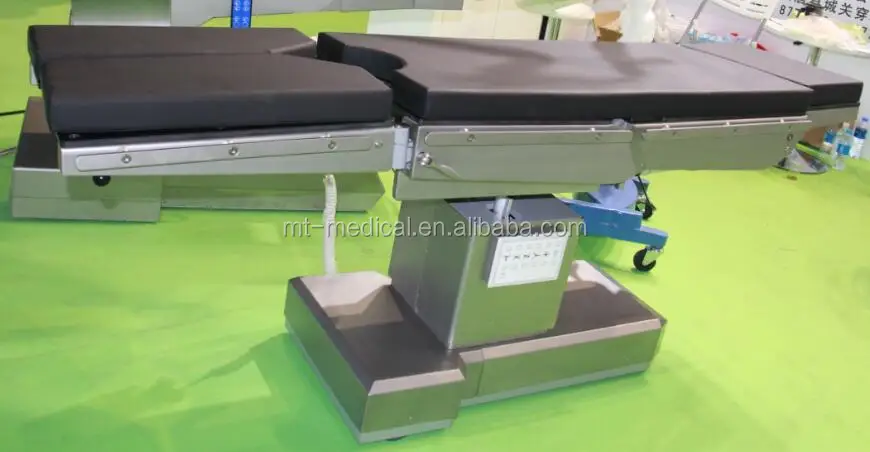

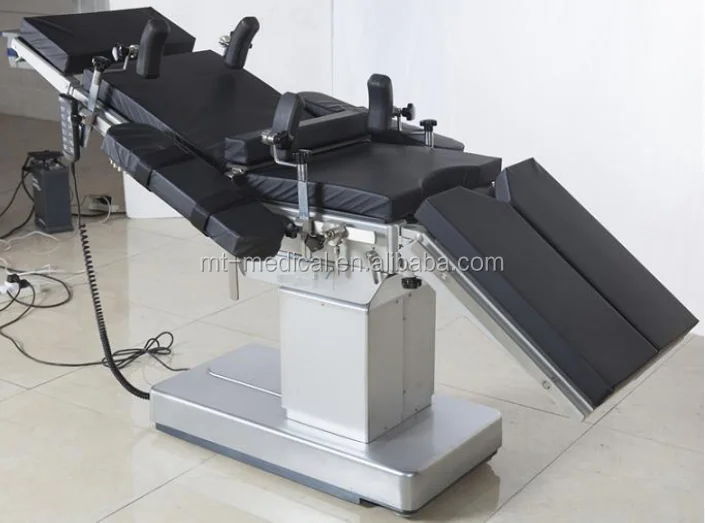

Cheape multifunctional medical electric surgical operating table
Operation Table
1.The table is equipped with AutoCharge device, it can keep the table being used when emergency power shut off.

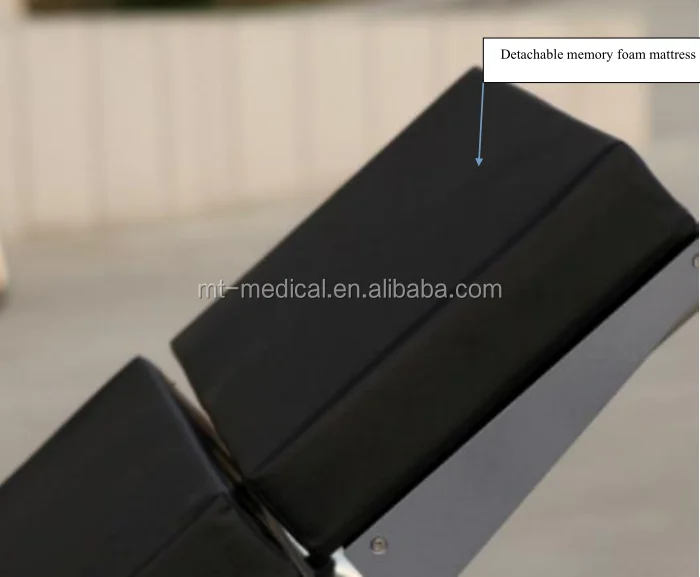

2.The mattress is made of foam polyurethane, acid and alkali resistance, high temperature resistance and easy clean.
3.The wheels and height adjustment, forward and backward tilting , right and left tilting, back board folded are all controlled by linear motor. Not only safe but convenient.

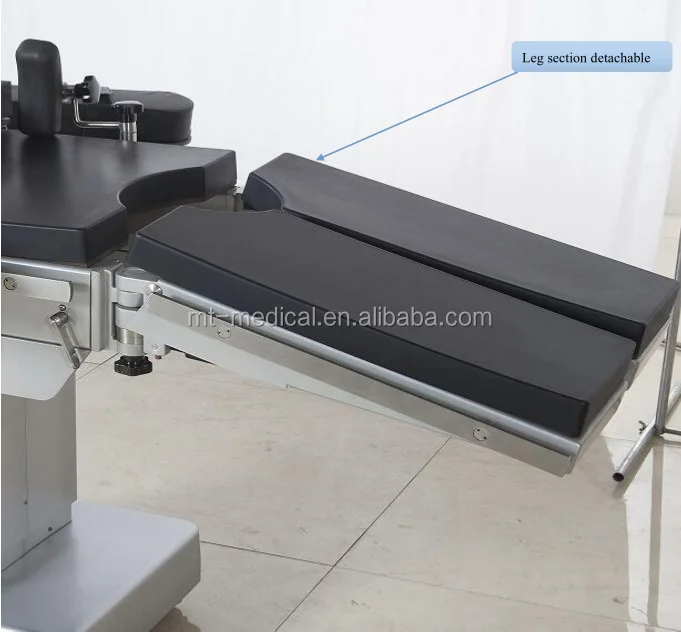

4.The double-layer tabletop is suit for X-ray examination when you operate the leg board can be abducted 180°,folded 90°and detached.

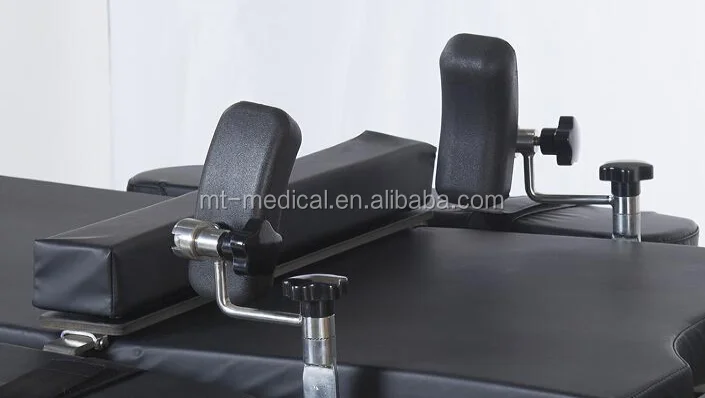

5.Accessories, guide rail, base and column shell are all made of stainless steel
| bed panel size | 2040 x520mm |
| bed height from the ground(without pads) | 850-1050mm |
| lifting route(electric) | 200±20mm |
| horizontal stroke | 300±20mm |
| forward and backward tilt | 20°±2°/20°±2° |
| lateral tilt | left 19°±2°/right 19°±2° |
| back section fold | up ≥65°±2°/down ≥30°±2° |
| leg section fold | down 90°/side tilt 90° |
| head section fold | up ≥20°±2°/down ≥90°±2° |
| external kidney bridge lifting | 120±10mm |
| table locking | electric |
| Power supply | AC 220V 50Hz 750AV |

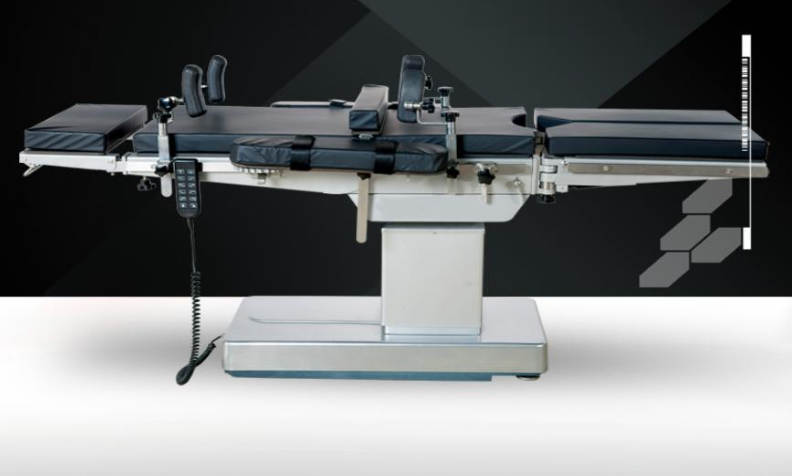

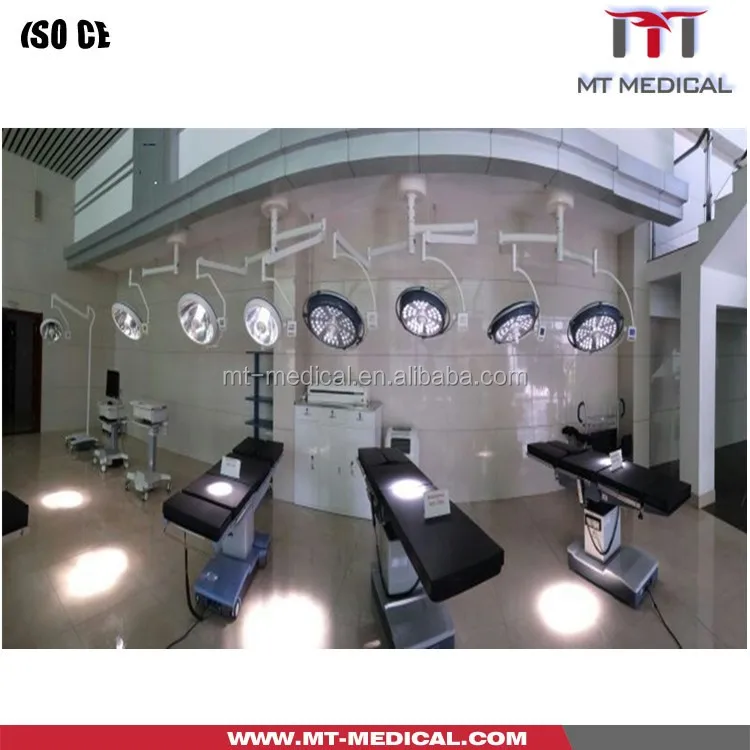

Similar operation table
1).How to order your operating lamps?
When you are ready to order, please contact us to confirm current prices, payment arrangement, availability, and delivery time of your medical equipment or accessories. Whenever possible, we request a hard copy purchase order to ensure that your order is processed properly.
2).What"s your product guarantee?
Normally we offer 24 months warranty, and lifetime maintenance. We can also extend the warranty time per client’s request.
3).Does your product has any certificate?
Almost all our medical equipment is CE, ISO approved, and some of them has FDA certificate.
4).What"s your payment terms?
We can accept T/T,Western Union, Money Gram, Paypal, Alibaba Trade Assurance, L/C,cash etc
5).What"s your product lead time?
Normally all our medical equipment are in stock, so we can deliver goods within 3 workdays after receipt payment.
6).How to maintenance the product if it has problem?
We have professional engineers,they will solve your problem by communicating with skype or phone. If the machine is totally broken and can not work, send it back to us and we will send a new one to you.
7).What"s your training policy?
Medsinglong offers free product training for clients.Clients can choose video,voice,email,skype for online training.Moreover, Medsinglong has client training courses every year, client can visit Medsinglong for face to face training.Meanwhile,Medsinglong support training in client"s office
as required.
