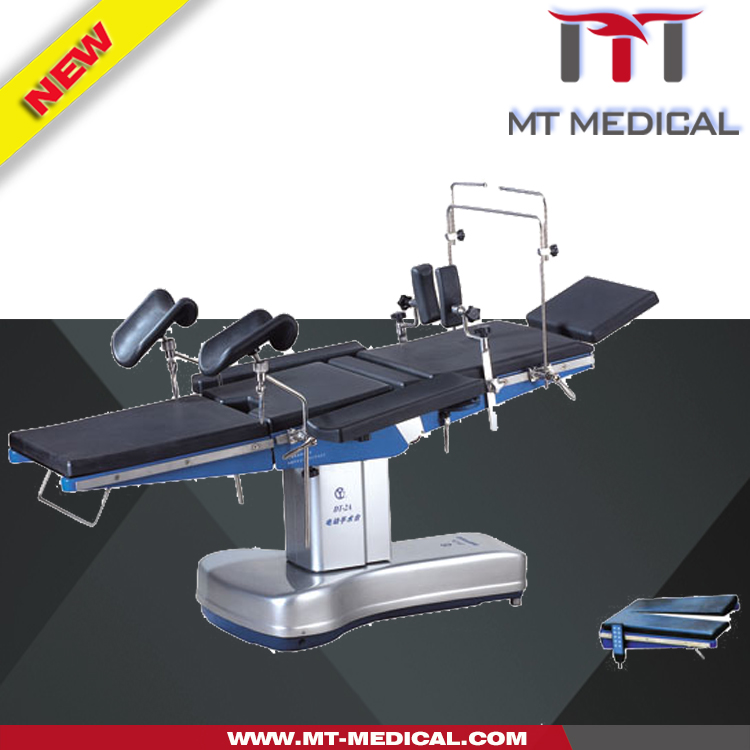

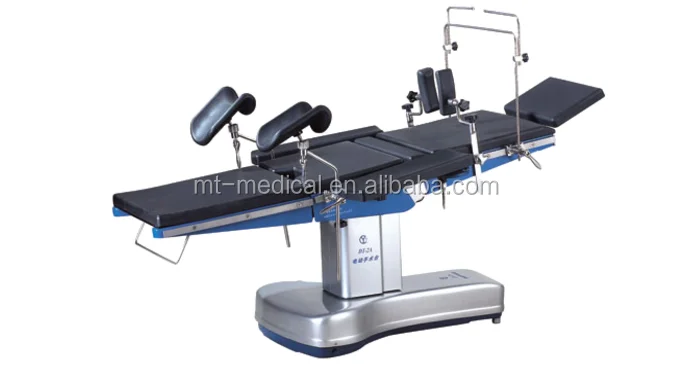

Operating Table electro-hydraulic with accessories for general Orthopedic and Gynecology Surgery
1.The controller device lock key protecting from misoperation.
2.The table is made of penetrable X-ray material, there is cassette guide rail under the table which make radiography.
3.The table is fixed a button which can control the electric wheel to draw in and put out so that the table can be pulled easily.
4.Accessories and guide rail are made of stainless steel, polyurethane material etc.
5.The main accessory hydraulic pump and electromagnetic value are made of imported component from Taiwan.
6.The mattress is made of form polyurethane, acid and alkali resistance, hight emperature resistance and easy clean.
7.The head board and leg board are adopted special imported gas-spring from Germany, it’s convenient operate.
| Technical Parameters | Technical Parameters |
Total Size: | 1960*480mm |
Height adjustment range: | 690~930mm |
Back section up: | 75° |
Back section down: | 10° |
Trendelenburg: | 20° |
| Re-trendelenburg: | 25° |
| Lateral tilt: | 18° |
Leg section adjustment: | Up 45° Down 90°(ps:detachable) |
Kidney bridge elevation: | ≥80mm |
Head section adjustment: | Up 45° Down 50°(ps:detachable) |
G.W. Of overall table: | 270kgs |
Wood carton packing volume: | 1750×750×900mm |
| Voltage | 220V 50Hz or 110V,60HZ for choice |
Table positions:
Degrees from horizontal
Offer Backup Battery in case of no power or malfunctioning.
Controllable global movements to include up/down, forward/back, left/right and Trendelenburg and reverse Trendelenburg. Yes
Hand control - remote control Yes
Lateral bars (siderail) all along the table to hook for surgical accessories. Yes
Patient complete fasten accessories. Yes
Accessories for orthopedic extension, upper and lower limbs. Yes
Accessories for gynecology surgery Yes
Power requirements: main and Battery Yes
Product Features
- polyurethane mattress(ps:detachable)
- C-arm, back section up and down controlled by electric
- no integrated battery
- no one key reset function
- no "V" and reversed "V" function
- electric hydraulic system
|
|
|
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A. Offer door to door service;
B.We send you free parts by courier and technical guidance by video/call;
C.We support you free training .
