Interventional Imaging Table
You are finding a carbon fiber C-arm surgery table with CE, ISO and FDA?
You are finding a professional manufacturer as your strong support?
You are finding there are a lot of suppliers on alibaba, you can judge who is better from them?
How about a person helping you solve with all the problem and make you relax and sit down?

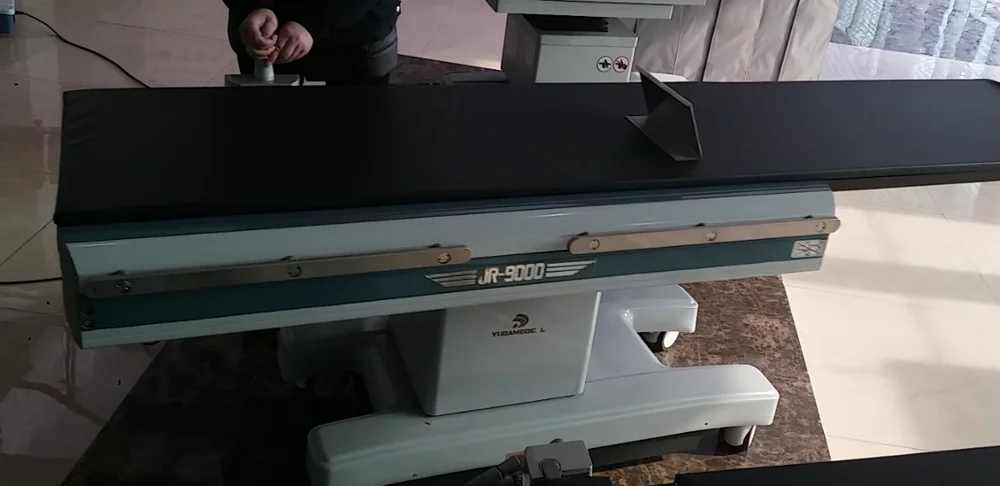

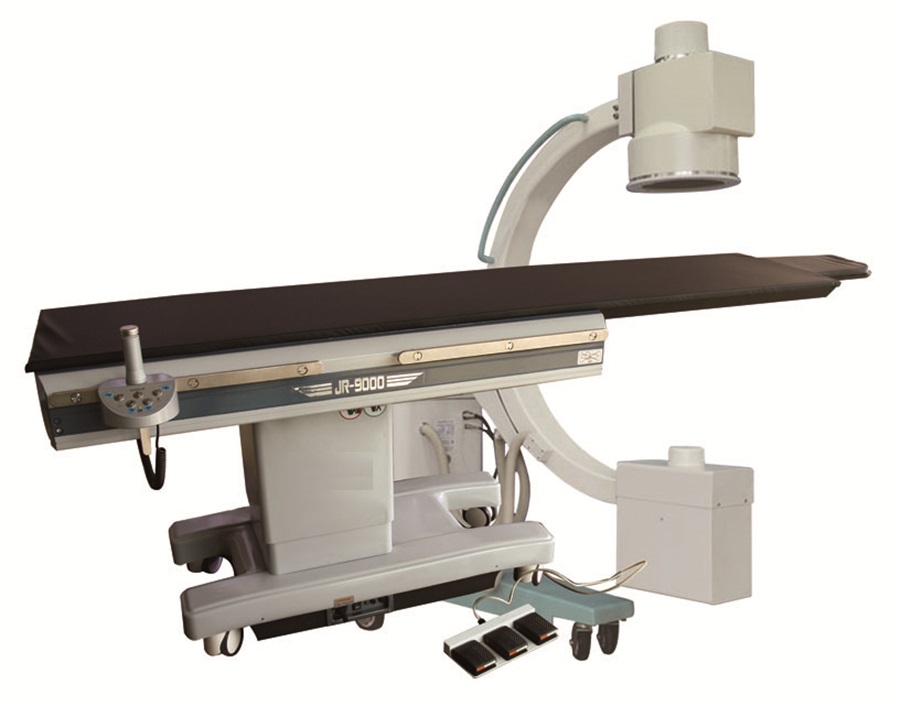

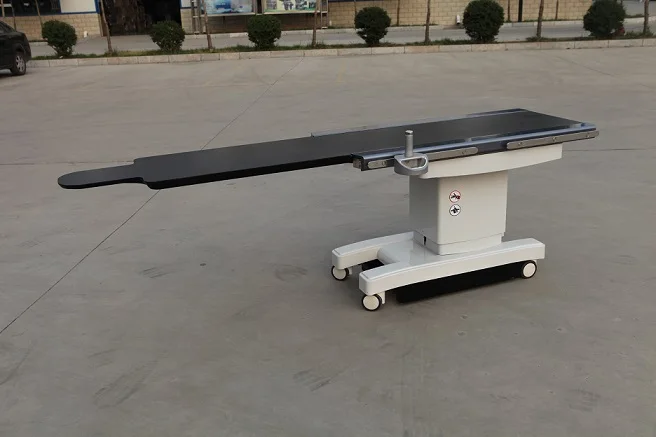

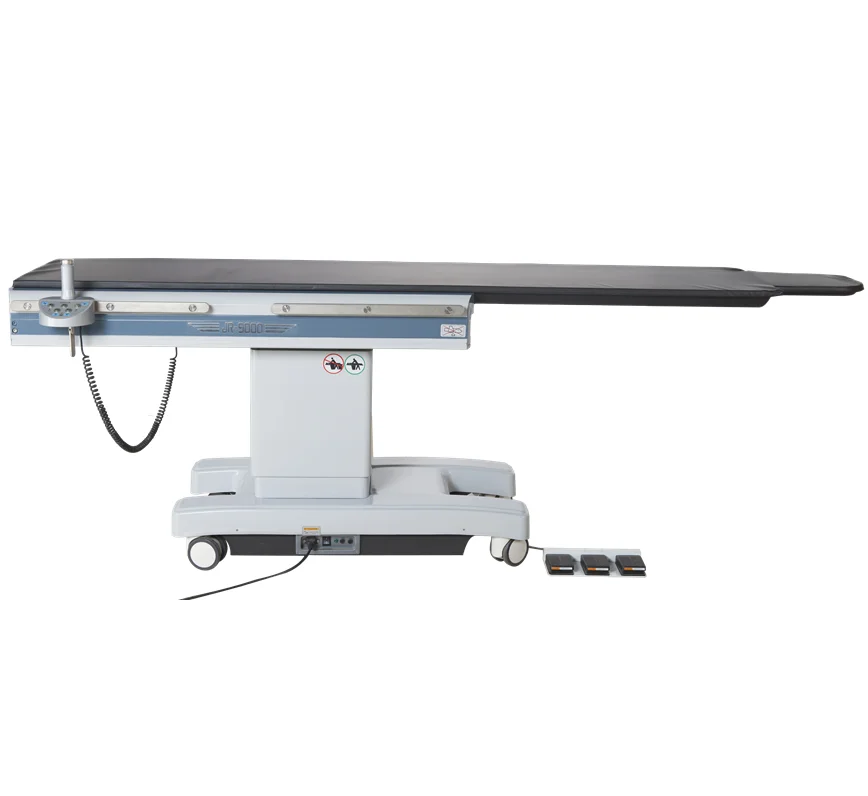

JR-9000 catheterization table adopt the advanced electric, mechnic transmission technology, full carbon fibre table top, specially design for various movable medium, small C-arm to imaging of the Cardiovascular, peripheral-vascular, catheterization vascular and Jography and DSA, The product conform the features of logical structure, easy control, graceful outlook, and the function is advanced and achieved the quality of Jatarnalional. According to the clinical practice, it is confirmed as the best quality products in China.
| Bed Panel | |
| appearance | in one body |
| materials | carbon fiber |
| total length | 2500±10mm |
| surface length for penetrating | 1750±10mm |
| length without metal | 1200±10mm |
total width(with side rail) | 685±5mm |
| surface width for penetrating | 465±5mm |
| thickness | 40mm |
| x-ray absorption coefficient(aluminum equivalent) | <=0.44mmAL |
| maximum bearing | 300kg |
| Lateral movement | manual |
| route | 250±15mm |
| locking device | electromagnetic lock |
| Longtitudinal shift | manual |
| route | 250±15mm |
| locking device | electromagnetic lock |
| maximum head out | 1880±20mm |
| the most DaZu department juts out | 1050±20mm |
| Vertical shift | Electric |
| minumum height from floor | 750±20mm |
| route | 350±20mm |
| average speed | 8mm/s |
| Bed move control | |
| bed surface lifting/horizontal shift/lock | control panel |
| bed body lock | electric |
| 4 castor wheels | in all directions |
| Power supply | |
| DC:24v | panasonic lead-acid batteries |
| single-phase AC power | 220VAC 60/60Hz |
| maximium input power | 300VA |
| insurance tube | F5AL250V(5*20MM) |
| Net Weight | 390kg |
| |
| |
| |
| |
|
|
|
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A.Offer door to door service;
B.We send you free parts by courier and technical guidance by video/call;
C.We support you free training .
