High Level 4D Color Ultrasound C-60 Portable ultrasound machine
Detailed Product Description
Imaging optimization technology;
Compound enhance technology
Imaging processing technology
Imaging optimization technology
Compound enhance technology
Multi-beam parallel processing technology
Tissue harmonic imaging
Displaying mode
B, 2B, 4B, B/M, M
B/C, B/C/D, B/D CFM, PRF
PW, velocity, power (direction), histogram
Triplex / Duplex
Probe

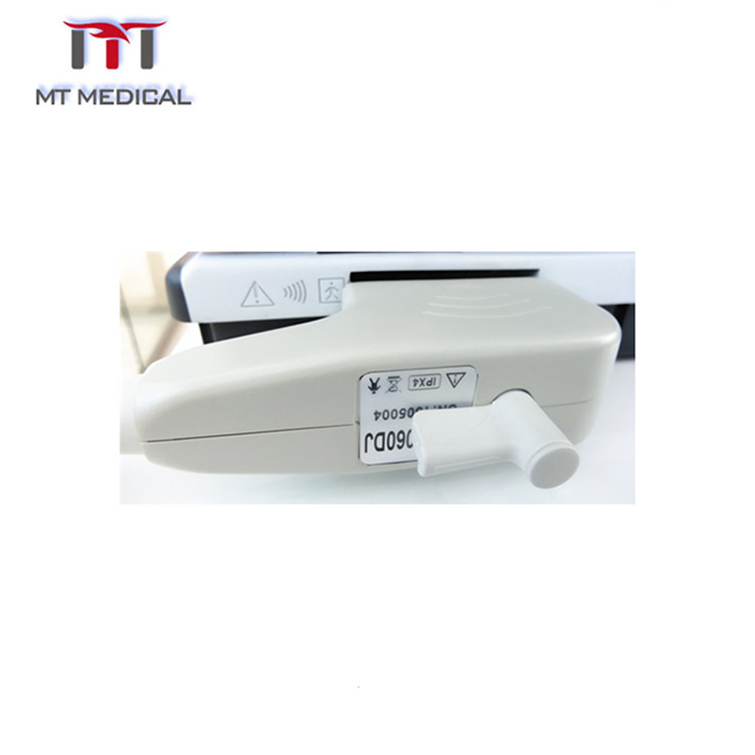

Electronic convex, linear, transvaginal
Wide band multi-frequency
Technical specifications:
Displaying mode | B,BB,4B,BM,M,PW,B/C,B/C/D,B/D,duplex, triplex, part zoom, CFM, CPA |
Signal processing: | Full-digital beam forming, dynamic filter, space-time filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing, dynamic aperture in all fields |
Image processing | Image persist THI Speckle-reduction Color coder, Power adjustable Multi-frequency Smoothing function Edge enhancement Image optimizing disposal One-key optimization Probe mark Image conversion Up/down conversion Left/right conversion Doppler Sound output volume adjustable Wall filter adjustable Base line adjustable Sampling frame adjustable Area changeable(angle changeable) Spectrum sampling volume adjustable Spectrum sampling volume angle adjustable PRF adjustable Image processing: |
Gain control | TGC, PW Gain, CFM gain |
General measurement | B mode-distance, circumference, area, volume, ration, angle, % stenosis, histogram M mode- distance, time, velocity, heart rate |
OB packages: | EDD table :GS ,BPD, CRL,FL,HL,TAD,LV,OFD,NT,AC,HC,AFI GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve OB measuring and calculation report |
Gynecological packages
| Uterine measurement (Cervical length, endometrial thickness, uterine volume) left/right ovary measurement (Length, high, width) left/right follicular measurement Gynecological measuring and calculation report |
Urology packages: | left/right kidney measurement vesicant urinary /After voiding bladder measuring Urology measuring and calculation report residual urine’s measurement |
Anthology packages: | Prostate Testis Anthology measuring and calculating report PPSA,PSAD calculation |
Peripheral vascular measurement | % stenosis, Diameter stenosis rate, Peripheral vascular measuring and calculating report |
Small parts Measurement | Thyroid,Mammary gland,Mass,Small parts measuring and calculating report |
Orthopedic surgery measurement | Left/right hip |
Cardiac Measurement Package | Heart rate, Valve speed, LV, aortic, mitral, ventricular |
Doppler Measurement | Time Heart Rate Velocity General Measurement Doppler automatic measurement Doppler tracing (auto/manual) |
Body mark | Abdominal,Anthology,Cardiology,Gynecology,Musculoskeletal,Obstetrics,Pediatrics Small parts,Urology |
Comment and display | Real time clock,Comment in image area,Scanning density,TI value,MI value |
Cine loop | Automatic cine loop frames, Replay of stored screen frames, Selection of replay speed, Frame replay, Replay stored files, Cancel, replay, pause control |
Image storage format | BMP,JPEG,PNG,DICOM, |
Image storage size | ≥320G |
Installed work station | OB report, GYN report Urology report Cardiac measurement - LV report Cardiac measurement - mitral report Cardiac measurement - Ventricular report Small parts measuring report Peripheral vascular measuring report Diagnostic template Printing report |
Input/output ports: | VGA USB port DICOM port(network port) RS232 Laser printer (option) Video printer (option) |
Standard Configuration | Main Unit, 15 inch high definition color LCD, 3.5MHz multi-frequency, User’s Manual, 60G(increasable) Image storage size |
Option | Probes, trolley, video printer, laser printer, puncture guide standard |
Cardiac Vascular Color Doppler Portable Ultrasound good price
1, 15-inch high resolution LED monitor
2, standard PC LED backlit silicon gel keyboard
3, one key regulation, easy operation
4, rechargeable built-in battery
5, abundant peripherals: DICOM3.0, VGA, video out, USB etc
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet,and other medical furnitures.
.
1. The unique geographical advantage----Hefei,China
2. Stylish products and packaging design
3. More than 20 years manufacturing experience as the guarantee
4. Competitive price and professional experts
5. Excelent customer service awareness
To ensure the healthy, independent and joy life in our homes and communities, we specialize in supplying home healthcare medical equipments .
Our products largely focus on the home care field, helping the elderly or disabled retain their independence and dignity in the daily life.
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There"s no minimum quantity
