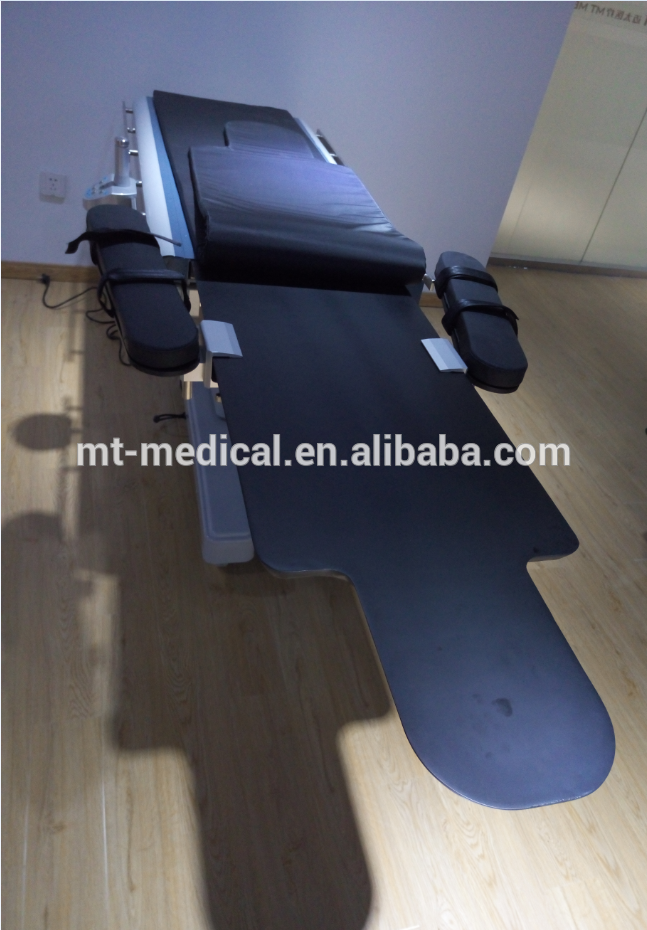

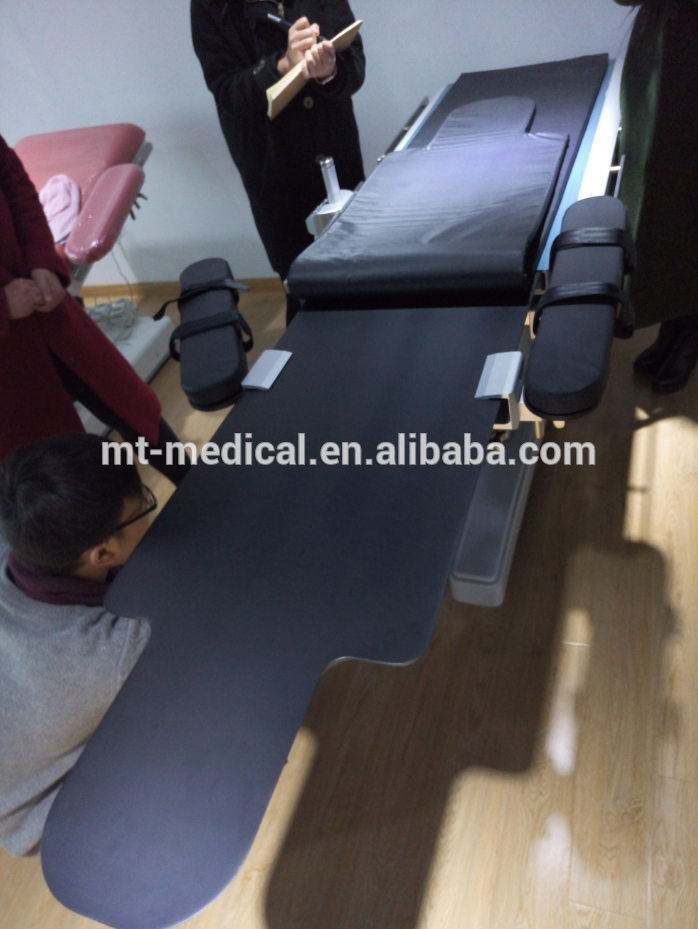

High top tables and chairs Operating room surgical Carbon Fibre massage Table electric massage Table
Certificate
Have passed certificate of ISO9001, ISO13485 international system, GB/T28001 health and safety management system
Application
This table could be used for Endoscopic retrograde cholangiopancreatography(ERCP), work with C arm.
Configuration
1, It adopts the Germany Dunker motor, with electric gear mesh mechanism structure instead of the traditional hydraulic transmission. No need to change oril termly, and no worry about oil leak problem.
2, The bed panel is made of carbon fiber material to reduce X ray absorption. There is maximum table length witout any metal part, which not only meets the requirement for 3D and 360degree X ray photograph, and also extends the lifetime of spheroid tube and main parts of video machine, and reduce the radiation damage to patients and paramedic.
3. With tilt function of trendelenburg, which is specially designed for ERCP, the doctors can achieve the perfect imaging with no need to move the patient.
4, German beeline navigation rail ensures sommth and steady movement of the operating table.
5. Base with ABS industrial plastic, helps prevent glare and impact to doctors during operation, Besides, it is easy to clean and disinfect after operation.
6. Handle control is easy to operate, with indicators of each function. The brake system is safe and senstive.
7.Backup battery is availble for choise, and it can last for one week with full charge(50-80operations) while power off.
Parameters
| Bed Panel | |
| appearance | in one body |
| materials | carbon fiber |
| total length | 2500±10mm |
| surface length for penetrating | 1750±10mm |
| length without metal | 1200±10mm |
total width(with side rail) | 685±5mm |
| surface width for penetrating | 465±5mm |
| thickness | 40mm |
| x-ray absorption coefficient(aluminum equivalent) | <=0.44mmAL |
| maximum bearing | 300kg |
| Lateral movement | manual |
| route | 250±15mm |
| locking device | electromagnetic lock |
| Longtitudinal shift | manual |
| route | 250±15mm |
| locking device | electromagnetic lock |
| maximum head out | 1880±20mm |
| the most DaZu department juts out | 1050±20mm |
| Vertical shift | Electric |
| minumum height from floor | 750±20mm |
| route | 350±20mm |
| average speed | 8mm/s |
| Bed move control | |
| bed surface lifting/horizontal shift/lock | control panel |
| bed body lock | electric |
| 4 castor wheels | in all directions |
| Power supply | |
| DC:24v | panasonic lead-acid batteries |
| single-phase AC power | 220VAC 60/60Hz |
| maximium input power | 300VA |
| insurance tube | F5AL250V(5*20MM) |
| Net Weight | 390kg |
|
|
|
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A.Offer door to door service;
B.We send you free parts by courier and technical guidance by video/call;
C.We support you free training .
