Doppler color ultrasound portable medical scanner machine

Click on the image to view the original image

Product：	views：153Doppler color ultrasound portable medical scanner machine
Branch：	MT MEDICAL
Type：	Portable Ultrasonic Diagnostic Devices
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:50

Product Details

Overview

Quick Details

Type:: Portable Ultrasonic Diagnostic Devices

Brand Name:: MT MEDICAL

Model Number:: C-60plus

Place of Origin:: Shandong, China

Instrument classification:: Class I

Certificate:: CE ISO

Color:: Silver

Warranty:: 1 Years

Display:: LED Monitor Size (Diagonal): 15"

Imaging mode:: 3D

Voltage:: 100 V~240 V

UPS:: Optional

Application:: Abdomen / Cardiac / Obstetrics/Urology / Andrology

Equipment size::: 375mm*360mm*75mm

Supply Ability

Supply Ability:: 10000 Unit/Units per Month portable scanner

Packaging & Delivery

Packaging Details: Carton Case

Port: SHANGHAI/SHENZHEN

Product Description

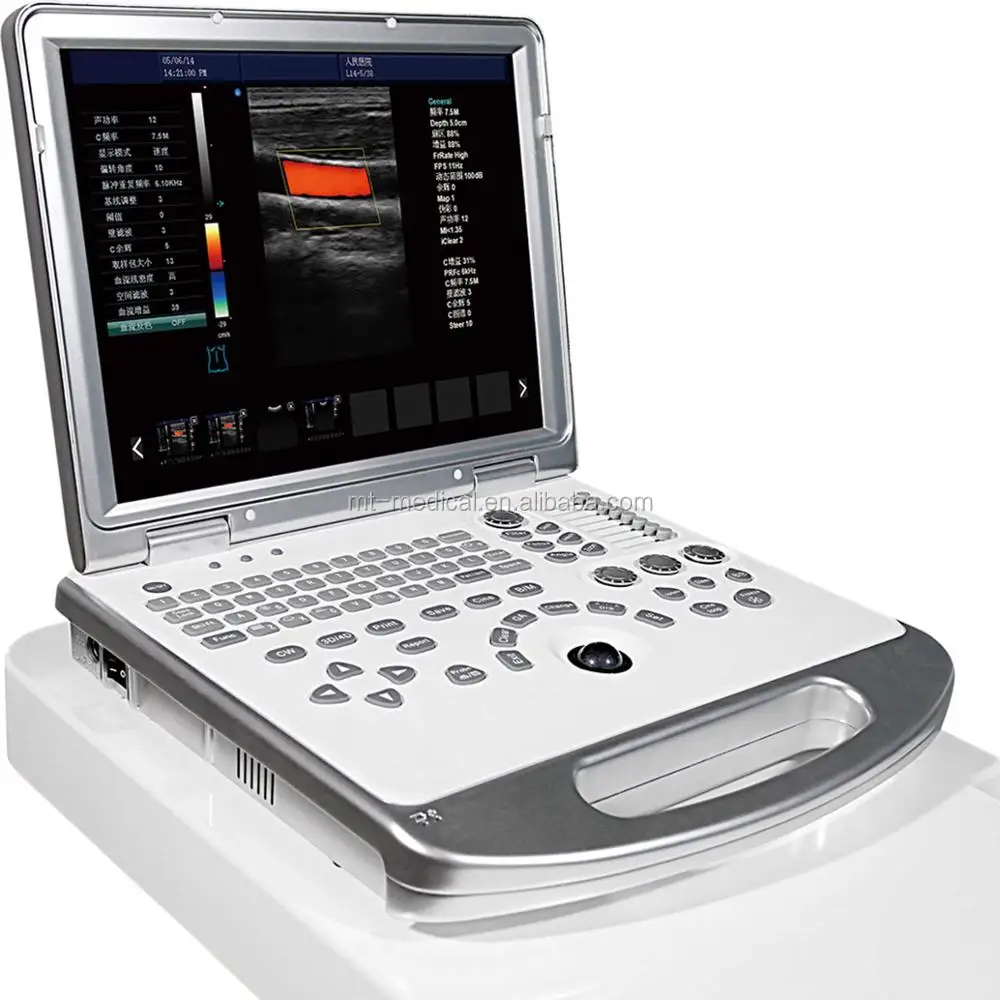

Doppler color ultrasound portable medical scanner machine

1. N.W. is about 6.7kgs, easy and portable to carry
2. Stable performance
3. ISO13485,CE approved
4. battery working time lasts over 3 hours
5. 15" LCD screen
6. high resolution image quality
7. professional measurement software packages: OBSTETRIC, GYNECOLOGICAL, UROLOGY, SMALL ORGAN

1. Multiple probes

3.5MHZ convex probe
7.5MHZ linear probe
6.5MHZ trans-vaginal probe
7.5MHZ rectal probe
3.0MHZ phased array probe
5.0MHZ micro-convex probe

2.Application

Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal

3. Technical Parameters

Display	15" LCD screen
Power supply	Voltage: 100 V~240 V Power: DC12.8V 3A Frequency: 50/60 Hz
Scanning mode	Electronic linear, electronic convex, Electronic phased array
Display mode	B mode, M mode, color mode, PW mode
Input/output port	PAL-D, SVGA (SVGA color monitor), USB port, VIDEO
Imaging mode	B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color Simultaneous 2D/Color Compound PW, Duplex/Triplex CFM, CDE, PD, Directional PD, CD
Image Storage	Storage Format: PNG, AVI, BMP, JPEG, DICOM Export Video Format: AVI Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive
Technology	Panoramic Imaging Tech All-digital signal processing Tech Multibeam formation Tech Speckle Reduction Tech Tissue Harmonic Imaging Tech Dynamic Tissue Optimization Tech Duplex & Triplex Synchronous Display Directional Power Doppler Imaging Parameters Preset
Dynamic	0-160db
Analysis Packages	Basic / Obstetrics/ Gynecology/ Urology/ Andrology/ Cardiac/ Peripheral Vascular /Venous/Small Parts/ Orthopedic
Basic Measurement	B-mode basic measurement:Distance, Angle, Perimeter and Area (ellipse or track-based method), Volume, Histogram, Sectional Map M-mode basic measurement:Heart Rate, Time, Distance, Speed
Note	date, time, name, sex, age, doctor, hospital, comment, language conversion.
Connectivity/Media /Peripherals	Transducer Ports: 1 USB Ports: 2 Hard Disc: 60GB (SSD) 120G/256GB SSD (Optional) Footswitch: USB Ethernet Port: 2(100Mb/1000Mb) External Display: VGA HDMI USB Printer (optional) Digital Laser Printer (optional) Digital B/W Thermal Printer (optional)
Standard Configuration	Main Unit free hand 3D software 15 inch LED color display Battery (3 hours working time) Full digital system 3.5MHz Multi-frequency convex probe Aluminum plastic multi-layer package
Optional Configuration	6.5MHz High frequency Trans-vaginal probe 7.5MHz High frequency Liner probe phased array probe 7.5MHZ rectal probe Printer Trolley

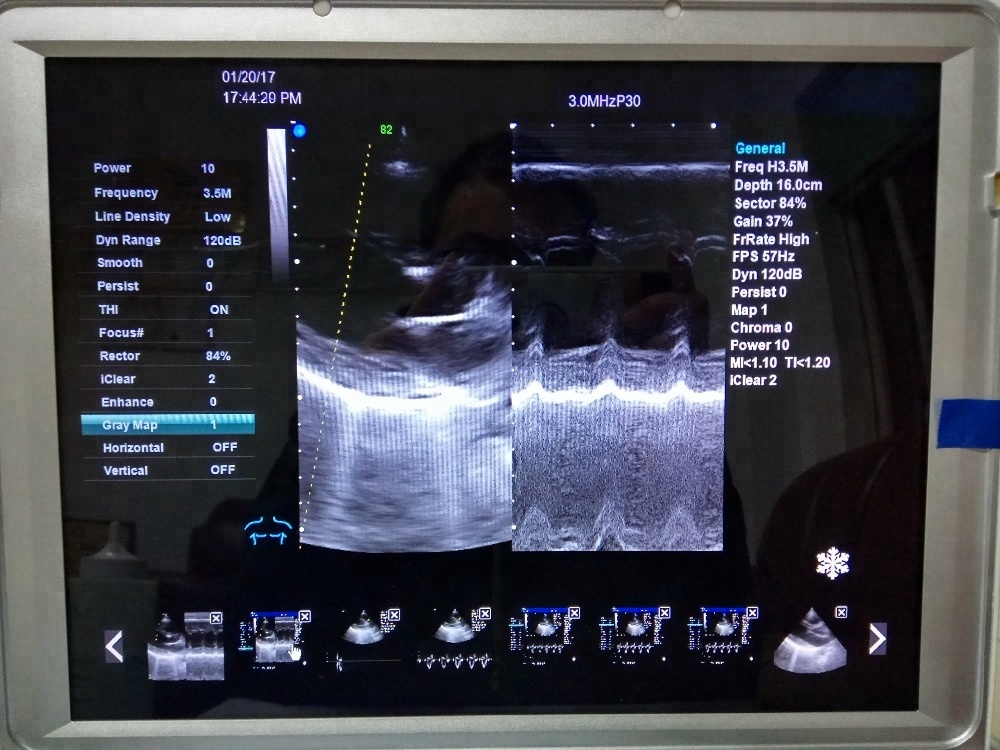

4. Imaging pictures

Packaging
