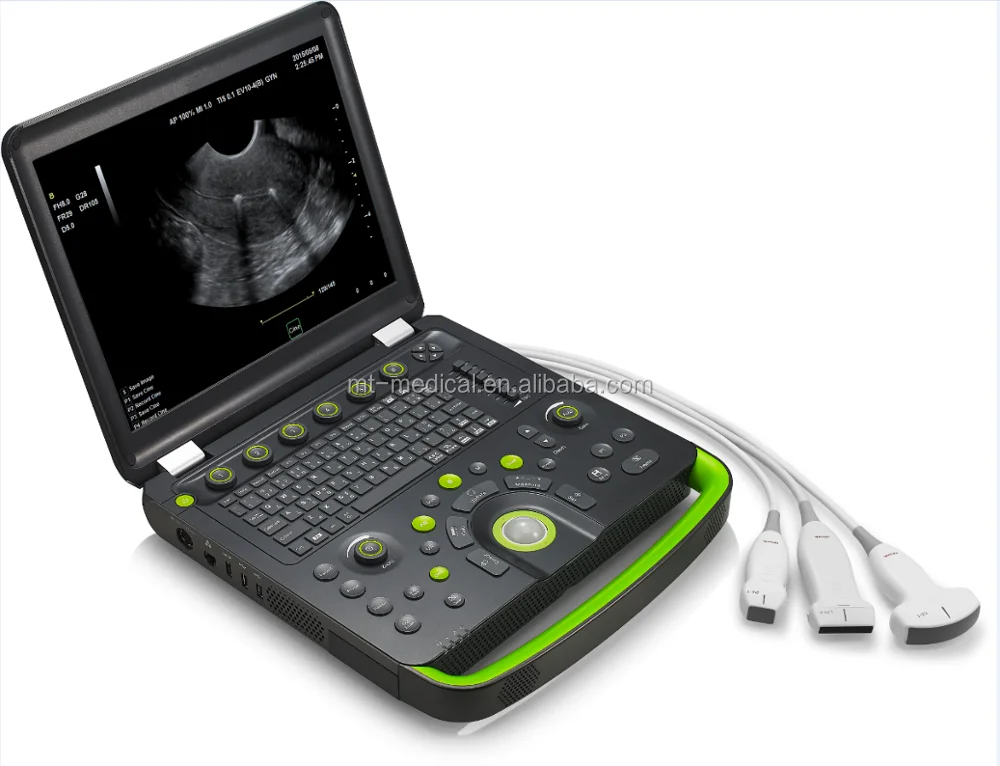

Portable Ultrasonic Diagnostic Devices Type Ultrasound Machine For Pregnancy

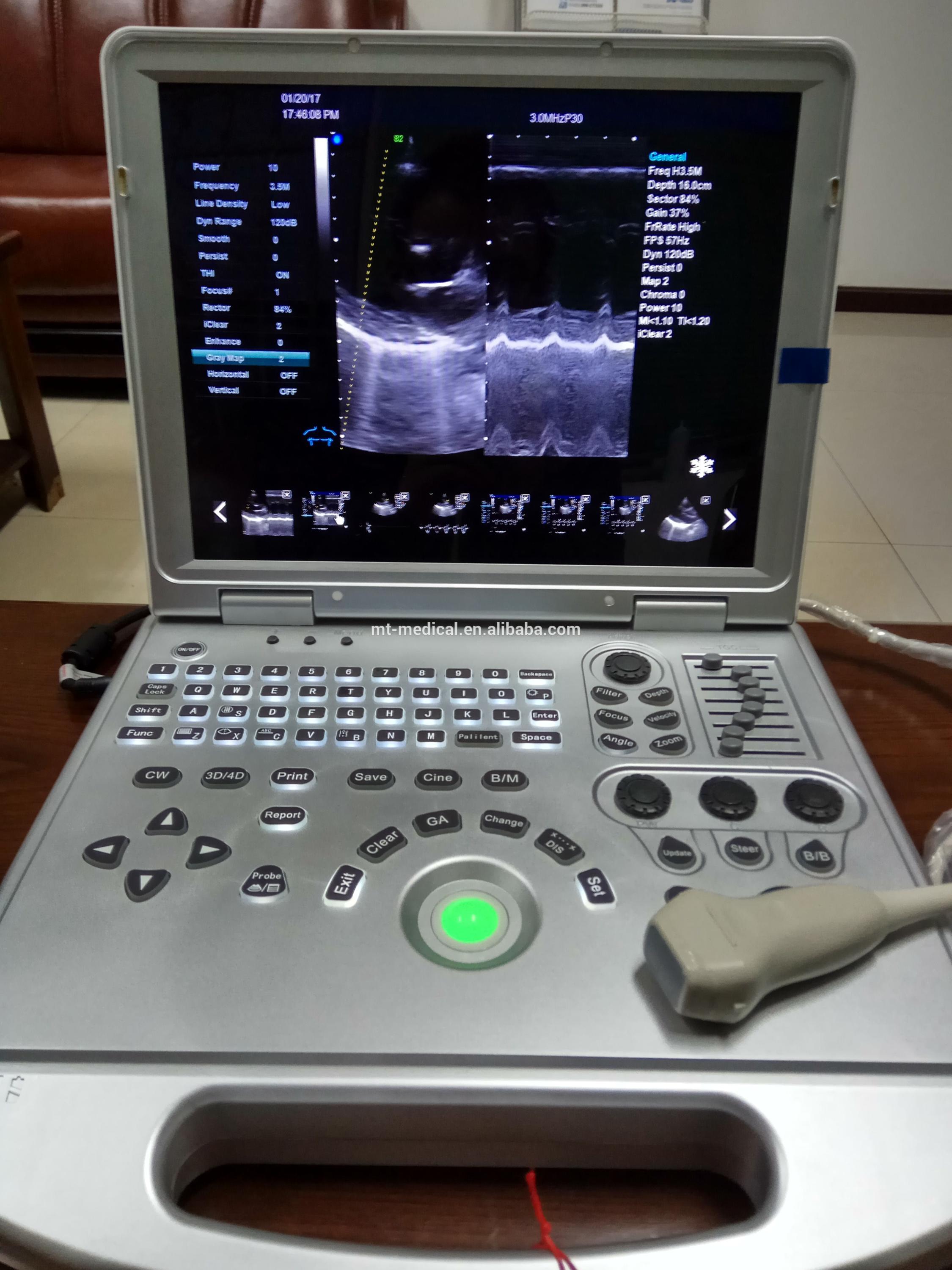

Model:MT-S50
1,MT-S50 system features
MT-S50 is a portable color ultrasound diagnostic system that is suitable for versatile applications:
Abdomen
lVascular, MSK
lSmall Part
lOB / GYN
lCardiac
lPoint of care
lEmergency
lAnesthesiology
lSport Medicine
The system has the advanced imaging technology and many unique features:
HoloTM Ultrasound Platform
HoloTM ultrasound platform provides a cutting edge 64 beam imaging.Due to high speed hardware platform, system can handle up to 5000 frames/s, that means around 1GB/s data being processed instantly. Those all dramatically increase diagnosis confidence and improve accuracy.
Holo PW technology
• Max 3 sample gates simultaneous
• Allow to move each gate in real-time mode and frozen status.
• Used before, at & after vascular pathologic change position with synchronized one heart beat measurement.
• Holding breath becomes a history. With Holo PW, user can acquires several vessels at same time, such as renal artery and vein.
Spatial-Time Speckle Reduce Technology
• Noise movement trace is random
• Like Brown movement
• Based on the HOLO TM platform, system capture the noise with high frame rate
• Reduce the noise in the spatial and time two dimensions

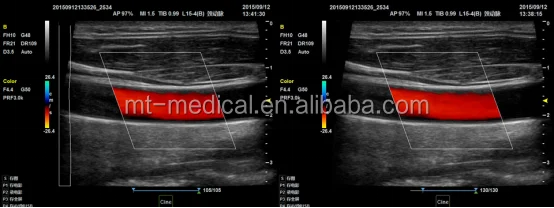

Ultra-wide Accurate Steer imaging
• High performance probe with ultra-wide beaming
• Maximum steer angle for linear probe is 30°
• The minimum step size is 1°
• Accurate matching human blood vessels path
Obtaining more stronger Doppler signal, getting better spectrum and blood flow images
Extend FOV

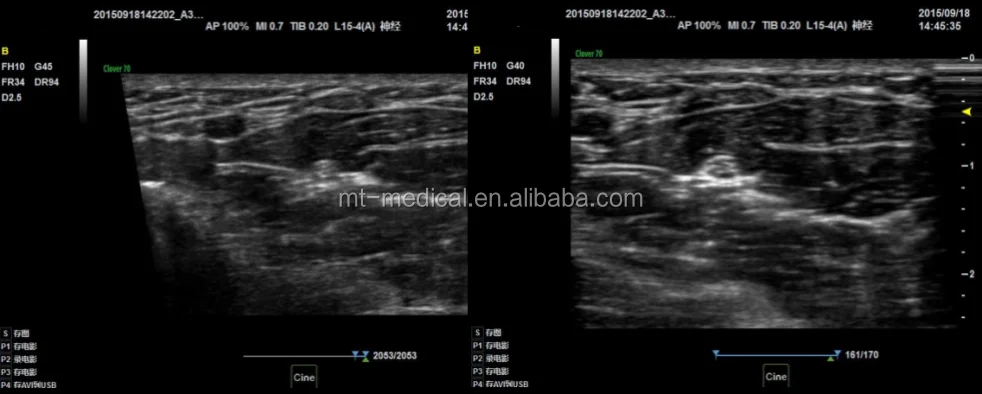

B independent steering
• The steering can make the needle tip and needle path more clear
• B images also support ultra-wide angle accurate steering
FZoom function
lOne key zoom the image in the full screen
lFor the anesthesia application, the doctor can see the image clearly
After the normal measurement, you can name this application measurement item base on the value result. In daily clinical applications, it can help doctors to simplify the operation, to avoid duplication of measurements, to shorten the time of bed in next checking.
Movie dynamic storage
Complete recording operation process, adjust the depth, switch to the Color mode, you can provide a complete teaching demonstration video for anesthesia and so on
Most of competitors do no support such function
5s start-up
No matter the emergency time, intensive time, or windy rain weather outside, the clover in order to save the valuable time not more than golden 120s for the critically patient. It can be rapid start-up of the 5S and excellent image, convenient operation.

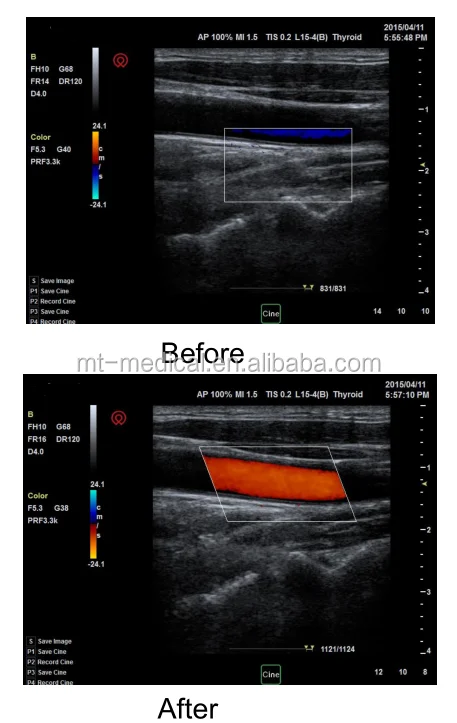

Auto Doppler
• One button press: B, PW, Color
• Auto location the ROI on the vessel
• PW & Color Steer angle auto optimization
• PW SV size, position and correct angle
• High efficiency, save time

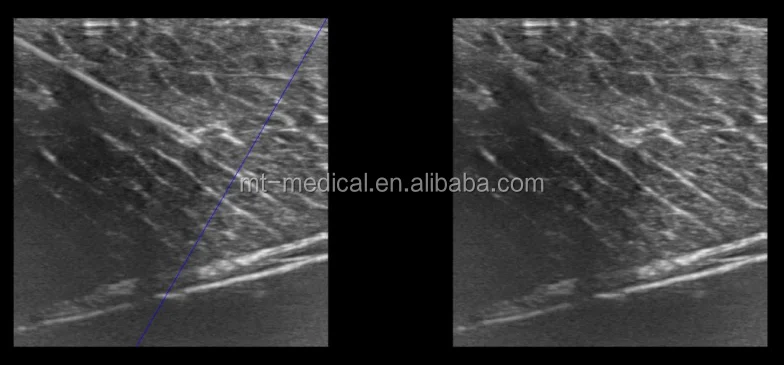

Needle Enhancement
Auto adjustment the steer angle
Improve the efficiency without manual adjustment angle
No. Item Specification
1 LCD ≥15"
2 Probe socket ≥2
3 Support probe Convex probe
Linear probe
Phase array probe
Endo-cavity probe
4 Linear probe effect element number ≥192
5 Needle guide Available
6 2D Imaging
7 Convex probe frequency 2.5-5.0MHz
8 Convex probe harmonic frequency 4.0-5.5MHz
9 Phase array probe frequency 2.5-4.5MHz
10 Phase array probe harmonic frequency 3.4-4.4MHz
11 Linear probe frequency 5.0-12.0MHz
12 Linear probe harmonic frequency 8.0-10.0MHz
13 Endo-cavity probe frequency 5.0-8.0MHz
14 Endo-cavity probe harmonic frequency 8.0MHz
15 Scan speed:
16 Phase array probe,@18cm depth,full FOV ≥70fps
17 Convex probe,@18cm depth,full FOV ≥79fps
18 Launching beam focus ≥4
19 Dynamic range 30~180
20 2D grey level ≥256
21 Digital dynamic focusing Yes
22 Digital variable aperture and dynamic speed adjusting Yes
23 A/D ≥14bit
24 Cine review capacity ≥16000frame
25 Preset optimal imaging parameter Yes
26 TGC 8 sections
27 LGC ≥2
28 Support pulse inverse harmonic function Yes
29 Scan depth ≥29cm
30 PW Imaging
31 PWD Yes
32 CWD Yes
33 HPRF Yes
34 Min scan speed ≤3 mm/s
35 Display mode B, B/PWD, B/CW, B/HPRF, B/M, B/B, B/CFI/D
36 Cine playback ≥400s
37 Measurement and calculation function during M imaging cine playback Yes
38 Measurement and calculation function during Doppler imaging cine playback Yes
39 Base point adjustment ≥8 levels
40 Sampling width and position range 1–30mm
41 Color Doppler Imaging
42 Display mode Energy, speed, two-dimensional spectrum Doppler image, synchronous display color Doppler imaging
43 Color display frame rate
44 Phase array probe, @18cm depth, full FOV color frame rate ≥16fps
45 Convex probe, @18cm depth, full FOV color frame rate ≥8fps
46 Deflection angle `-30°~ +30°
47 Base point adjustment ≥8 levels
48 BW/color comparison function Yes
49 Color enhancement function Yes
50 Ultrasound output power adjustment B/M,CWD,PWD,Color Doppler
