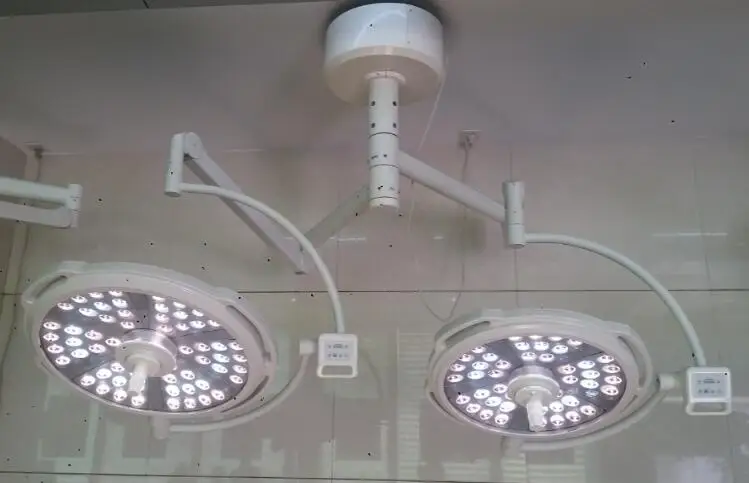

OT light with Camera for surgery operation
Model:EOL-LED70/50B
Product Description
1.Utilising the most advanced LED technology available, the MT-medical LED70 series of operating theatre lights have been designed to provide a high quality, shadowlessO beam with extremely low running costs.
The new, slim, fully enclosed head with colour touchscreen digital controls is a perfect LED lighting solution complementing all surgical rooms.
2.LEDs (light emitting diodes) have been around for a long time. Recently this technology has become leading-edge in the field of lighting - a breakthrough technological solution to the inherent problems of the incandescent light bulb.
3.We have taken the technology and developed it further to provide high definition lighting solutions with no infrared, low environmental impact, high brightness, low power consumption, no toxic chemicals and a long operating life.
feature:
• Streamlined, ultra-thin, enclosed head with reduced air resistance to minimise contamination
• 3,600 ~ 5,500K (± 500) variable colour temperature
• Automatic focus
• Digital controlled light intensity with 10 grades of brightness and automatic memory for added flexibility
• Built in power supply systems avoiding complicated installation of wall mounted control boxes
• Auxiliary light source included for laparoscopic operations
• LED light-source with up to 50,000 hours of light.
• Rigid suspension arm with easy mobility and stable positioning
• 360° arm rotation
• No infrared or ultraviolet radiation
Technical Parameters | ||
Diameters | 700mm | 500mm |
Illuminance | 160000LUX | 140000LUX |
Color Temperature | 3600--5500K(±500) variable | |
Color rendering index(Ra.%) | 95 | 95 |
Lamp Beads Power | 1W * 60N | 1W *45N |
50% Spot Diameter (D50) | 150 mm | 120 mm |
10% Spot Diameter (D10) | 280 mm | 230 mm |
Depth Of Illuminance | 140 cm | 120 cm |
Illuminance adjustable range | 25% - 100% | |
Focus mode | manual or electric(optional,but price is different) | |
Power Supply | 220V,50HZ | |
Input Power: | 85W | 65W |
LED Service Life | 60000h | |
Terperature at surgeon"s head | ≤ 1°C | |
Camera System | optional | |
Battery | optional | |
Packaging
Our Service
1.If you are building a new hospital, we can offer your solutions of OR and ICU room;
2.Our sales team give you the quotation and answer your any questions and doubts about products;
3.You are welcome to visit our factory at any time;
4.we will offer you the solutions of quality problems within 24hours;
5.our after-sales service:
Warranty: 1-2years due to different products, and lifetime maintaining.
A. Engineer goes to your hospital and Provide on site customer training and guide,
B.We send the free parts to you by courier and give you technical guidance via online video,
C.We support you free training of products.
