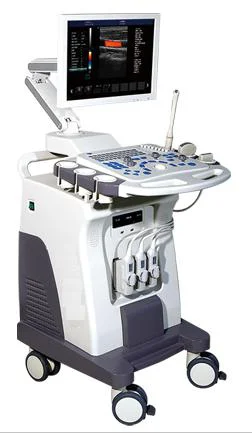

full digital 3D color portable ultrasound machine
1.The C-80PLUS color doppler ultrasound system bringing an entirely new level of diagnostic performance and workflow efficiency.
2.The C-80PLUS system, combines best-in-class image quality and a robust set of features to meet daily clinical needs.
3.It enhances diagnostic confidence with high quality color and power Doppler, 2D-mode imaging.
4.All-digital signal processing and multibeam formation technology provides best-in-class image quality in 2D-mode, Tissue Harmonic Imaging, Dynamic Tissue
5.Optimization Technology and Doppler modes.
Parameter | |
Size | 880mm×580mm×1400mm |
Weight | 45kg |
Voltage | 100 V~240 V |
Power | DC12.8V 3A |
Frequency | 50/60 Hz |
Transducer Ports | 3 |
USB Ports | 2 |
Footswitch | USB |
Operating Conditions | Temperature: 5°C~40°C Humidity: ≤80% Pressure: 700hPa~1060hPa |
Storage Conditions | Temperature: -5°C~40°C Humidity: ≤80% Pressure: 500hPa~1060hPa |
Imaging Performance | Startup Time (Max): Avg. < 90 seconds Preset Switching Time: Avg. < 1 second Storage Time (Image to Disk): Avg. < 0.5 second |
Convex Array Probe
| Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz Pitch: 0.516 mm Radius: 60 mm Number of Elements: 128 |
Linear Array Probe
| Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz Pitch: 0.352 mm Radius: N/A Number of Elements: 128 |
Intra-Cavity Probe:
| Frequency: Central 6.5 MHz Min. 5.0 MHz Max. 9.0 MHz Pitch: 0.216 mm Radius: 10 mm Number of Elements: 128 |
Phased Array Probe:
| Frequency: Central 3.0 MHz Min. 2.0 MHz , Max.5.0 MHz Pitch: 0.300 mm Radius: N/A Number of Elements: 128 |
Imaging pictures
1.If you are building a new hospital, we can offer your solutions of OR and ICU room;
2.Our sales team give you the quotation and answer your any questions and doubts about products;
3.You are welcome to visit our factory at any time;
4.we will offer you the solutions of quality problems within 24hours;
5.our after-sales service:
Warranty: 1-2years due to different products, and lifetime maintaining.
A. Engineer goes to your hospital and Provide on site customer training and guide,
B.We send the free parts to you by courier and give you technical guidance via online video,
C.We support you free training of products.
