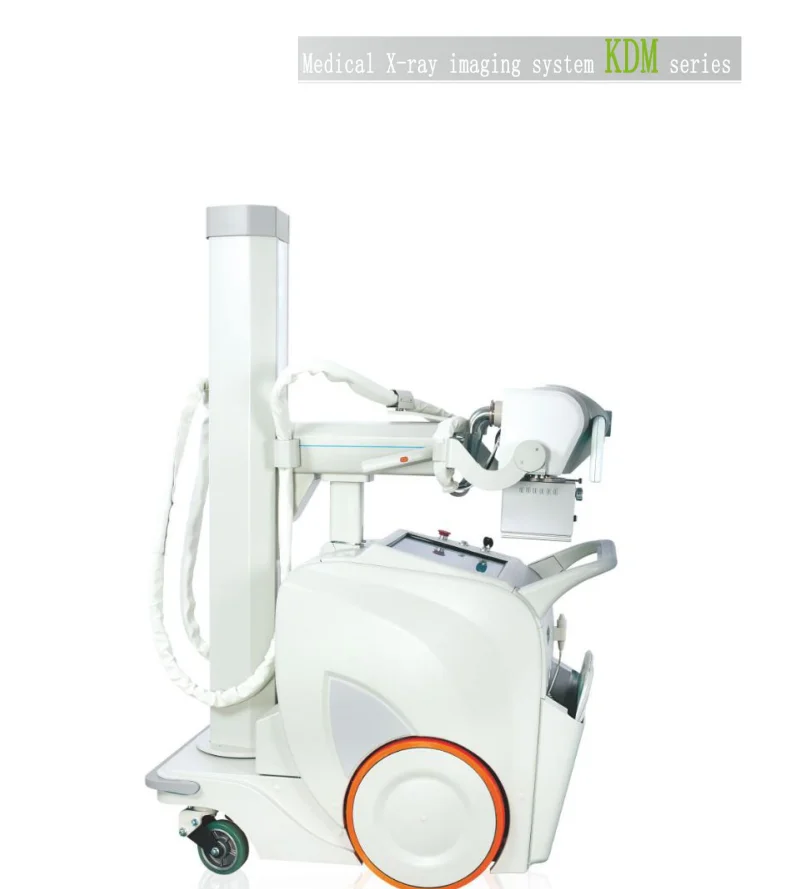

High Quality X ray Machine DR xray Machine X-ray machine Manufacturer
Xray Generator:
Frequency | 200KHz |
Power | 50KW |
Range | 40~150KV |
Electric current | 630mA |
Minimum exposure time | 2ms |
Maximum current time product | 630mAs |
With automatic exposure control function | Yes |
Xray tube:
Tube anode anode heat capacity | 300KHU |
Tube focus size | 0.6/1.2mm |
Power of the tube | 77KW |
The beam has a measure of the distance between the bedside and the camera | Yes |
The beam can be rotated at an angle | ±45° |
The beamer can be adjusted | Yes |
The beamer has a field light control switch | Yes |
Flat panel detector:
Material | A-Si(Amorphous Silicon) |
Size | 17×17 inch |
Pixel pitch | 139um |
Collect gray scale | 14bit |
Spatial resolution | 3.6lp/mm |
Collecting away from the array | 3328*3328 |
Image preview time | 6.1s |
Photography bed | 2005mm×635mm |
Maximum loading | 220KG |
Mechanical structure | UC Arm |
Tube support:
Mechanical structure | UC Arm |
X-ray photography frame in the distance from the ground | 1650mm±10mm |
X - ray photography rack up and down movement range | 1155 mm |
X - ray camera rotation angle | 151 |
System Operator Station:
The host console is highly integrated with the high voltage generator and can be set directly on the host workstation for exposure parameters | Yes |
Memory in workstation | >4G |
HDD Capability | >1T |
Image file storage capacity | 20000 pics |
Size of Display | 19inch |
Resolution of Display | 1280*1024 |
| Support integration with RIS and HIS systems | Yes |
Support dynamic real-time patient information retrieval and display | Yes |
Support patient, check, sequence, image four database information management | Yes |
Support for checking different status display and sorting | Yes |
Other Machines:
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures.
In 1998, Our R&D team developed electric operation table and hospital bed,medical cabinet,and so on;
In 2011,we developed first LED operation lamp and thenceforward, we develop other different of LED operation lamp,examination light one after another;
In 2012,patient monitor is sold on line;
In 2013,we develop first carbon fibre operation table,it is newest material for medical industry;
Previously, our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets.
In 2016;we start to export our medical equipment to international markets by ourselves.
The products were approved by CE,ISO13485.
We build a sales team with 10 employee and a after-sales service team with 5 employee.
Our after-sales team will resolve your problems in time within 24hours.
M-strive to technical innovation , T-guard life.
Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement.
MT MEDICAL do our best products and service for you.
1. We have a special overseas sales team, the first installed when our engineers can go to the scene to install and train, if you have the customer engineers, we can also arrange special technical training; we can train the machine is how to install, how simple Maintenance and how to maintain daily.
2. Our engineers remote guidance, if you can not solve the need to the scene, you can go to the scene to solve.
3. We are in the local dealer after-sales team to do the local sale.
Attn:
1. Warranty: one year
2. The engineers to the site to install, training, maintenance services, insurance costs, but the need for customers to take the engineer"s ticket, local accommodation costs
Usually we package machine with wooden case by sea.
Delievery time: Usually within 15 days after payment
