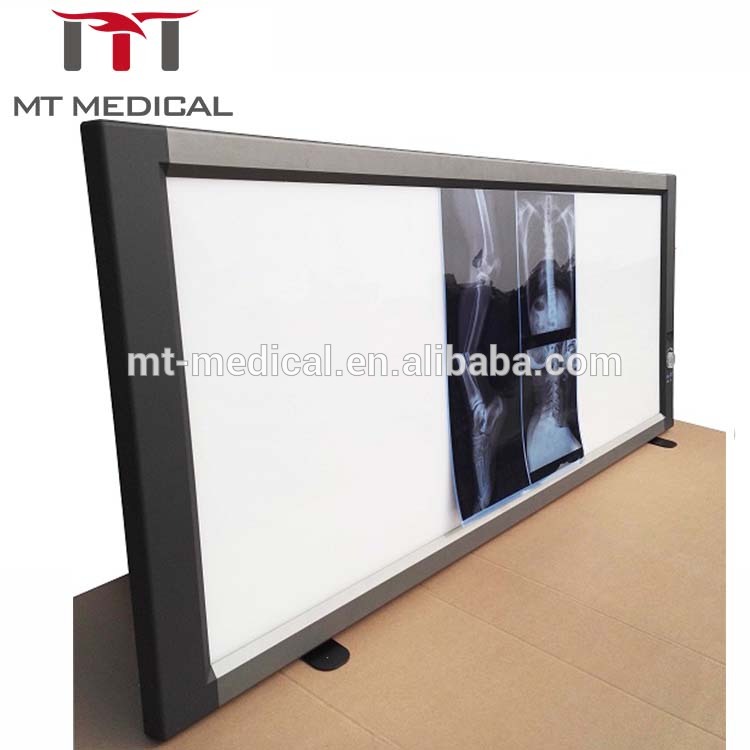

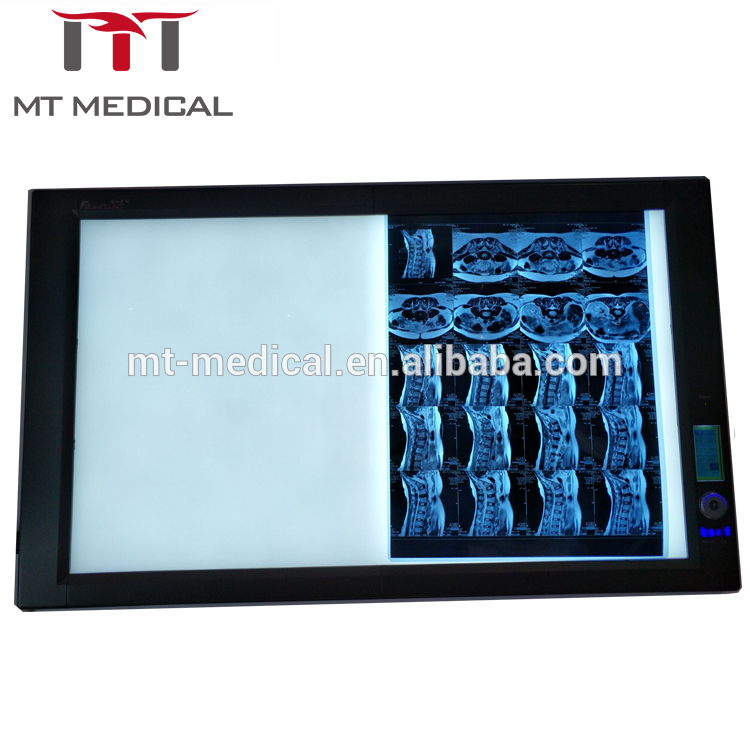

x ray view box
LED-XV Series | Single | Double | Triple | Quadruple |
Size(L×W×H mm) | 475×505×25 | 835×505×25 | 1200×505×25 | 1555×505×25 |
Visual Area(L×W mm) | 360×422 | 720×422 | 1080×422 | 1440×422 |
Power(W) | 30W | 60W | 90W | 120W |
LED Specification&Lifespan | Super Bright SMD LED, 144pcs/bank; CCT ≥ 8000K;Lifespan ≥ 100000 hours | |||
Adaptor | Global Adaptive Power;AC90V-240V ,50/60Hz | |||
View Panel Luminance | PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~4500cd/ m2 | |||
Sensor function | The panel will light up automatically when film inserted and off when moved away | |||
Uniformity | ≥90% | |||
Fixture | SS roller oblique compression type Fixture | |||
Installation | Wall mounting, Bracket mounting | |||
Application Scope | General Film,Digital Film,Breast Mammography Film | |||
Application Condition | Room Average Illuminance ≤ 100 lux | |||
Features | · Full Digital Control · Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips · Imported Acrylic View Panel · Eye Protective Feature · PWM Low-Voltage Digital Continuous Dimming System · LED Constant Current Drive Power · Automatic film activation · Improved film clip | |||
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures.
our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets.
The products were approved by CE,ISO13485.
Our after-sales team will resolve your problems in time within 24hours.
M-strive to technical innovation , T-guard life.
Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement.
MT MEDICAL do our best products and service for you.
