Product Name
Electric surgery table for rectal and kidney urological operation
Electric operation table
Specifications
| TECHNICAL PARAMETERS | |
| 1.Full Carbon fibre head rest | ||
| 2.Clamp slot for full carbon fibre head rest | ||
| 3.Full carbon fibre table top without metal | ||
| 4.Table x-ray attenuation coefficient≤0.44mmAL; ( EHOT-M1; ≤0.76mmAL ) | ||
| 5. With one key one key reset function and "V" and revised "V" | ||
| 6. Battery optional, once full of charge, can be usde for 80 times operation | ||
| 7. The base, scientific desgin of base provides a large room for the move of the C-arm, and a comfortable feet spare for the doctors and nurse, also ensure the operating table moves smoothly and stably during the operation. | ||
| Faceplate size(Carbon fiber material) | ( 2400*530 )±10mm | |
| Ground height( from the ground to the top of table, exclude mat) | Minimum height:(700±20)mm | |
| Maximum height:(1000±20)mm | ||
| Lift | (300±20)mm electric | |
| Longitudinal moving distance of bed surface | ( 280±20)mm electric | |
| Head and leg | Head section angle: 25°±2°( electric) | |
| Leg section angle: 25°±2°(electric) | ||
| Lateral tilt: | left: 21°±2°(electric) | |
| right: 21°±2°(electric) | ||
| Back section | up: 65°±2°(electric) | |
| down: 20°±2°(electric) | ||
| Leg section | up:35°±5°(manual) | |
| down:90°±5°(manual) | ||
| Head section | up: 45°±5°(manual) | |
| down: 90°±5°(manual) | ||
| X-ray absorption coefficient( X ray attenuation coefficient of bed plate, optional accessory) | ≤0.44mmAL | |
| Table body locking | electric | |
| Power | AC: 220V 50Hz 300VA; | |
| DC:24V(Panasonic acid battery) | ||
Details showtime

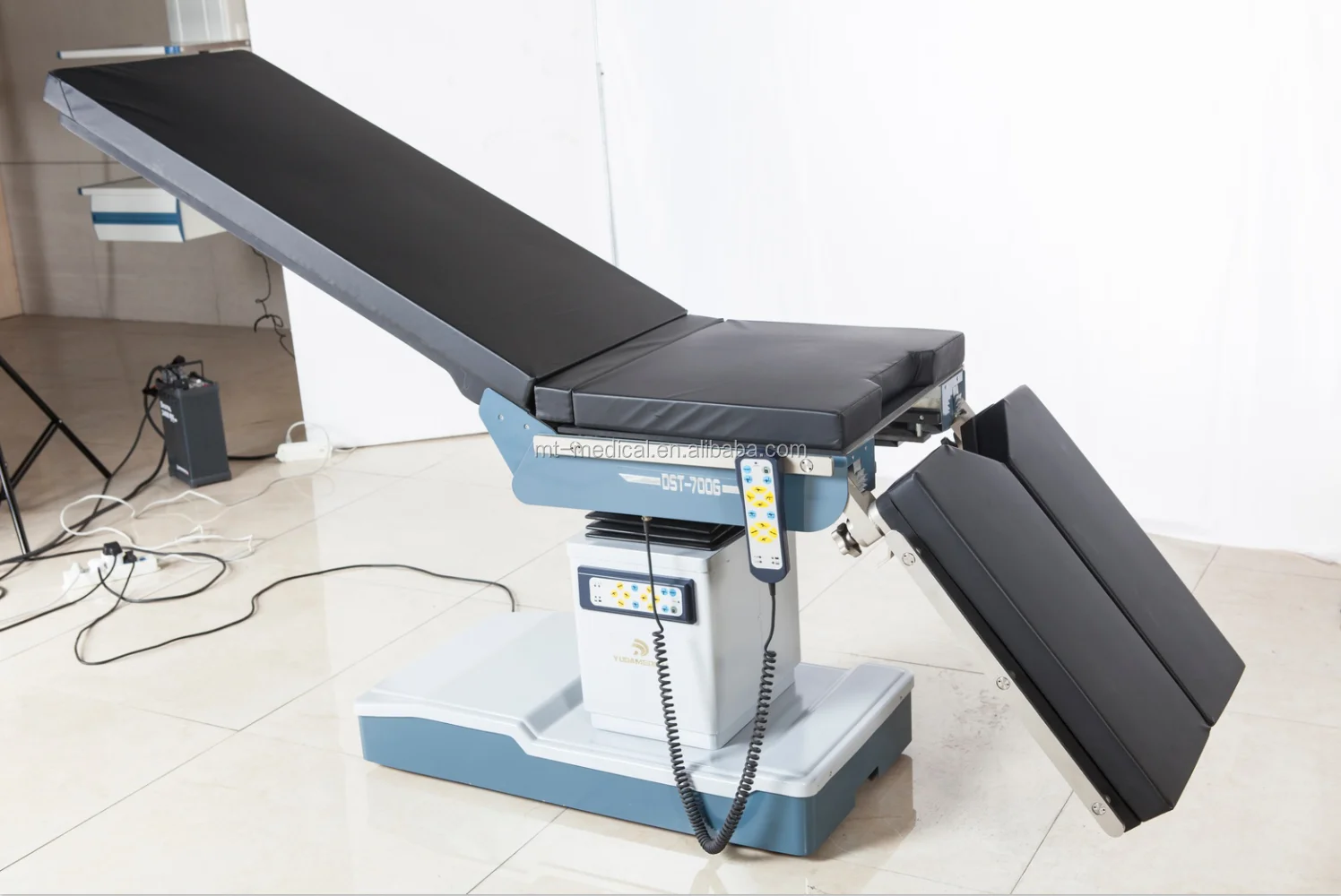

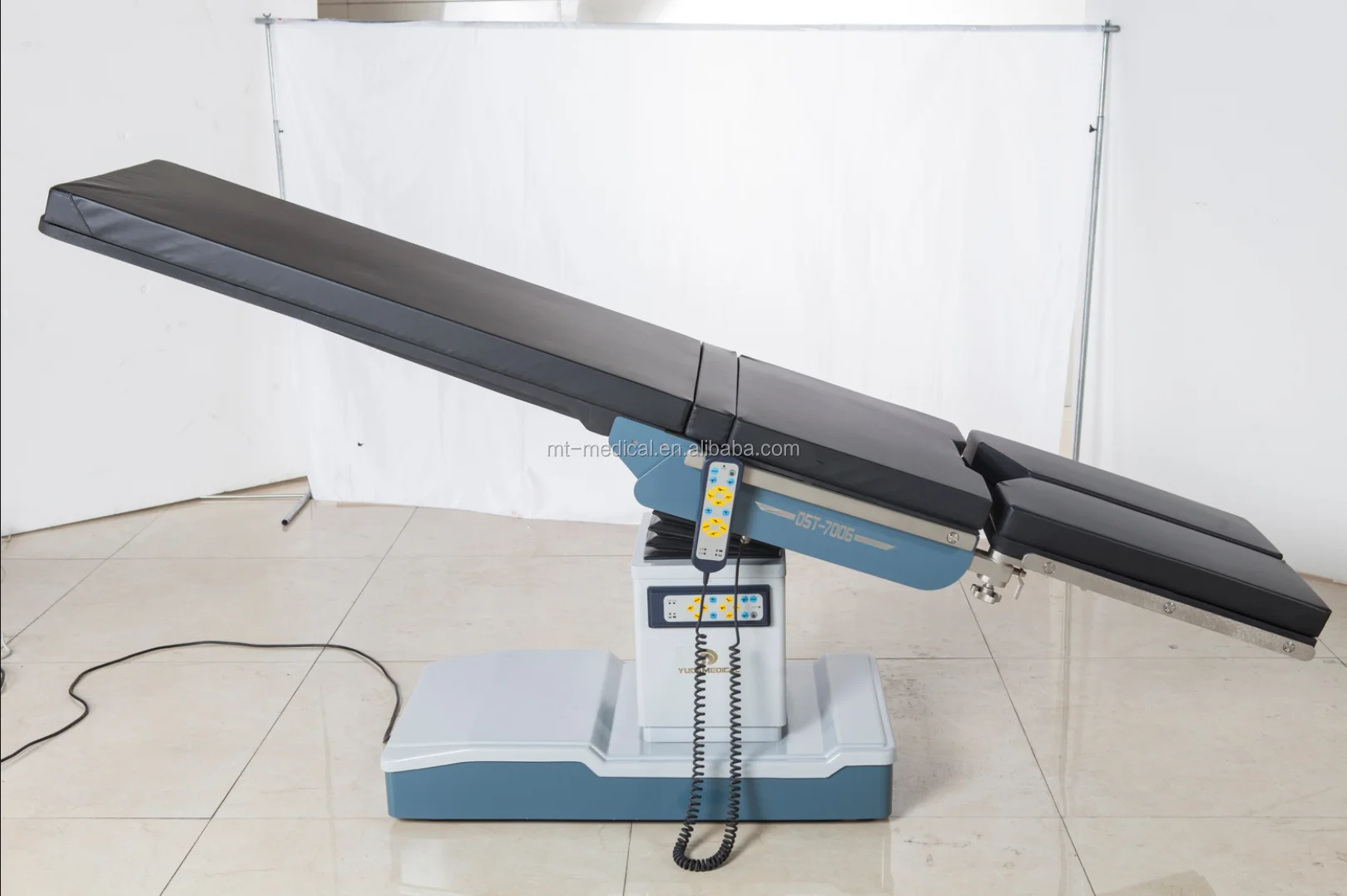

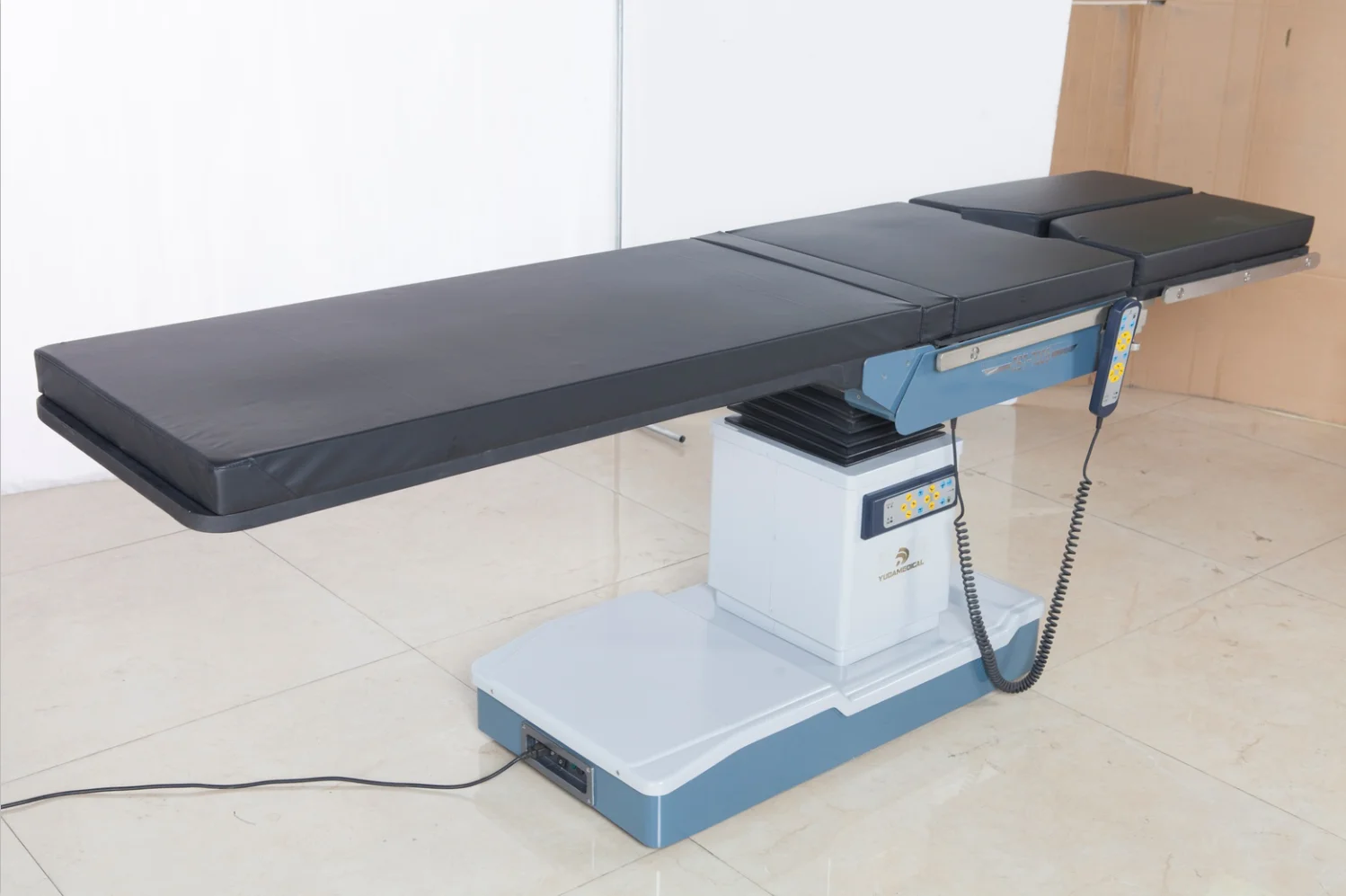

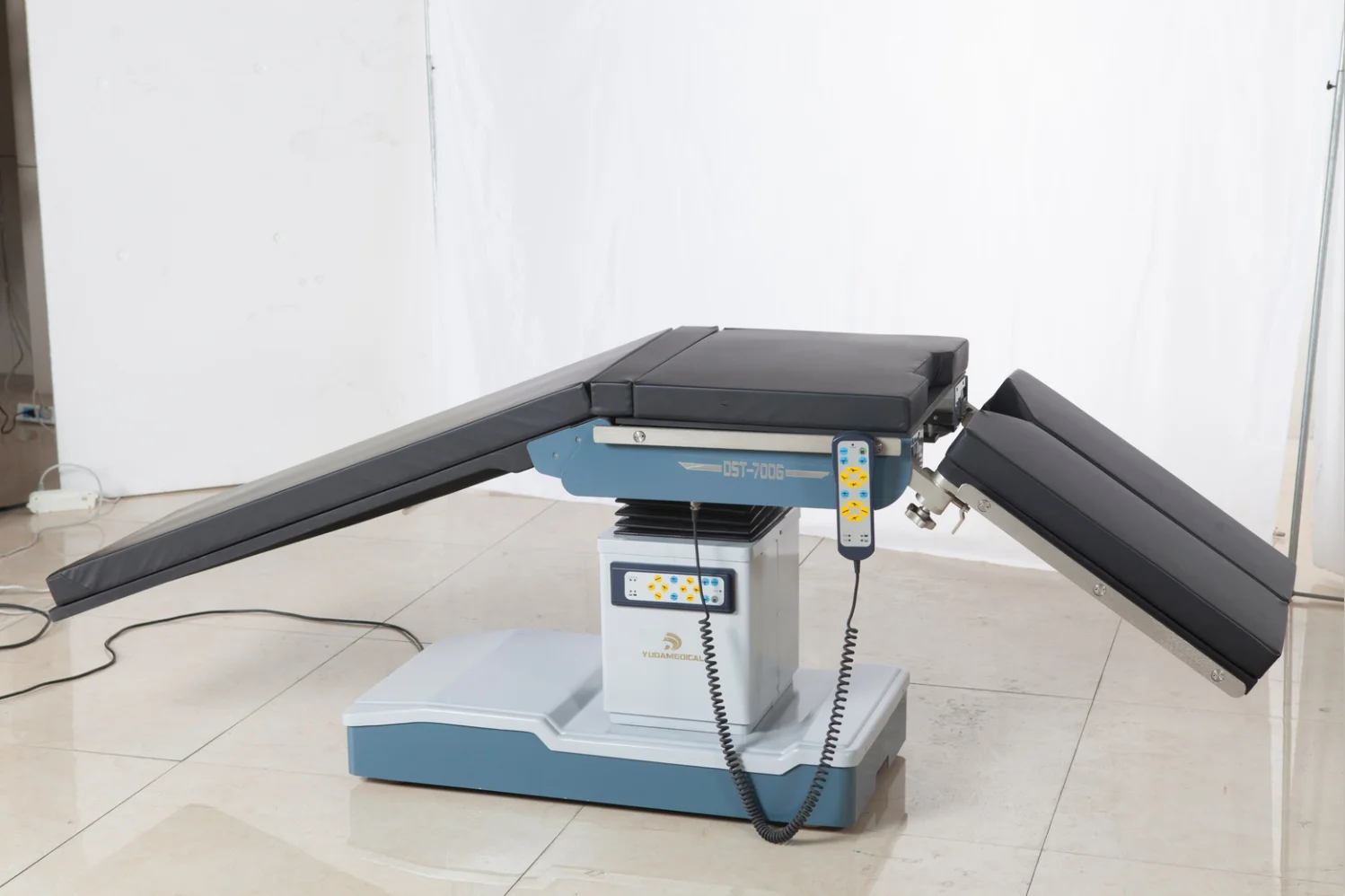

Electric surgical table
| |
| Removable high density memory sponge | Carbon fiber material |
| |

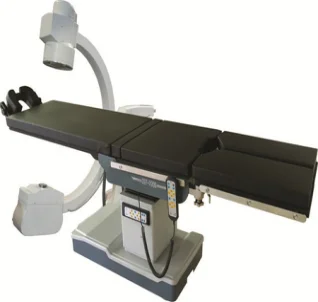

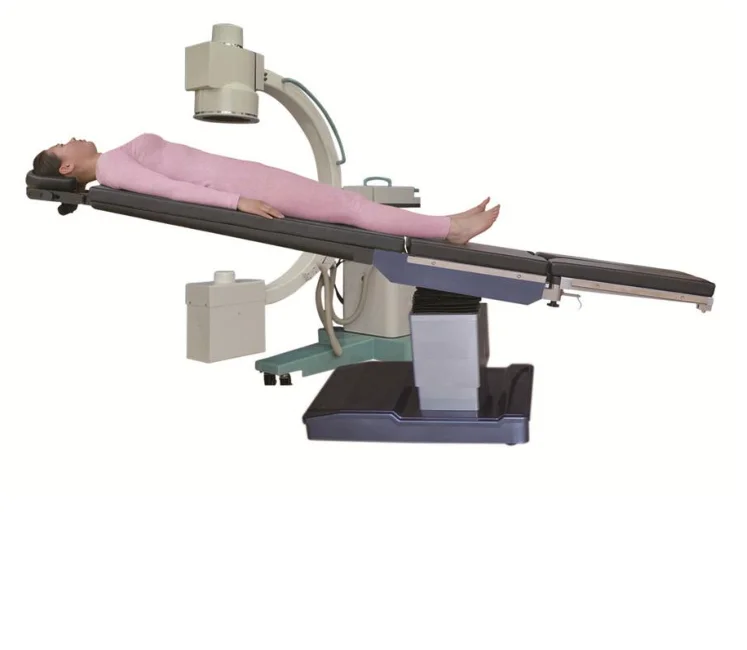

With one key one key reset function "V" and revised "V" | The base, scientific desgin of base provides a large room for the move of the C-arm, and a comfortable feet spare for the doctors and nurse, also ensure the operating table moves smoothly and stably during the operation. |

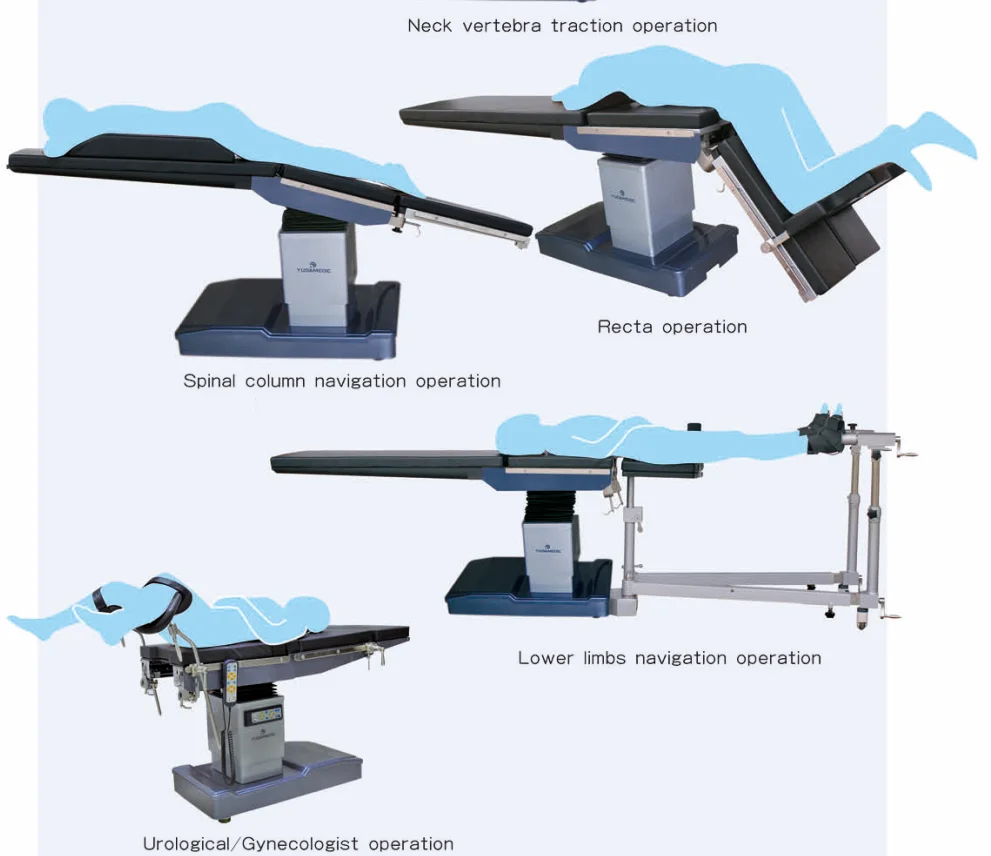

Different fileds

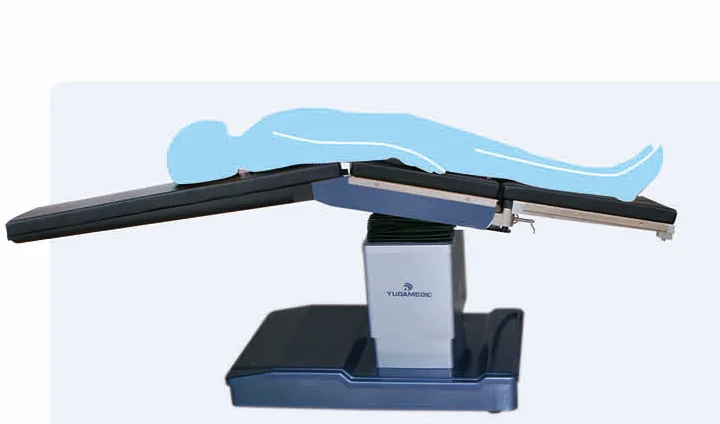

Surgery operation table for rectal operation
| |

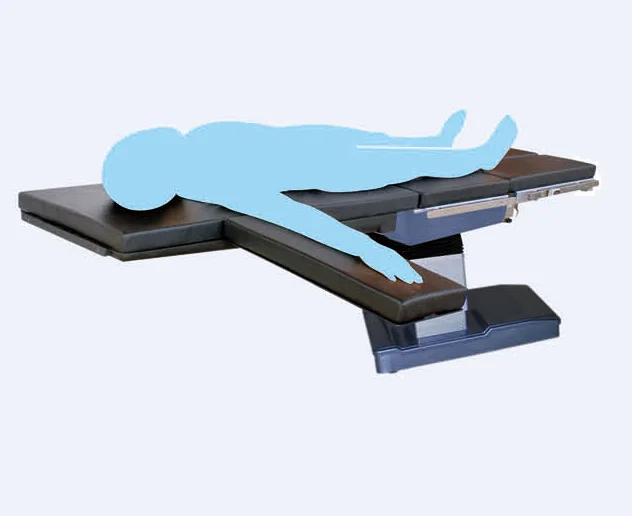

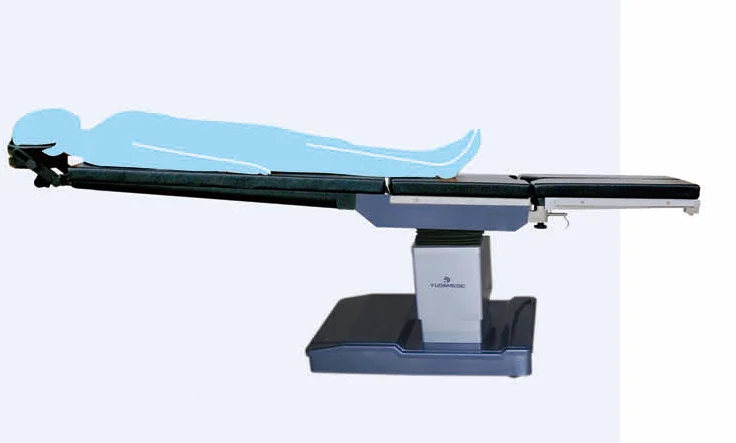

| Thorax Navigation operation | Head Navigation operation |
| |

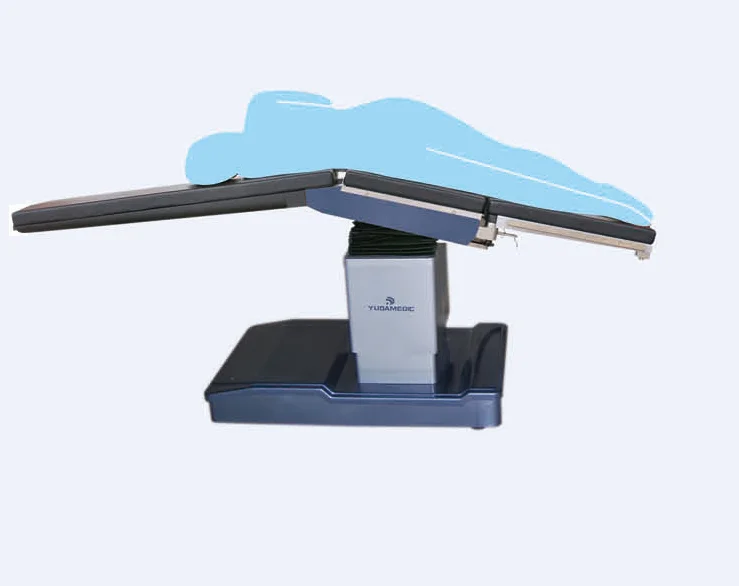

| Kidney(Waist) operation | Upper limbs navigation operation |
| |

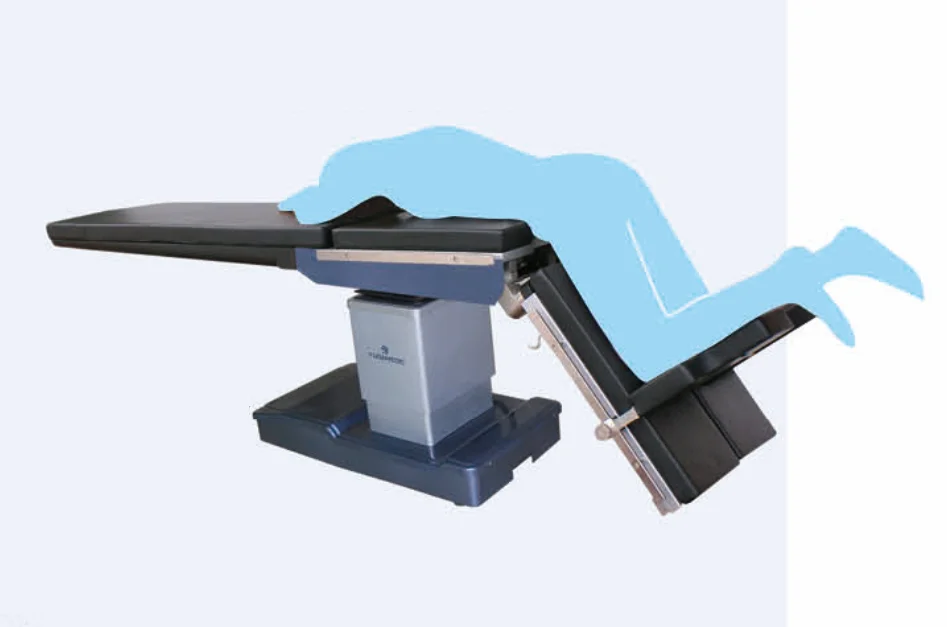

| Neck vertebra traction operation | Rectal operation |
| More fields you can use.... |
|
Certificates
Consults
1. This operation table very satisfy you, but how to send you an inquiry? Click here
2. You need hydraulic or electric hydraulic operation table? Click here
3. You also want purchease other medical equipment together? Click here

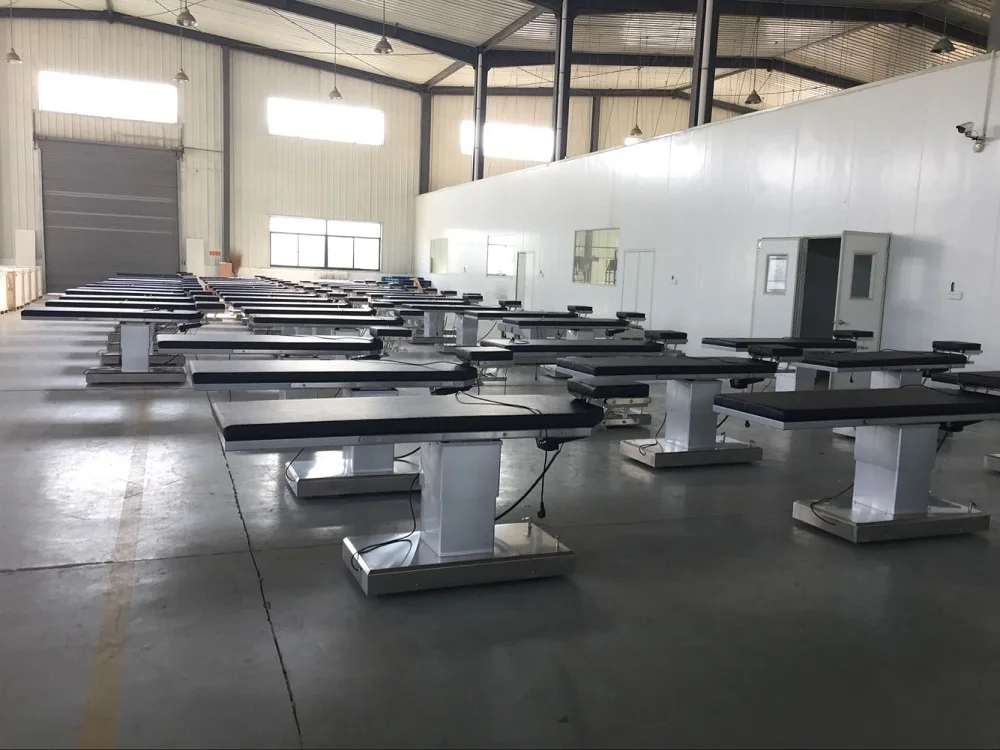

Produce department
Electric operation table for kidney urological operation
