hospital bed weight scale
| 4pieces of European style guardrail, upside and down structure. ABS side rails |

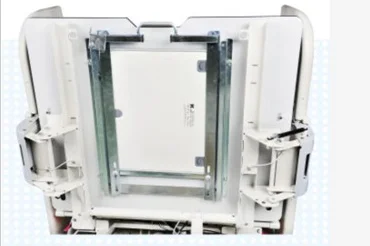

| x-ray bed board | |

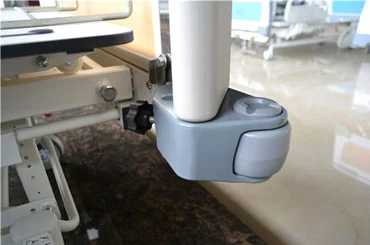

| 4pcs bumpers 4pcs IV stand pole |
| Bed length can be extended to 2350mm | |
| Weighing scale is optional Weighing range is 2-240kgs The controller when this bed is not equipped with weighing function |

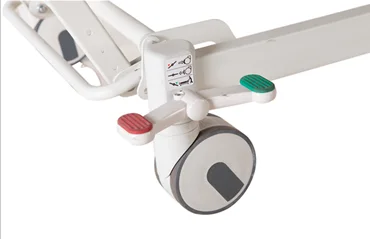

| Double castors, central locking | |
| Size | Bed panel Length | 1950mm |
| Bed panel width | 910mm | |
| Outsize length | 2170mm(could be extented to 2350mm) | |
| Outsize width | 1080mm | |
| Height ( From floor) | 500-850mm | |
| Back plate adjusting | 0~75° | |
| Knee section adjusting | 0~45° | |
| Bed panel extension | Manual/180mm | |
| Safety load capacity | 240kgs | |
| Function & configuration | movement | Back plate up and down |
| Knee section up and down | ||
| Back and knee section move together | ||
| Overall lifting | ||
| Trendelunburg & reverse trendelunburg position | ||
| Manual CPR | ||
| Mattress anti-slipper | At sides and end of bed | |
| Drainage hook | At sides of beds,4 in total | |
| IV pole hole | F:2,H:2 | |
| Main material | castors | Germany TENTE castors, dia125mm,central control castor |
| frame | High quality cold rolled steel Main (painted with antibacterial powder) | |
| Bed head and end board,guardrail | ABS | |
| Others | IV pole | Optional |
| mattress | Optional | |
| Dining table | Optional | |
| Oxygen bottle support | Optional |
