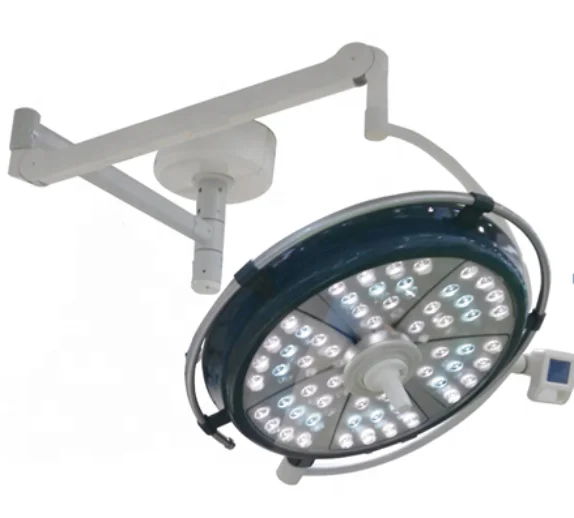

Hospital surgical led operation light
- Utilising the most advanced LED technology available.
- The MT-medical LED70 series of operating theatre lights have been designed to provide a high quality, shadowless beam with extremely low running costs.
- The new, slim, fully enclosed head with colour touchscreen digital controls is a perfect LED lighting solution complementing all surgical room.
- LEDs (light emitting diodes) have been around for a long time. Recently this technology has become leading-edge in the field of lighting - a breakthrough technological solution to the inherent problems of the incandescent light bulb.
- We have taken the technology and developed it further to provide high definition lighting solutions with no infrared, low environmental impact, high brightness, low power consumption, no toxic chemicals and a long operating life
| Technical Parameters | 700mm head & 500mm head |
| Illuminance | 160000/140000Lux. |
| Color temperature | 3500K-5500K (± 500) |
| Ultraviolet light irradiance within40nm wave | 0.002W/M2 |
| Light Focus adjustment System | manual or electric or auto focus (Optional) |
| Light-adjusting mode | continuous adjusting light , no grade dimmer system |
| 10% Spot Diameter (D10) | 280 mm / 230 mm |
| 50% Spot Diameter (D50) | 150mm/120mm |
| Terperature at surgeon"s head | ≤ 1°C |
| CRI RA | 95 R9 :90 R13 :92 |
| Input Power | 85W / 65W |
| the adjusting range of Illumination% | 25~100 |
| Input power | 220W |
| Power of bulb (W) | 1W * 60N / 1W *45N |
| Bulb average life | 50000h |
| 1). Utilising the most advanced LED technology available, the MT-medical EOL-LED series of operating theatre lights have been designed to provide a high quality, shadowless beam with extremely low running costs. 2). 700head=64pcs LED bulbs, 500head=45pcs LED bulbs. 3). Cold and walm light source | |
| 1). Streamlined, ultra-thin, enclosed head with reduced air resistance to minimise contamination. 2). Sterilization adjusting light spot diameter. 3). Key pressed controller |
1). Endoscopic light cource is optional according to the buyer"s requirement 2). Plate design saves after-sale costs | |
| 1). Touch screen controller is optional. 2). Automatic focus is optional. 3). 10 grades light adjustment. 4). LED light-source with up to 60,000 hours of light. 5). Optionally built in power supply systems avoiding complicated installation of wall mounted control boxes |
|
|
|
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures. our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets. The products were approved by CE,ISO13485. Our after-sales team will resolve your problems in time within 24hours. M-strive to technical innovation , T-guard life. Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement. MT MEDICAL do our best products and service for you. |
|
