Are you finding high quality LED operation lamp with CE, ISO and FDA?
Are you finding a professional manufacturer can offer you high quality after sales service?
What about a person can help you solve with everything and make you sit down and relax?

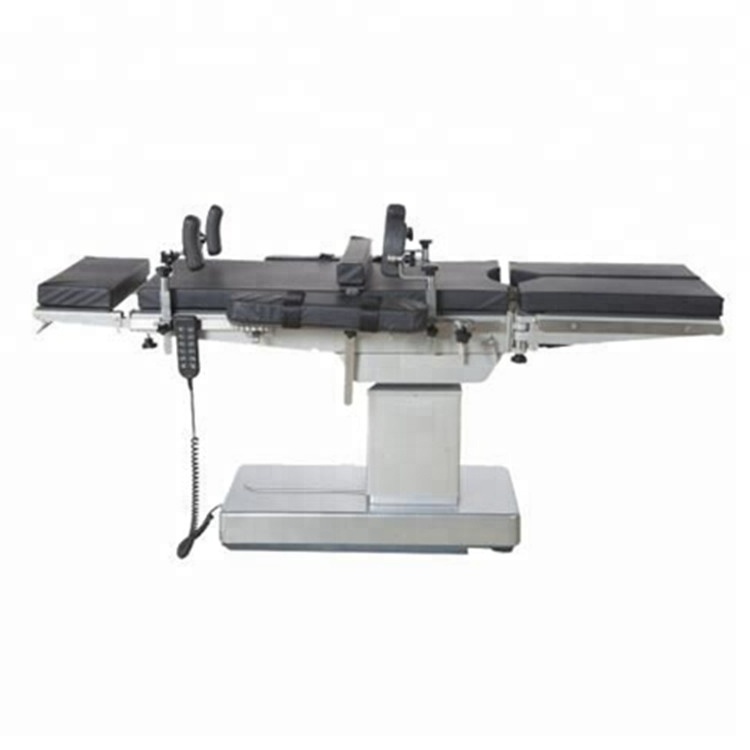

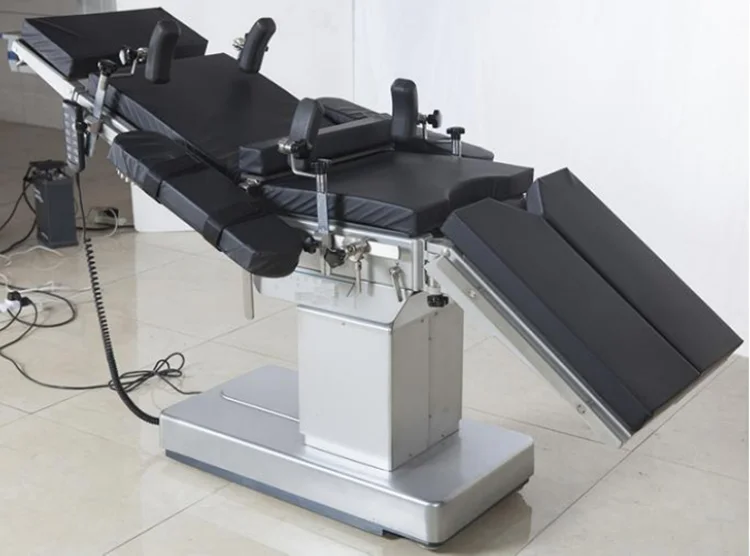

* This type electric operation table has advantages of beautiful appearance,convenient,labor-saving operation,safe and reliable use,has the advantage of smooth action,etc... The platform lifting,roll,tilt,before and after the lock is realized by the special motor,push-button.With the C type arm,no dead angle,parts can be disassembled,easy to use.
* Product is easy to operate,strong versatility,wide application ,material selection,workmanship excellent,quality reached the international level.

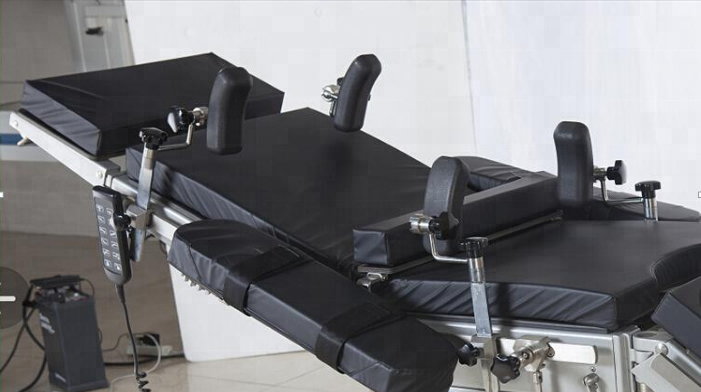

| *Head section:pneumatic auxiliary device for head plate,plate easy to operate. *Bed section:special composite material plate,X-ray high transmittance,good uniformity,meet the requirements of operation. |

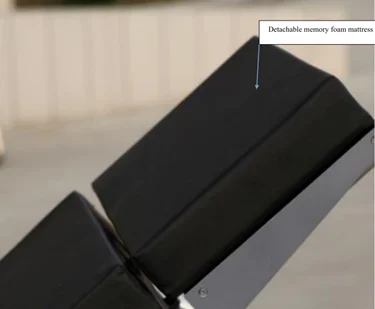

| *Mattress:forming a mattress,it adopts the international popular material,streamlined appearance. *Color operator:Design of smooth,ergonomic,holding comfort,integration of all control functions. | |
| *Logic is the self-locking function ,prevent intraoperative misoperation. *Bed:water proof sealing structure design unique,high-quality stainless steel,anti rust,guarantee the best disinfection requirements and anti-collision demand. |

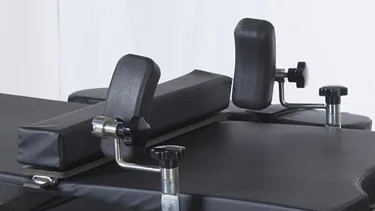

| *Electric brake:can be adjusted,in accordance with the conditions on the ground are locked,the bed does not appear to change in position,ensure the operation bed platform stability,security. *Standard size stainless steel edge rails:with a variety of accessories installation. | |

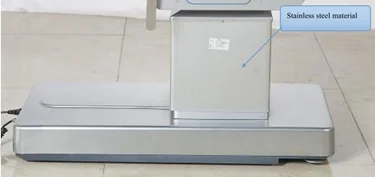

| *Separating board:removable and disassembly, suitable for obstetrics and Gynecology,Department of Urology operation use. *Base:thin base design,hidden castors,both to ensure enough ground contact,to ensure stable operation platform,but also can be the greatest degree of operation in the C-arm film. |

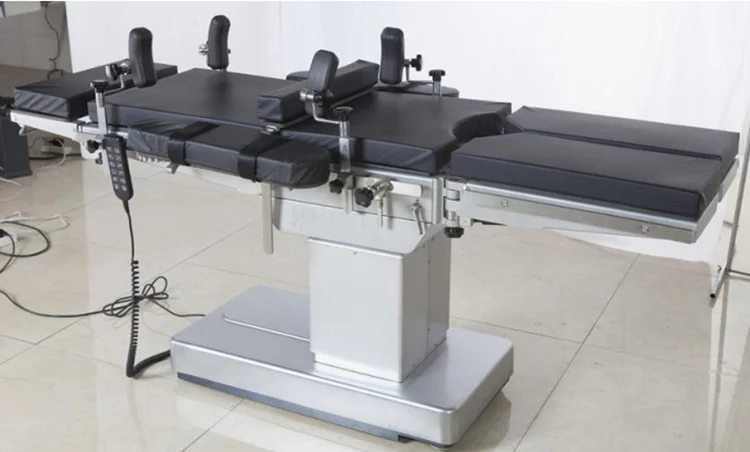

| Electric operating table in hospital operation room surgical OT table | |
| Table panel size | 2040*520mm |
| Height adjustable range | 850-1100mm |
| Trendelenburg & Reversed trendelenburg | ≥20° |
| Lateral Tilt | ≥19° |
| Head board fold upward | ≥40°detachable |
| Head board fold downward | ≥90°,detachable |
| Up and down range | 250mm |

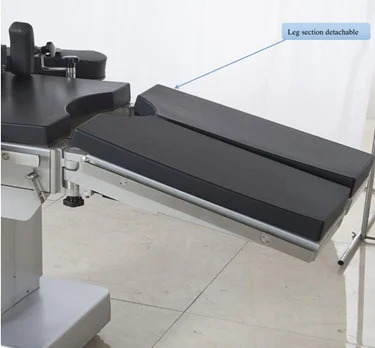

| Leg board fold downward | ≥90°,detachable |
| Leg board open | ≥90°,detachable |
| Back board fold upward | ≥75° |
| Back board fold downward | ≥25° |
| Left Tilt & Right Tilt | ≥18° |
| Kidney bridge elevation | ≥120mm |
| Translation moving | 300mm±20mm |

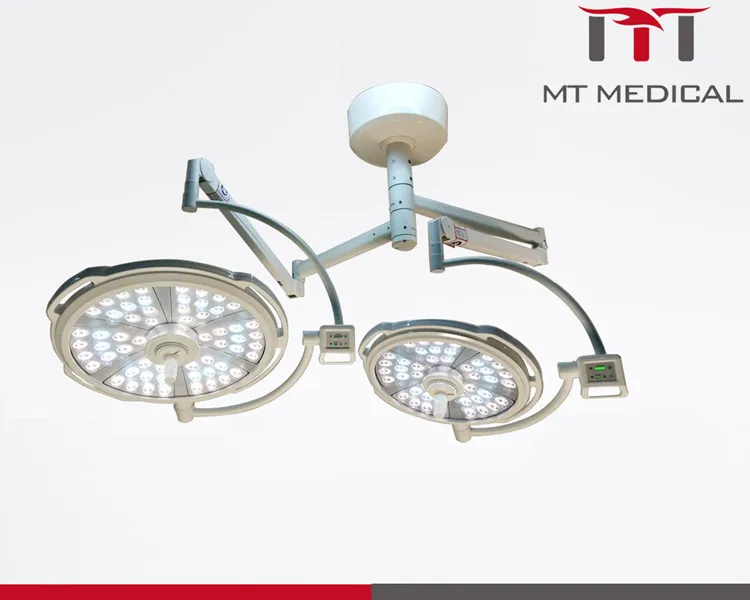

operation light

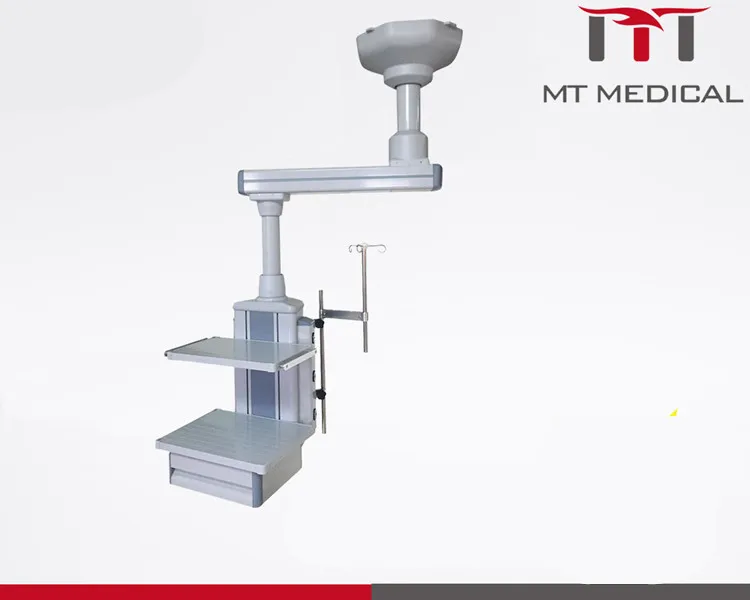

medical pendant
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures.
Previously, our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets.
The products were approved by CE,ISO13485.
Our after-sales team will resolve your problems in time within 24hours.
M-strive to technical innovation , T-guard life.
Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement.
MT MEDICAL do our best products and service for you.
