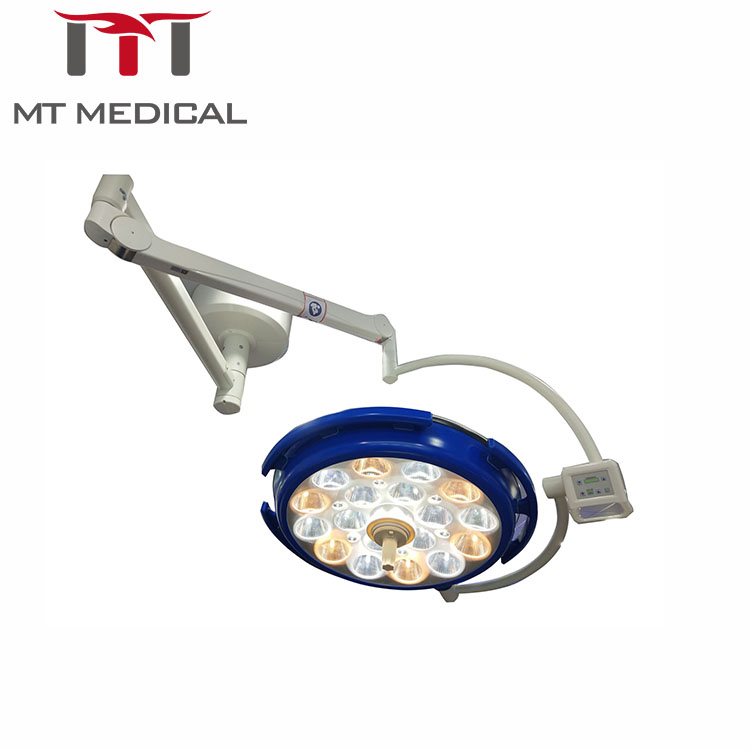

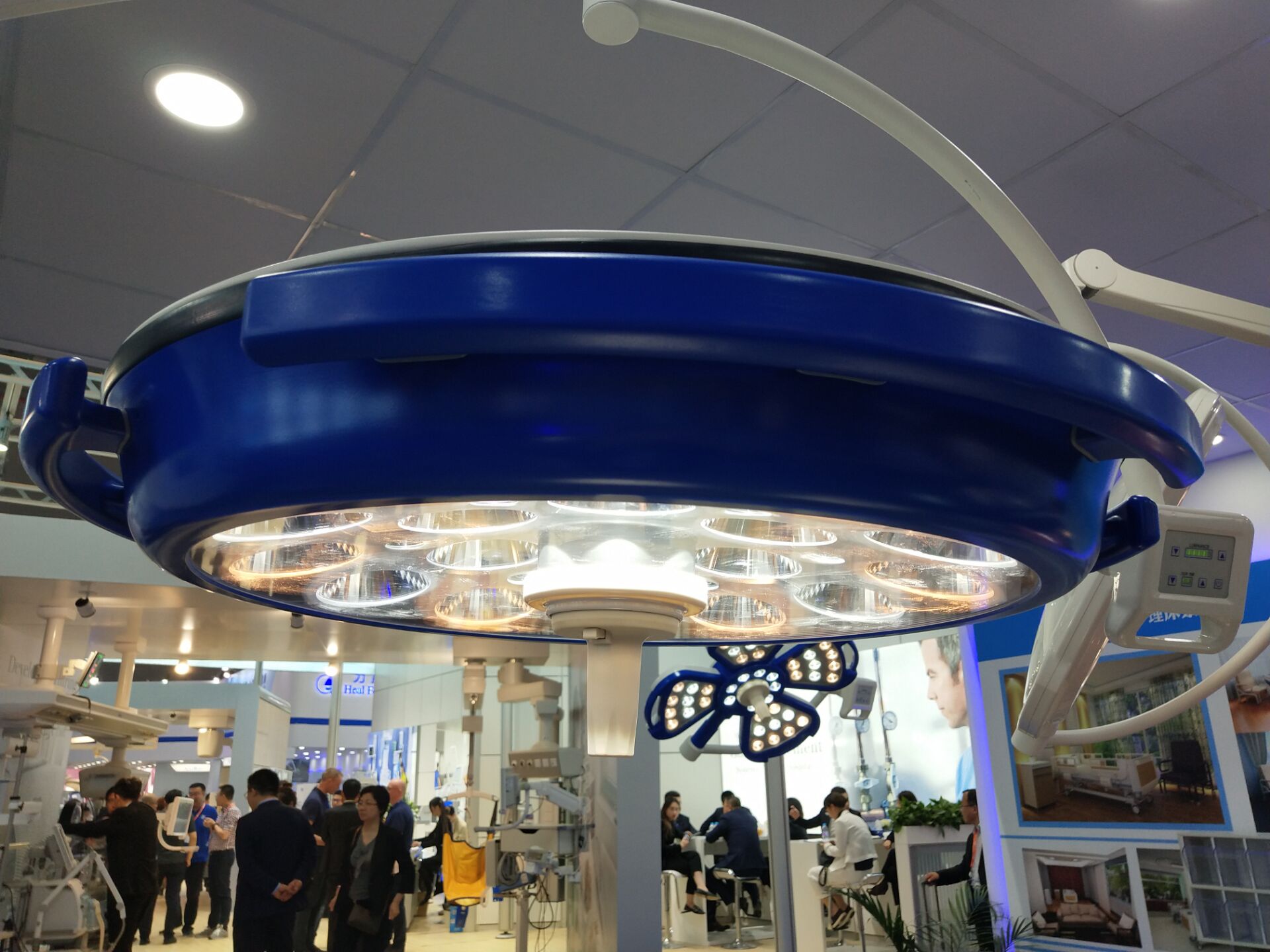

Operation Lamp
Are you building a hospital or Clinic now ?
Are you looking for OR & ICU room equipments and hospital furnitures with CE,FDA certificates ?
Do you want to get a one-stop solutions for your hospital or clinic ?
How about a supplier help you to solve all problems and leave you to sit back and relax ?
- Utilising the most advanced LED technology available.
- The MT MEDICAL YDE series of operating theatre lights have been designed to provide a high quality, shadowless beam with extremely low running costs.
- The new, slim, fully enclosed head with manul controls is a perfect LED lighting solution complementing all surgical room.
- LEDs (light emitting diodes) have been around for a long time. Recently this technology has become leading-edge in the field of lighting - a breakthrough technological solution to the inherent problems of the incandescent light bulb.
- We have taken the technology and developed it further to provide high definition lighting solutions with no infrared, low environmental impact, high brightness, low power consumption, no toxic chemicals and a long operating life.
| Single Dome LED Surgical Operation Lamp Price | |
| Technical Parameters | 700mm head and 500mm head |
| Product name | Operation lamp |
| Illuminance | 160000/140000Lux. |
| Color temperature | 3500K-5500K (± 500) |
| Ultraviolet light irradiance within40nm wave | 0.002W/M2 |
| Light Focus adjustment System | manual or electric or auto focus (Optional) |
| Light-adjusting mode | continuous adjusting light , no grade dimmer system |
| 50% Spot Diameter (D50) | 280 mm / 230 mm |
| 50% Spot Diameter (D50) | 150mm/120mm |
| Terperature at surgeon"s head | ≤ 2°C |
| CRI RA | 95 R9 :90 R13 :92 |
| Input Power | 85W / 65W |
| the adjusting range of Illumination% | 25~100 |
| Input power | 220W |
| Power of bulb (W) | 1W * 60N / 1W *45N |
| LEDs
> LEDs (light emitting diodes) have been around for a long time > Germany LEDs > Cold and Warm light source > We have taken the technology and developed it further to provide high definition lighting solutions with no infrared, low environmental impact, high brightness, low power consumption, no toxic chemicals and a long operating life. |
Adjustable Focus
> ABS focus cover > Manual focus, optional electric focus > Adjust the light focus size > Free disassembly and Sterilized | |
| Light Head Cover
> Aluminium alloy cover > Easy heat dissipation > Optional color |
Light Head Design
> The new, slim,fully enclosed head > Moveable handle | |
| Big Arm And Spring Light Arm
> Ceiling big rotating arm with Anti dust design > Spring light arm: copy light arm,360°rotation optional Germany light arm |
Controller
> Manual controller,Optional LCD Torch screen panel > Control the illuminance,color temperature and switch button | |
| Camera System
> Camera system is optional > camera, optional other brand > LCD display |
| By sea | Delivery from Qingdao,Shanghai or Ningbo seaport |
| By air | Departure from Shanghai Pudong Airport |
| By express | By TNT/DHL |
Our after-sales team will resolve your problems in time within 24hours.
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A.Offer door to door service;
B.We send you free parts by courier and technical guidance by video/call;
C.We support you free training
