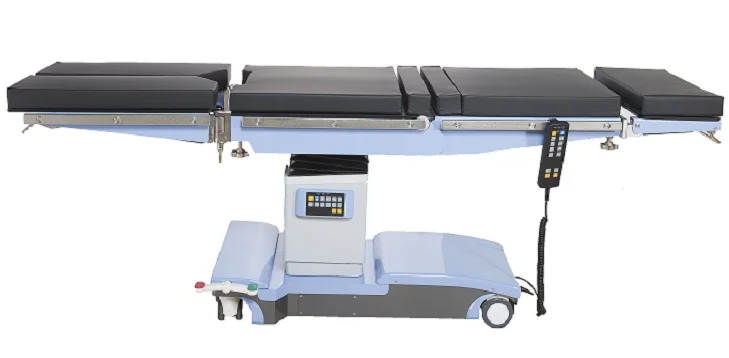

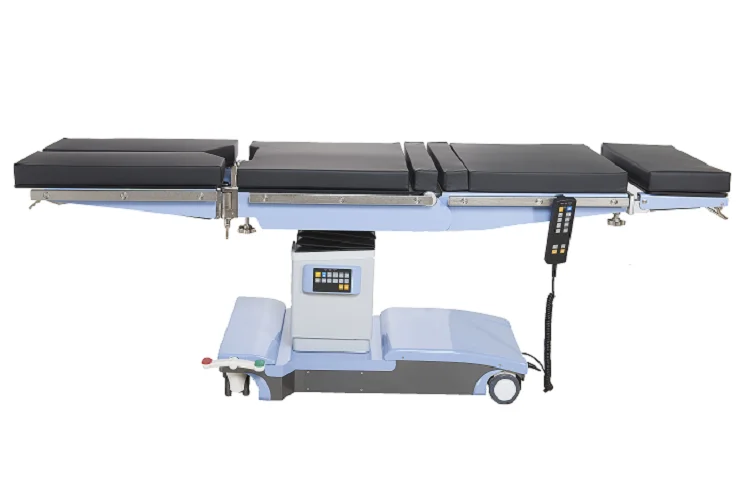

Hospital operating room electric control electronic operation table
Are you looking for Hight quality Electronic Operation Table ?
Are you afraid that you would buy the bad quality Electronic Operation Table and waste your money and time?
Do you feel it is difficult to choose one aliable supplier?
Why not stop and relax one second, send us an enquiry now if you read here
Electronic Operation Table Technical information
| Bed Size | 2100*550mm |
| Bed Height from Ground | 1000-650mm |
| Lifting Route | 350mm (electric) |
| Table Surface Longitudinal Mobile Route | 350mm (electric) |
| Leg/Head Tilt Angle | Head 25°/Leg Tilt 25° (Electric) |
| Left/Right Tilt Angle | 22° (Electric) |
| Back Section Angle | Raised : 70° Lower: 32° (Electric) |
| Leg Section Angle | Raised : 28° Lower: 90° (Manual) |
| Head Section Angle | Raised : 30° Lower: 90° (Manual) |
| Table X-Ray Attenuation Confficient | ≤0.76mmAL |
| Net Weight | 260kgs |
| Electric Hydraulic Orthopedic Operation Table Use best CHOAR-GER Hydraulic System, make the whole talbe more stable and Stong in Control, Providing more Functions like one key reset function(Reset all operation, save moire time "V" and revised "V", Good Performance in Operation |

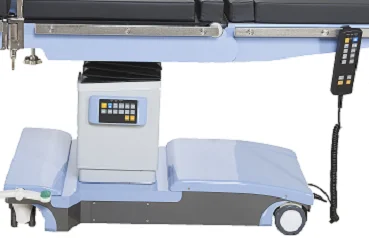

| Double Controller system: Remote Controller and Base Touch-Press Controller, Doctor can operate and use the table more easily | |
| foot brake | 125mm Diameter Casters |

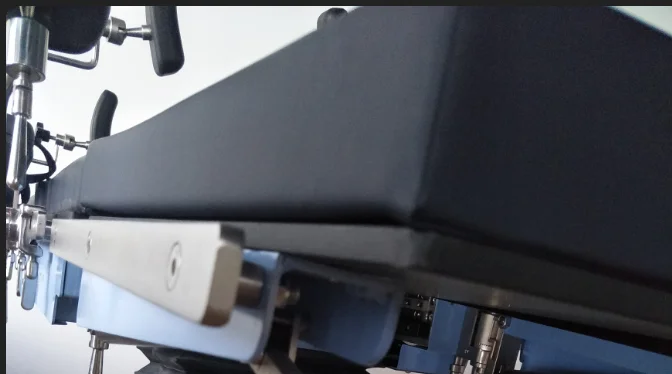

| 1.Mattress:Detachable High Memory Foam, your Patient will be much Comfortable 2.Base:ABS Plastic 3.Carbon fiber for C-arm: Protect doctor and Patients from X-RAY |
|
Not Reach Ur Request?
1.If you are building a new hospital, we can offer your solutions of OR and ICU room;
2.Our sales team give you the quotation and answer your any questions and doubts about products;
3.You are welcome to visit our factory at any time;
4.we will offer you the solutions of quality problems within 24hours;
5.our after-sales service:
Warranty: 1-2years due to different products, and lifetime maintaining.
A. Engineer goes to your hospital and Provide on site customer training and guide,
B.We send the free parts to you by courier and give you technical guidance via online video,
C.We support you free training of products.
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures.
In 1998, Our R&D team developed electric operation table and hospital bed,medical cabinet,and so on;
In 2011,we developed first LED operation lamp and thenceforward, we develop other different of LED operation lamp,examination light one after another;
In 2012,patient monitor is sold on line;
In 2013,we develop first carbon fibre operation table,it is newest material for medical industry;
Previously, our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets.
In 2016;we start to export our medical equipment to international markets by ourselves.
The products were approved by CE,ISO13485.
We build a sales team with 10 employee and a after-sales service team with 5 employee.
Our after-sales team will resolve your problems in time within 24hours.
M-strive to technical innovation , T-guard life.
Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement.
MT MEDICAL do our best products and service for you.
Success Case
Exhibition
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There"s no minimum quantity
