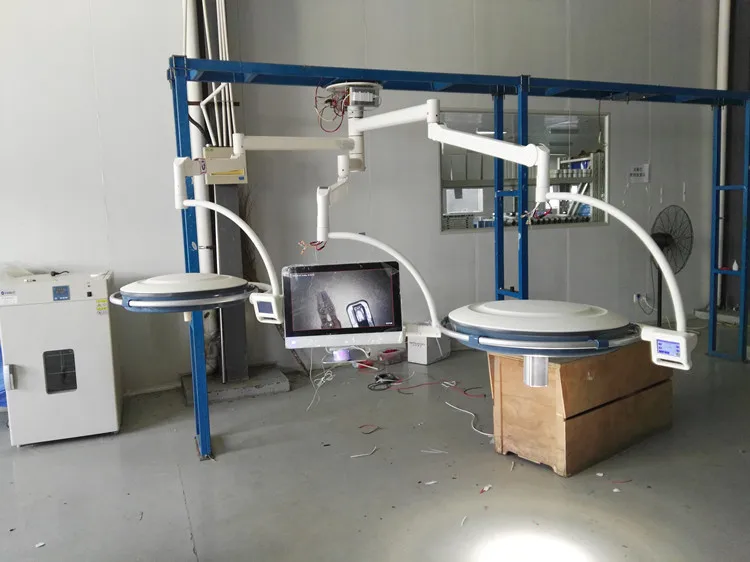

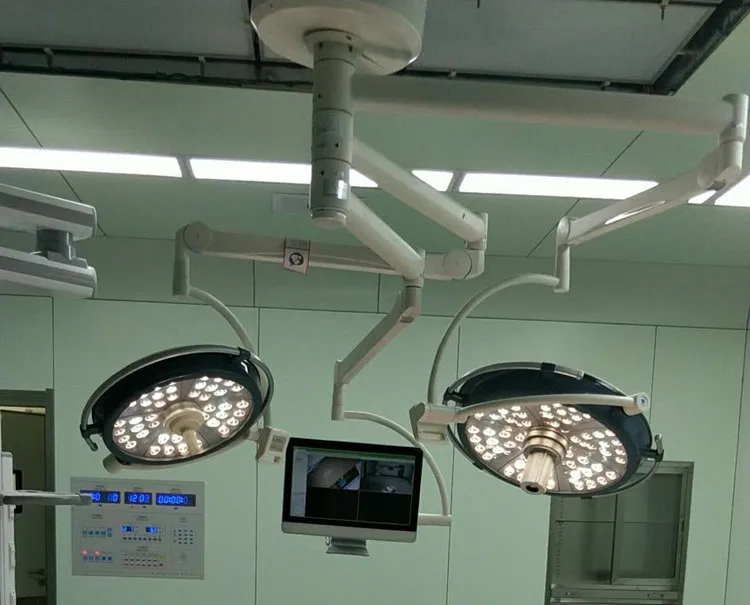

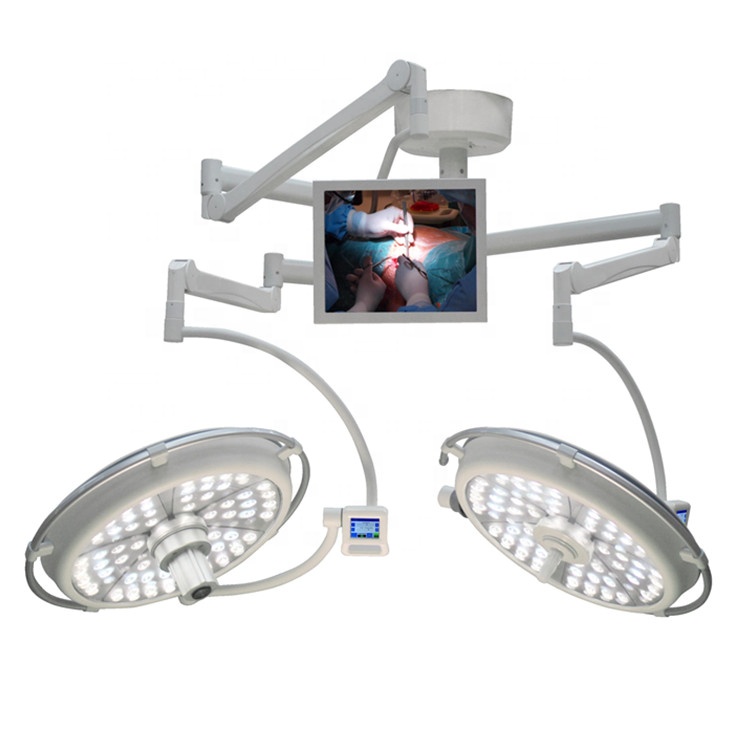

operating room led light dual head with camera
Are you finding high quality medical equipment with CE, ISO and FDA?
Are you finding a professional manufacturer can offer you high quality after sales service?
What about a person can help you solve with everything and make you sit down and relax?
HD camera system:
• 3.3 Mega Pixel Quality with Fantastic 20x Optical Enlargement
• 1080p/1080i Resolution with a high contrast ratio of 800:01:00
• Multiple signal outputs including HDMI and DVI
• Included in this system is a superb visual display that can be attached as an independent pendulum arm in the ceiling mount version
• The 19 inch TFT LCD touch screen display has a resolution of 1024 x 768, a contrast ratio of 800:1 and 262K true colour features.
HD Camera Features:
• 1.8v FPGA processor with a 2 GB p/s Transmission Rate
• 20x Optical Enlargement
• 3.3 Mega Pixel Quality
• Image Sensor: 1/2.8 CMOS
• Adopts Sony VISCA and PELCO Protocols
• Horizontal Resolution: 1080p / 1080i
• F = 1.6-3.5, f3.5-85
• Horizontal viewing angle: 3.5 – 55.4
• View Angle (H/V): 160/160
• Minimum Object Distance: 5mm
• Dot pitch (H*V): 0.297*0.297
• Contrast Ratio: 800:01:00
• Video Signal Output: HD-SDI, YUV, HDMI, DVI
• Minimum Illumination: 0.04 Lux / ICR
• SNR: 50db
• Operating Temperature: 0-40°C
• Response Time: <8ms
• Digital Input: SDI
• Power Input: 12v DC
• Screen Display Features:

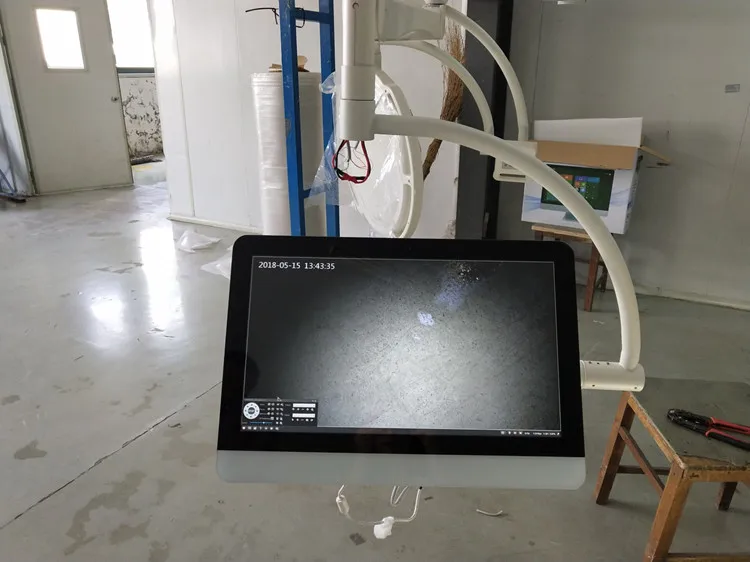

• Screen: 19 inch TFT-LCD touch screen
• Resolution ratio: 1024 x 768
• Brightness: 350ccd/m2
• Contrast ratio: 800:1
• True colour: 262K
• MTBF: 50,000 hours
• Viewing Angle (H/V): 140/120
• Material: High intensity aluminium magnesium alloy
• Input: 12V/5A
• Ingress Protection: IP65 (waterproofing grade)
• Supports USB
• High-precision, touch screen (resistance-type)

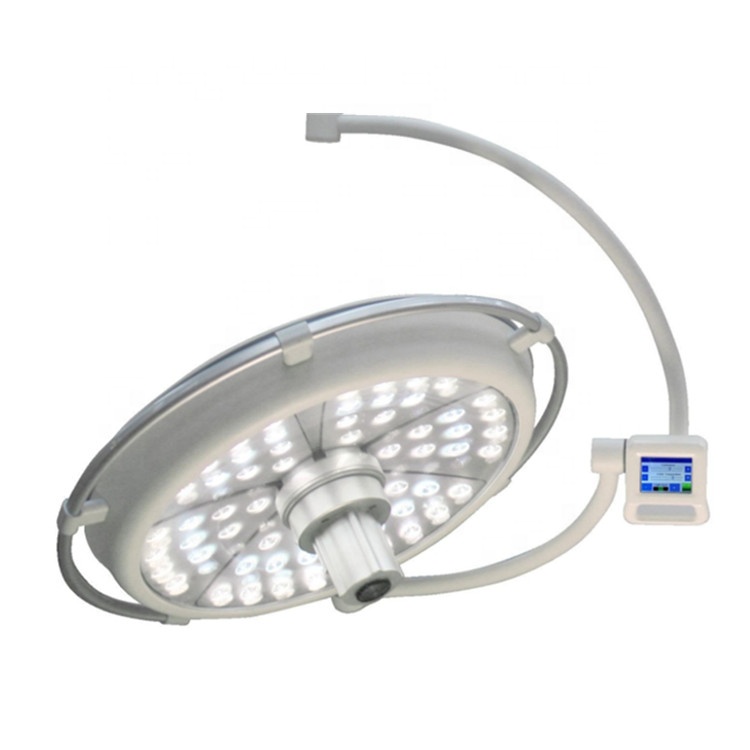

Technical Parameters | 700/500 LED head |
Illuminance | 160000/140000Lux. |
Color temperature | 3500K-5500K (± 500) |
Ultraviolet light irradiance within40nm wave length | 0.002W/M2 |
Light Focus adjustment System | manual or electric or auto focus (Optional) |
Light-adjusting mode | continuous adjusting light , no grade dimmer system |
50% Spot Diameter (D50) | 280cm/230 mm |
50% Spot Diameter (D50) | 150cm/120mm |
Terperature at surgeon"s head | ≤ 2°C |
CRI RA | 95 R9 :90 R13 :92 |
Input Power | 85W/65W |
the adjusting range of Illumination% | 25~100 |
Input power | 220W |
Power of bulb (W) | 1W*60N/1W *45N |
Bulb average life | 100000h |
