Overview
Quick Details
- Brand Name:
- MT-medical
- Model Number:
- DST-700G
- Place of Origin:
- Anhui, China
- Instrument classification:
- Class I
- Type:
- Operating Table
- Power Source:
- Electricity
- Bed panel size (carbon fibre):
- (2400*530)±10mm
- Max. height:
- 1000±20mm
- Min. height:
- 700±20mm
- Route of longitudinal movement:
- 280±20mm (Electric)
- Head tilt angle:
- 25±2°(Electric)
- Foot tilt angle:
- 25±2°(Electric)
- Left side learning angle:
- 21±2°(Electric)
- Right side learning angle:
- 21±2°(Electric)
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- wooden case
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Acres) 1 - 1 2 - 5 >5 Est. Time(days) 5 15 To be negotiated
product name

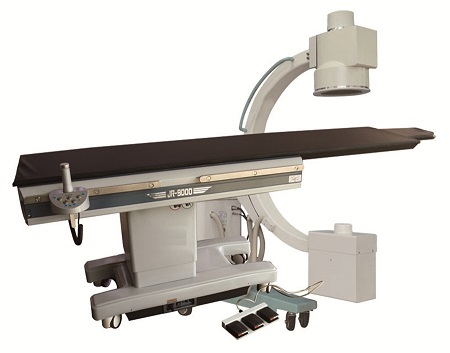

luxury endoscopic operation table imaging orthopedic operation table
Detailed Images
parameters
| Faceplate size(Carbon fiber material): | ( 2400*530 )±10mm |
| Ground height( from the ground to the top of table, exclude mat): | Minimum height:(700±20)mm Maximum height: (1000±20)mm |
| Lift: | (300±20)mm electric; |
| Longitudinal moving distance of bed surface: | (280±20)mm electric; |
| Head and foot tilt: | Head section angle:25°±2°( electric); Leg section angle: 25°±2°(electric); |
| Lateral tilt: | left: 21°±2°(electric) & right: 21°±2°(electric); |
| Back section: | up: 65°±2°(electric) & down: 20°±2°(electric); |
| Leg section: | up:35°±5°(manual) & down:90°±5°(manual); |
| Head section: | up: 45°±5°(manual) & down: 90°±5°(manual); |
| With one key reset function, "V" and revised "V"; | |
| X-ray absorption coefficient( X ray attenuation coefficient of bed plate, optional accessory): | ≤0.44mmAL; |
| Table body locking: | electric; |
| Power: | AC: 220V 50Hz 300VA; DC:24V(Panasonic acid battery); |
| Net Weight | 300kg |
