SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
Our factory is specializing in the production of signal light,signal lamp,indicator lamp,indicator light,indicating lamp,indicating light,Warning Light,warning lamp,pilot lamp,pilot light,alarm lamp,call lamp and other types of led light.
Technical Data
1.Power frequency withstand voltage:2.5KV/1min(effective AC value)
2.Insulation resistance:≥2M
3.Allowable voltage fluctuation:+-20%
4.Continuous operating life:≥30000h
5.Brightness of Led Indicator Lamp 220V :≥100cd/m2
6.CTI of Led Indicator Lamp 220V :≥100
7.Protection degree of the head IP65,IP67 is available on request
8.Applying frequency:AC50-60Hz
 | Type | Color | light voltage |
Circuit breaker position indicator | red/green/yellow /blue/white | Can be customized |
Our factory is specializing in the production of signal light,signal lamp,indicator lamp,indicator light,indicating lamp,indicating light,Warning Light,warning lamp,pilot lamp,pilot light,alarm lamp,call lamp and other types of led light.
Working Condition
- Ambient temperature:-25℃-+55℃
- Relative humidity:≤98%
- Normally workable when vibration frequency is 2-80Hz with acceletation of 0.7g
- Pollution degree of Led Indicator Lamp 220V is 3
- Installation group of Led Indicator Lamp 220V is Ⅲ
- "TH" marked can work at damp-heat enviroment
Our factory is specializing in the production of signal light,signal lamp,indicator lamp,indicator light,indicating lamp,indicating light,Warning Light,warning lamp,pilot lamp,pilot light,alarm lamp,call lamp and other types of led light.

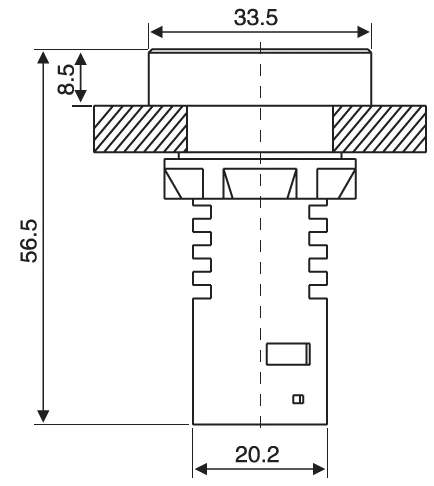

Overall Dimension
Our factory is specializing in the production of signal light,signal lamp,indicator lamp,indicator light,indicating lamp,indicating light,Warning Light,warning lamp,pilot lamp,pilot light,alarm lamp,call lamp and other types of led light.

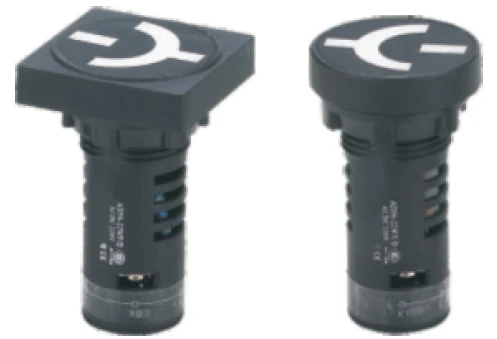

Product Series
Remarks
1.The connection of A,C,E type is solder-terminal,the connection of B,D,F type is screw terminal; "S" is ultra-short type.According to the voltage,to offer the counter products if no specification.
2. All products use pure high illuminant LED light source.
3. Please clearly notice the specification,anti-interference(40V) and anti surge.
4. The material for body of 16mm indicator lamp is fire-retardant reinforced nylon.
5. The material of lamp cover is polycarbonate plastics.
6. The indicator lamp with attarctive shape,bright in color,excellent in cushion effect.
Other Types
For more other types,pls contact me.
Type Meaning
Certificates
SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
SAIPWELL
SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
SAIPWELL is a famous enterprise specialized in design, production and sales of electric equipments.Had factory located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
SAIPWELL, whose office located in Shanghai, has Five specialized branches, over 300 specialized cooperative partners. SAIPWELL, an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
Now SAIPWELL has five design and production bases in Hong Kong, Taiwan, Singapore, Turkey and Wenzhou(China Mailand), 28 sales organizations in the world and more than 50 holding member enterprises.
SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
OEM-ODM Service Offered
1.Material,size and other requirements of Led Indicator Lamp 220V can be customized.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solve the problem with you during using our products.
5.You can visit our website: www.saipwell.com
SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
Payment Methods
We accept 30% payment in advance, the balance payment before shipping.
We also accept L/C according to the order amount
We can accept the payment by T/T, Western Union, Paypal, Private Account, Escrow,Cash,and others
SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
Packing And Shipment
We can ship the goods for you by following ways:
1.By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package and so on.
2. By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Urumqi, Beijing.
3. By Sea: We can offer you FOB Ningbo, FOB Shanghai, FOB Shenzhen, FOB Urumqi, FOB XiaMen, FOB Beijing.
4. We also can send to your forwarder or agent in China, who can arrange shipment for you.
SAIP/SAIPWELL Quick offer Signal Lamp Indicator Lamp Electric Waterproof Led Indicator Lamp 220V
