SAIP/SAIPWELL New Product Ventilation Fan DC 12V Fan 12V DC Car Fan China Manufacture
12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan

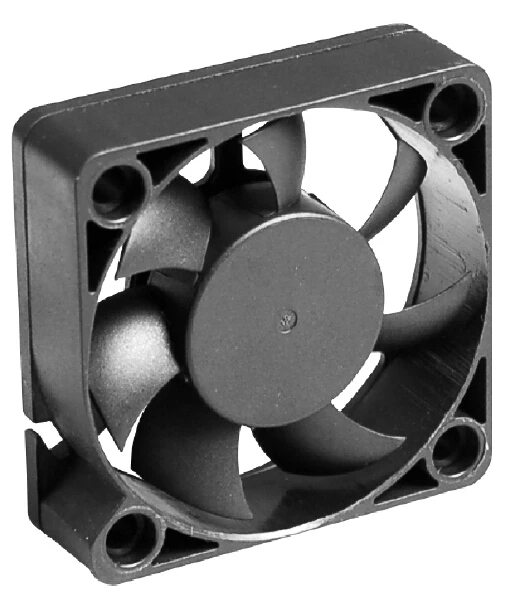

♦ General Specifiction of 12V DC Car Fan
- Size: 50*50*15mm(1.97*1.97*0.59in)
- Frame/Impeller:Reinforced plastic PBT
- Bearings:Ball Bearing & Sleeve Bearing
- Life Expectancy:50000 hours at 20℃-Ball, 30000 hours at 20℃-Sleeve
- Weight:25g
- Led wires:ULtype (+)red (-)black
- Operating temperature:-10℃ to 70℃,35% to 85%RH
- Storage temperature:-40℃ to 80℃,30% to 85%RH
SAIP/SAIPWELL New Product Ventilation Fan DC 12V Fan 12V DC Car Fan China Manufacture
12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan

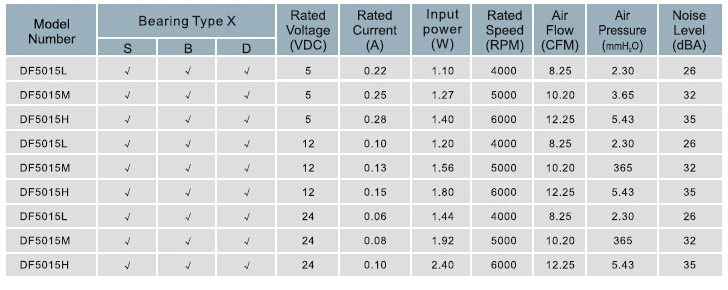

♦ Specific Parameters of 12V DC Car Fan
♦ Dimensions of 12V DC Car Fan

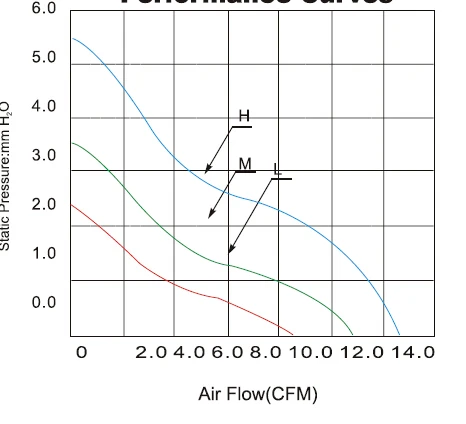

♦ Air Flow VS Air Pressure of 12V DC Car Fan
♦ This kind of 12V DC Car Fan is mainly used for:
ventilation in auto-control devices, electronic equipment, medical equipment, computers, power supplier equipment, welder, packing and printing equipment, satelites communication,CNC machinery, and office automation equipment.
SAIP/SAIPWELL New Product Ventilation Fan DC 12V Fan 12V DC Car Fan China Manufacture
12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan
Our factory produces AC-axial Fan and DC-axial fan and other electrical ventilation cooling equipments.The ball bearing for 12V DC Car Fan and sleeve for 12V DC Car Fan are available.
| Type | Dimensions | Weight | Bearings |
| DF2507 | 25*25*07mm | 6g | Ball Bearing & Sleeve Bearing |
| DF2510 | 25*25*10mm | 7g | |
| DF3006 | 30*30*06mm | 6g | |
| DF3010 | 30*30*10mm | 6g | |
| DF3510 | 35*35*10mm | 10g | |
| DF4010 | 40*40*10mm | 15g | |
| DF4020 | 40*40*20mm | 25g | |
| DF4015 | 40*40*15mm | 27g | |
| DF4028 | 40*40*28mm | 42g | Ball Bearing |
| DF4510 | 45*45*10mm | 17g | |
| DF5010 | 50*50*10mm | 19g | Ball Bearing & Sleeve Bearing |
| DF5015 | 50*50*15mm | 25g | |
| CF8025 | 80*80*25mm | 225g | |
| CF8038 | 80*80*38mm | 350g | |
| CF9225 | 92*92*25mm | 260g | |
| CF10825 | 108*108*25mm | 260g | |
| CF12025 | 120*120*25mm | 350g | |
| CF12038 | 120*120*38mm | 505g | |
| CF12038T | 120*120*38mm | 530g | |
| CF15055 | 150*150*55mm | 1100g | |
| CF17251 | 172*172*51mm | 898g | |
| CF15050 | 150*150*50mm | 898g | |
| CF22580 | 225*225*80mm | 2420g | |
| CF28080 | 280*280*80mm | 2900g | |
| Also supply other types and sizes | |||
SAIP/SAIPWELL New Product Ventilation Fan DC 12V Fan 12V DC Car Fan China Manufacture
12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan
SAIPWELL is a famous enterprise specialized in design, production and sales of electric equipments.Had factory located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
SAIPWELL, whose office located in Shanghai, has Five specialized branches, over 300 specialized cooperative partners. SAIPWELL, an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
Now SAIPWELL has five design and production bases in Hong Kong, Taiwan, Singapore, Turkey and Wenzhou(China Mailand), 28 sales organizations in the world and more than 50 holding member enterprises.
Business Type:Manufacture
Main Products: low-voltage apparatus, welding equipment, instrument and meter, photoelectron, electrical products for construction ,automobile apparatus and industrial automation.
SAIP/SAIPWELL New Product Ventilation Fan DC 12V Fan 12V DC Car Fan China Manufacture
12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan 12V DC Car Fan
We can design and produce the 12V DC Car Fan according to your need.Give us your required materials,size,usage and other useful information.Or send us your desired sample,we will try our best to give you the earliest reply and the best service.We wish to establish a long cooperation with our customers.
